Begin by verifying the main conductors that supply electricity to the recreational vehicle. Identify the live, neutral, and ground lines and confirm their condition with a voltage tester before making any connections.
Ensure all terminals are clean and securely tightened. Loose screws or corroded contacts can cause overheating and intermittent power loss, which may damage appliances or the vehicle’s electrical system.
Label each line and document connections before energizing the circuit. This practice helps prevent errors, simplifies future maintenance, and ensures consistent operation during extended use.
Test the circuit under load after connecting all lines. Use a multimeter to verify proper voltage at each terminal and check for voltage drops that could indicate resistance or poor contact points.

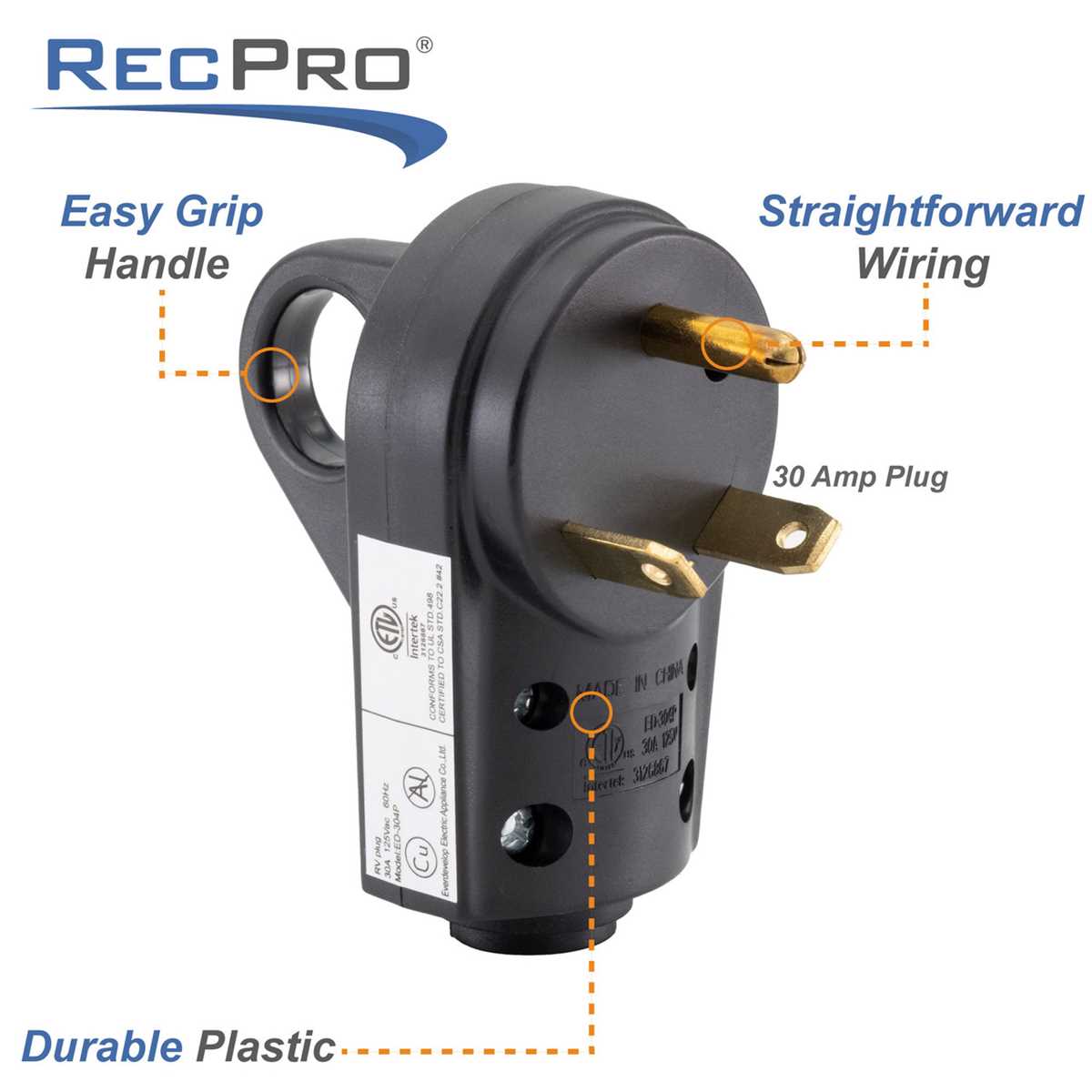

Step by Step Guide to Connecting a 30 Current RV Power Outlet Safely
Start by shutting off the main breaker before handling any conductors. Identify the live, neutral, and ground terminals on the receptacle and strip insulation to expose ¾ inch of copper for secure contact. Attach each line to the corresponding screw, ensuring the live conductor is always connected to the brass terminal and the neutral to the silver terminal.
Tighten all screws firmly and inspect each connection for loose strands or corrosion. After assembling the outlet, restore power and measure voltage across the terminals with a multimeter. Proper connections should read approximately 120 volts between live and neutral and 120 volts between live and ground, with minimal voltage drop under load.
Identifying Hot Neutral and Ground Conductors for RV Connections
Always start by labeling each conductor before connecting to any receptacle. Use a color code: black or red for live, white for neutral, and green or bare for the grounding line. Verify each line with a multimeter to confirm proper voltage and continuity before making connections.
Follow a systematic approach to prevent mistakes. Check each cord section separately and ensure insulation is intact without cuts or abrasions. Loose strands on copper conductors should be twisted and straightened for solid attachment to terminals.
Use a multimeter to measure voltage between the live and neutral conductors, which should register approximately 120 volts. Between live and ground, the reading should be identical, while neutral to ground should read near zero. These tests confirm correct identification of each line before installation.
- Black or red line: feeds current to the RV panel.
- White line: returns current back to the source.
- Green or bare line: connects to chassis for safety grounding.
Regular inspection of connectors is recommended. Over time, oxidation or vibration may loosen screws, leading to arcing or heat buildup. Tighten all connections and replace corroded terminals to maintain a safe and reliable power feed for your RV.
