Align each conductor carefully according to the T568B color sequence to prevent signal interference and ensure consistent data transfer. Maintaining precise order of the twisted pairs reduces cross-talk and minimizes packet loss.
Trim insulation evenly and insert wires fully into the modular end so that each metal contact grips the conductor securely. Incomplete insertion can lead to intermittent connectivity and frequent troubleshooting.
Use a quality crimping tool to secure the connector and apply steady pressure to avoid bending or breaking pins. Checking the alignment before compression saves time and prevents the need for re-termination.
Test the assembled cable with a continuity tester to verify correct pin-to-pin connections. This step identifies miswires, open circuits, or shorts before deployment, ensuring reliable network performance.

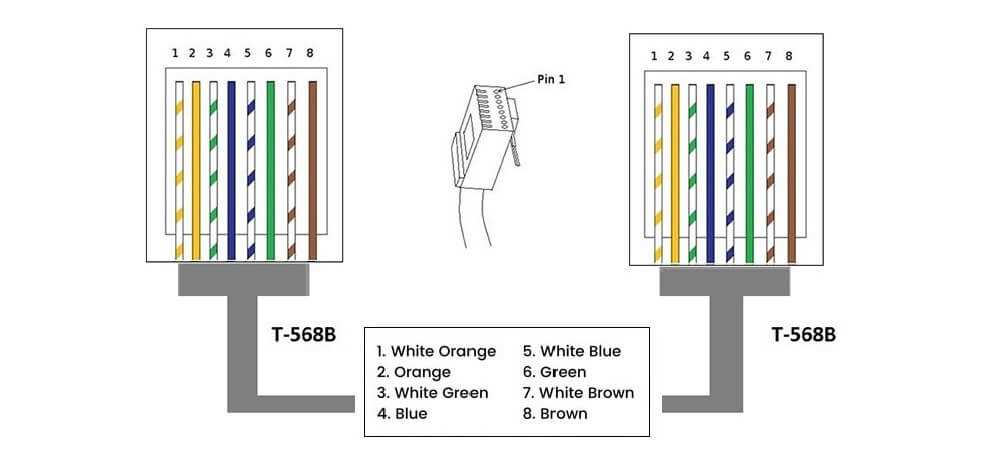

Connector Pin Layout and Color Sequence
Follow the T568B sequence for each conductor to maintain proper signal flow and prevent interference. Insert wires fully into the modular end so that each metal contact touches the copper core, ensuring stable connections across all pairs.
Trim twisted pairs carefully to align with the connector slots without leaving excess length. Uneven cuts can cause misalignment or partial contacts, which may result in intermittent network issues.
- White/Orange
- Orange
- White/Green
- Blue
- White/Blue
- Green
- White/Brown
- Brown
After insertion, secure the connector using a ratchet-style crimper and check each pin visually. Applying consistent pressure ensures all contacts engage evenly without bending or deforming the metal contacts.
Verify the assembly with a continuity tester before connecting to network devices. This step confirms that every pair transmits correctly and highlights any misalignment or shorts, preventing future troubleshooting delays.
Standard Color Codes for Network Cables
Follow the T568B sequence for consistent pin-to-pin connections. The pairs should be arranged as follows: white with orange stripe, solid orange, white with green stripe, solid blue, white with blue stripe, solid green, white with brown stripe, and solid brown. Maintaining this order prevents cross-talk and ensures stable data transmission across all eight pins.
Check each conductor visually before insertion to confirm the correct sequence and avoid reversed or crossed lines. Using a color-coded guide or pre-marked cables helps reduce errors, while testing with a continuity checker verifies that every pair is connected accurately and ready for network use.
