Ensure the main power supply is disconnected before attempting any modifications to the front illumination assembly. This prevents shorts and protects sensitive components.
Identify the relay terminals accurately by checking the color codes on the insulation sleeves. Typically, red denotes power input, yellow controls the low filament, and blue manages the high filament.
Verify fuse ratings against the manufacturer’s specifications. Using a fuse with the correct amperage ensures protection of both the bulbs and the control switches from overcurrent conditions.
Maintain secure connections using proper crimping techniques. Loose contacts can lead to flickering, voltage drops, and premature filament burnout in the illumination units.
Label each connector before disassembly. This reduces the chance of misrouting wires during reassembly and ensures the low and high beams operate independently and reliably.

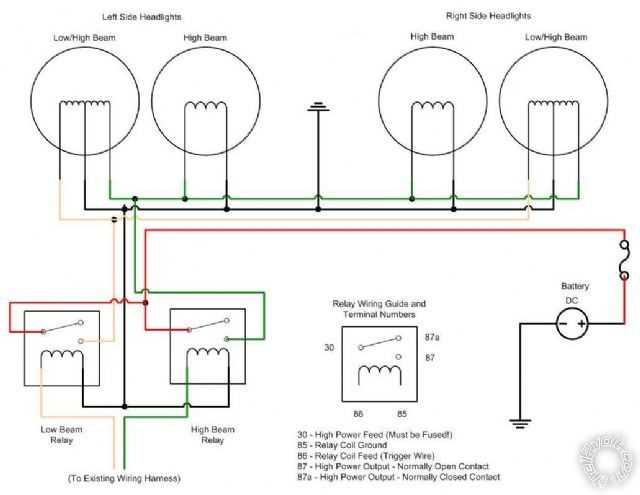

Understanding Headlight Relay and Fuse Integration
Always check the relay terminals for continuity before installation. The common configuration includes a power input, switched output, and a control coil. Ensure the coil receives the correct voltage to activate the switching contacts effectively.
Fuse selection must match the load requirements. For standard 55W filaments, a 10A fuse is typically sufficient. Using an underrated fuse causes repeated blows, while an overrated fuse risks overheating and component damage.
Position relays close to the power source to reduce voltage drop and improve response time. Secure mounting also prevents vibration-related failures that could interrupt illumination during operation.
Integrate fuses in accessible locations to simplify maintenance. Inline fuses between the battery and relay terminals provide protection for both low and high filament branches, ensuring safe operation under transient overloads.
Connecting High and Low Beam Filaments Correctly
Identify each filament lead before connecting. High-intensity and low-intensity filaments usually have distinct terminal positions and markings. Verify polarity where applicable to avoid uneven illumination or premature filament wear.
Use separate relay channels for each intensity to prevent voltage drop and ensure consistent brightness. A direct connection through a shared switch can cause flickering or dim operation under load.
Secure connections with properly rated connectors. Crimped or soldered terminals reduce resistance and prevent heat buildup. Loose contacts are a common cause of intermittent lighting and accelerated filament failure.
Test each beam individually after connection. Apply battery voltage briefly and confirm that the high-intensity and low-intensity filaments illuminate correctly without cross-activation. Adjust terminals if necessary to maintain proper operation.
Testing Headlight Operation and Troubleshooting Failures
Check voltage at each terminal before assuming a component is faulty. Use a multimeter to confirm battery output reaches the relay, switch, and bulb connectors. Voltage below 12 volts indicates loose connections or corroded contacts.
Inspect all fuses and relays systematically. Remove each fuse and test continuity with a multimeter. Swap relays with known working units to isolate any non-responsive channels.
Test filaments individually by applying a controlled 12-volt source to each lead. Observe brightness levels and compare to manufacturer specifications. Weak illumination may indicate filament degradation or internal resistance in connectors.
- Check for grounding issues: ensure chassis and negative terminals are clean and tight.
- Verify switch operation: measure voltage drop across contacts while actuating the control.
- Inspect wiring harness for broken strands or melted insulation.
Document each test result to track recurring failures. This helps identify intermittent faults that may not appear during a single inspection session. Pay attention to heat damage near relays or connectors.
Perform a final operational test by turning on low and high beams sequentially while monitoring amperage. Unexpected current draw can reveal short circuits or misconnected leads, which should be corrected immediately to prevent component burnout.
