Position the enclosure close to the amplifier terminals for minimal signal loss. Use heavy-gauge conductors, ideally 12 AWG or thicker, to maintain peak current flow and reduce voltage drop over longer distances.
Match impedance carefully between the speaker unit and power module. Incorrect load alignment can trigger clipping, overheating, or diminished output. Parallel or series arrangements should be calculated based on the rated ohms of each component.
Secure terminals with quality connectors to prevent intermittent contact. Crimped or soldered lugs outperform bare wire connections, ensuring stable low-frequency reproduction and protecting sensitive electronics from transient spikes.
Route signal lines away from power cables to minimize electromagnetic interference. Twisting the leads can further reduce noise, preserving clarity in deep bass tones and preventing hum from alternating current sources.
Test with a conservative gain before reaching maximum output. Gradual adjustment allows verification of thermal limits and prevents early failure of transducers or the power stage.

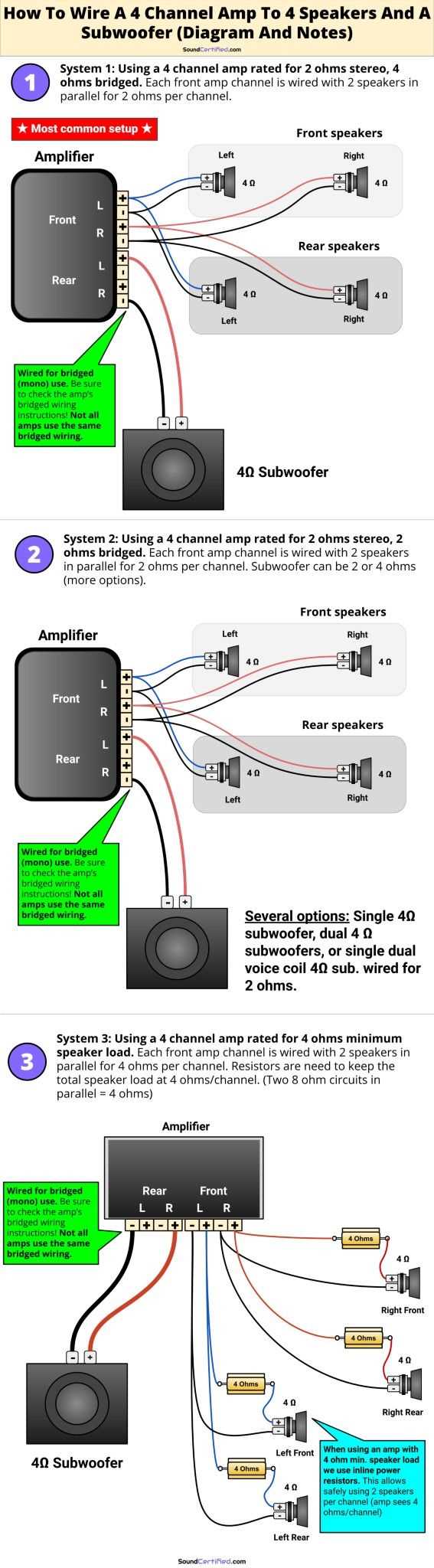

Subwoofer and Amp Wiring Diagram
Connect the low-frequency driver directly to the power module terminals using 12-gauge stranded conductors for runs under 10 feet; ensure polarity matches positive to positive and negative to negative to prevent phase cancellation.
For dual-voice coil units, configure in parallel for 2-ohm load or series for 8-ohm load, depending on the amplifier’s stable impedance. This prevents overheating and preserves clean bass reproduction without distortion.
Route signal leads away from high-current lines to avoid magnetic interference. Twisting the left and right leads together reduces hum. Secure terminals with a crimped ring connector and tighten to manufacturer torque specifications.
Fuse the main power line within 18 inches of the battery. Use an ANL or AGU-rated fuse matching the module’s RMS output. This protects wiring from overcurrent and prevents potential fire hazards during sudden voltage spikes.
For optimal enclosure integration, measure impedance at the terminals before sealing. Adjust internal bridging if necessary to balance output between multiple drivers, ensuring uniform sound pressure and avoiding overloading the electronics.
Choosing the Right Gauge Wire for Your Subwoofer Setup
Use 12-gauge conductors for systems drawing up to 100 watts RMS and under 15 feet of cable length. For setups exceeding 200 watts RMS or longer runs above 20 feet, upgrade to 10-gauge to prevent voltage drops and overheating. Never rely on 14-gauge for heavy-duty enclosures; losses become significant, reducing punch and clarity.
Material choice matters: pure oxygen-free copper ensures minimal resistance, while copper-clad aluminum may introduce unwanted warmth in bass frequencies. Shielded cables are unnecessary unless the conductor runs near noisy electrical sources. For dual-driver enclosures, calculate total load by adding impedance values to determine correct gauge for parallel or series connections.
Connector Quality and Routing
Crimped terminals provide better current transfer than twist-on ends. Keep lengths short, route away from high-current lines, and avoid sharp bends to maintain signal integrity. Even small kinks can generate heat spots under heavy loads, diminishing dynamic response and potentially stressing internal components.
