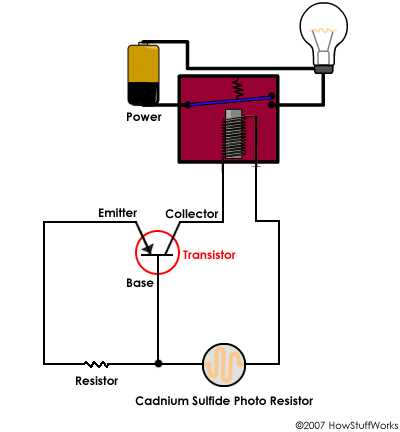

Use a photoresistor or light-sensitive switch to trigger the energy flow at dusk and cutoff at dawn. Connect the sensor directly to the relay input to prevent overload and reduce manual intervention.
Ensure all conductors are rated for 220V or your local supply voltage. The positive and negative lines must be clearly marked to avoid short circuits. Shield exposed connectors with heat shrink tubing for safety.
Include a timing module if gradual activation is required. This allows the lamps to power on with a short delay, minimizing inrush current and extending the lifespan of the bulbs or LEDs.
Verify grounding and neutral connections before energizing. Improper grounding can cause flickering or sensor misbehavior, and may also create hazards for maintenance personnel.

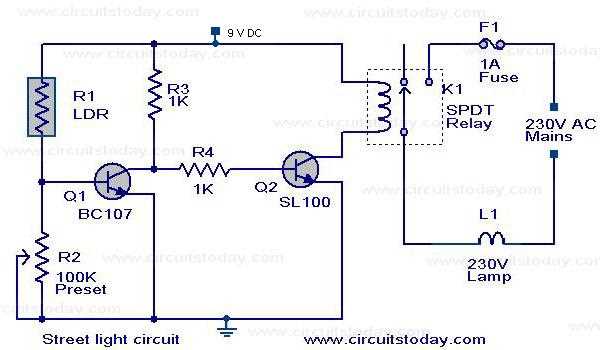

Automatic street light circuit layout and connection guide
Connect the sensor module directly to the relay input terminals to ensure immediate activation when ambient illumination drops below 50 lux. Verify that the sensor is mounted at a height free from shadows or reflections that could trigger false responses.
Use insulated conductors rated for 240V AC to link the main supply to the switching module and lamps. Maintain a separation of at least 2 cm between live and neutral lines inside the enclosure to prevent shorting during maintenance or vibration.
Include a fuse or miniature circuit breaker in series with the live line to protect the module and lamps from voltage spikes. For installations exceeding 10 lamps, consider adding a relay with a higher current rating to handle cumulative load without overheating.
Verify grounding continuity and neutral connections before energizing the system. Proper grounding prevents sensor malfunctions and reduces the risk of electrical shocks during inspections. Test each lamp individually after installation to confirm consistent operation across the array.
Identifying key components and their roles in the circuit
Locate the sensor unit at an unobstructed position to ensure accurate detection of ambient conditions. This module directly controls the switching mechanism, so its placement affects responsiveness and prevents premature activation during daylight hours.
Identify the switching relay and note its current rating before connecting multiple lamps. Use a relay capable of handling at least 20% more than the total load to avoid overheating and reduce stress on internal contacts over repeated cycles.
Check the fuse and protective devices that are connected in series with the supply lines. They safeguard both the control module and the lamps against voltage surges and short circuits, and they should match the specifications recommended for the total amperage of the setup.
Examine the power and neutral lines for consistent contact points and ensure proper grounding. Secure connections and continuous grounding prevent flickering, reduce risk of shocks, and maintain reliable operation across all connected units.
