Start by confirming the orientation and values of all resistors and capacitors. Use a multimeter to measure resistance and capacitance to ensure they match the specified ratings for correct gain and frequency response.
Check all transistors and IC pins for proper alignment. Incorrect connections between input, output, and supply lines can lead to signal distortion or failure of the amplification stage.
Label each node and trace signal paths with a voltage probe. Monitoring voltage at multiple points helps identify drops, shorts, or unexpected fluctuations before powering the assembly fully.
Verify solder joints and connector stability. Loose contacts and cold joints can cause intermittent behavior and affect overall performance, so ensure each connection is solid and free of flux residue.
Document each measurement and adjustment. Keeping a clear record supports troubleshooting and allows consistent replication of the layout in future assemblies.

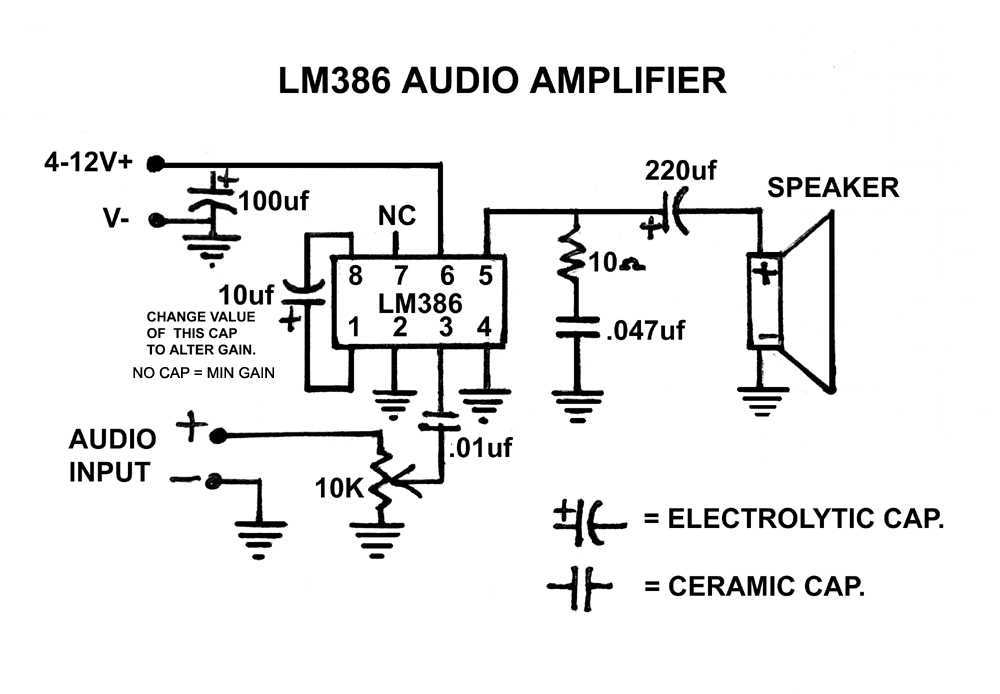

LM386 Amplifier Wiring Layout and Component Placement Guide for Accurate Setup
Position all resistors and capacitors according to their labeled values. Ensure that electrolytic capacitors follow correct polarity and that resistors are placed to match the intended voltage drops at input and feedback nodes.
Connect the input and output terminals first before adding power lines. This prevents accidental shorting and allows verification of signal flow along each stage without risking component damage.
Transistor and IC Pin Verification
Check that every transistor and integrated module has its pins aligned correctly. Misplaced connections between base, collector, and emitter can result in signal inversion or complete non-function of amplification.
Final Connections and Testing
Inspect all solder joints and trace continuity before powering the system. Measure voltage at key nodes and confirm expected levels, then apply a low-level test signal to observe output behavior and detect any misplacement or faulty elements.
Identifying and Testing Each Component in the LM386 Amplifier
Begin by isolating each resistor and measuring its value with a multimeter. Confirm that resistances match the intended specifications for gain and biasing, and replace any element that deviates more than 5% from the labeled rating.
Check capacitors for correct capacitance and polarity. Electrolytic capacitors should have positive and negative terminals correctly aligned, while ceramic capacitors must meet their microfarad rating to avoid frequency shifts.
Transistor and IC Inspection
Verify the orientation of all transistors and integrated modules. Ensure that collector, base, and emitter pins follow the layout to prevent signal inversion or blocked amplification stages.
- Use a diode test mode on the multimeter to confirm junctions.
- Measure base-emitter and base-collector voltage drops for proper operation.
- Check for overheating during a low-power test before full signal application.
Examine all solder joints for cracks, bridges, or cold connections. Reflow any suspect joints to maintain stable signal transmission and prevent intermittent failures.
Inspect connectors and trace paths for continuity. Broken or oxidized traces can create unexpected voltage drops or open paths, affecting overall performance.
Functional Testing
Apply a low-level test signal and monitor output voltage and waveform. Compare measurements at key nodes with expected values to confirm each component contributes correctly to amplification, filtering, and feedback.
