Connect the brake and turn signal terminals first to prevent short circuits during installation. Use a multimeter to verify continuity between the towing vehicle and the attached unit before securing any contacts.
Label each conductor clearly according to its function: tail lights, ground, left turn, right turn, and auxiliary power. This avoids confusion and reduces the risk of reversed connections that can damage lighting components.
Ensure all contacts are clean and free of corrosion before joining connectors. Apply dielectric grease to exposed metal points to improve conductivity and protect against moisture infiltration.
Test each circuit individually after assembly. Engage brake lights, turn signals, and running lights while observing responses at the rear end of the trailer. Confirm that all lamps respond correctly to the vehicle’s control inputs.
Secure the harness along the frame using zip ties or clips to prevent movement during transit. Avoid routing near sharp edges, hot surfaces, or areas prone to abrasion to maintain long-term reliability.
Step by Step Connections for 5 Terminal Trailer Setup

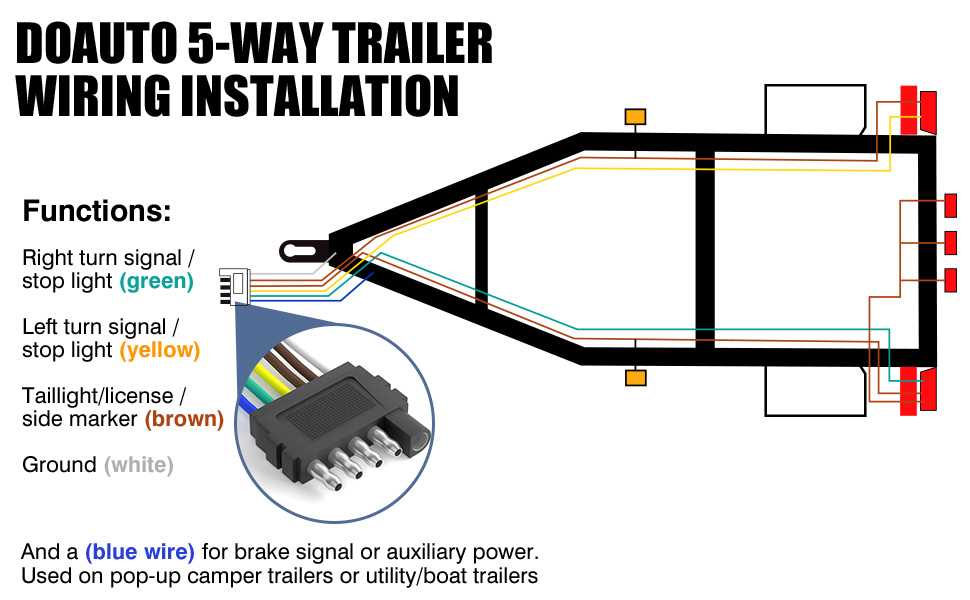

Start by identifying each terminal according to its function. Typically, five points include left signal, right signal, brake lights, ground, and auxiliary power. Mark each lead with colored tape or labels to avoid mistakes during assembly.
Follow this sequence when joining contacts:
- Attach the ground lead securely to the chassis using a clean, unpainted surface.
- Connect brake and turn signal conductors to their designated terminals.
- Hook up running lights to the auxiliary point, checking for consistent continuity with a tester.
After completing connections, inspect each junction for corrosion and tightness. Operate the vehicle’s lighting system while observing responses at the rear connectors. Adjust or retighten any loose points, and secure the harness along the frame with clamps or zip ties to prevent abrasion and movement during travel.
Identifying Each Conductor and Its Role in the Connector

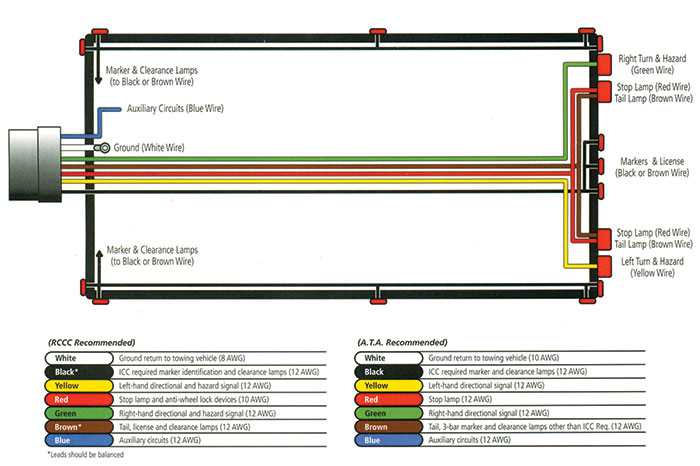

Begin by separating each lead by color and tracing it to its corresponding terminal. Typical colors include green for right signal, yellow for left signal, brown for running lights, white for ground, and blue for auxiliary power. Confirm each lead using a continuity tester before joining.
Mark each point clearly to prevent cross connections. Small numbered tags or color-coded tape can help distinguish the functions during assembly and maintenance. Accurate identification avoids short circuits and lighting failures on the road.
Use a multimeter to verify correct polarity and continuity between the towing unit and the connected apparatus. Check each signal individually, ensuring brake, turn, and running lights respond properly. Replace or clean any corroded terminals to maintain reliable contact.
Document the configuration in a simple chart for future reference. Include terminal positions, lead colors, and functions. This makes troubleshooting and reconnections faster, reducing downtime and potential errors during inspections or replacements.
