Place outlets and switches strategically near work areas and appliance locations to reduce extension needs and improve accessibility. Maintain consistent spacing between fixtures to simplify installation and future maintenance.
Use color-coded cables for live, neutral, and ground lines to prevent confusion and reduce the risk of incorrect connections. Label each branch clearly for quick identification during inspections or upgrades.
Verify voltage and load requirements for each line before installation. Select appropriate fuses or breakers to protect devices and prevent overheating, and ensure all connections comply with local safety regulations.
Test each connection individually with a multimeter to confirm proper continuity and polarity. Address any voltage drops or loose contacts immediately to maintain a safe and reliable electrical network throughout the property.
Organizing Electrical Lines for Safe and Reliable Connections
Route live, neutral, and ground cables separately to minimize interference and reduce the risk of accidental shorts. Keep power lines away from water pipes and heating ducts to prevent hazards and maintain stable performance.
Install junction boxes at key branch points to simplify future expansions or repairs. Ensure each box is securely mounted, with enough space to accommodate wire bends without stressing connections, and label each cable entering the box for clarity.
Test each line before energizing the system using a multimeter to verify continuity, proper voltage, and correct polarity. Replace any damaged insulation or connectors immediately to avoid overheating and maintain a reliable network throughout the property.
Planning Outlet and Switch Connections Safely
Place outlets near high-use areas such as kitchen counters, workstations, and entertainment centers to reduce reliance on extension cords. Maintain a minimum spacing of 12 feet along walls to meet standard accessibility and load requirements.
Position switches at consistent heights around 48 inches from the floor for easy access. Group multiple switches in single plates to simplify user interaction and reduce unnecessary wall penetrations for wiring.
Use separate lines for high-power appliances like ovens, water heaters, and HVAC units. Connect these lines directly to dedicated breakers to prevent overloads on general-purpose outlets.
Color-code each conductor with visible markers or distinct cable jackets to identify live, neutral, and grounding connections. This approach reduces errors during installation and simplifies future maintenance.
Install GFCI or AFCI protection in areas exposed to moisture or potential electrical faults. Bathrooms, kitchens, and garages should include these protective devices to prevent shock hazards and fire risks.

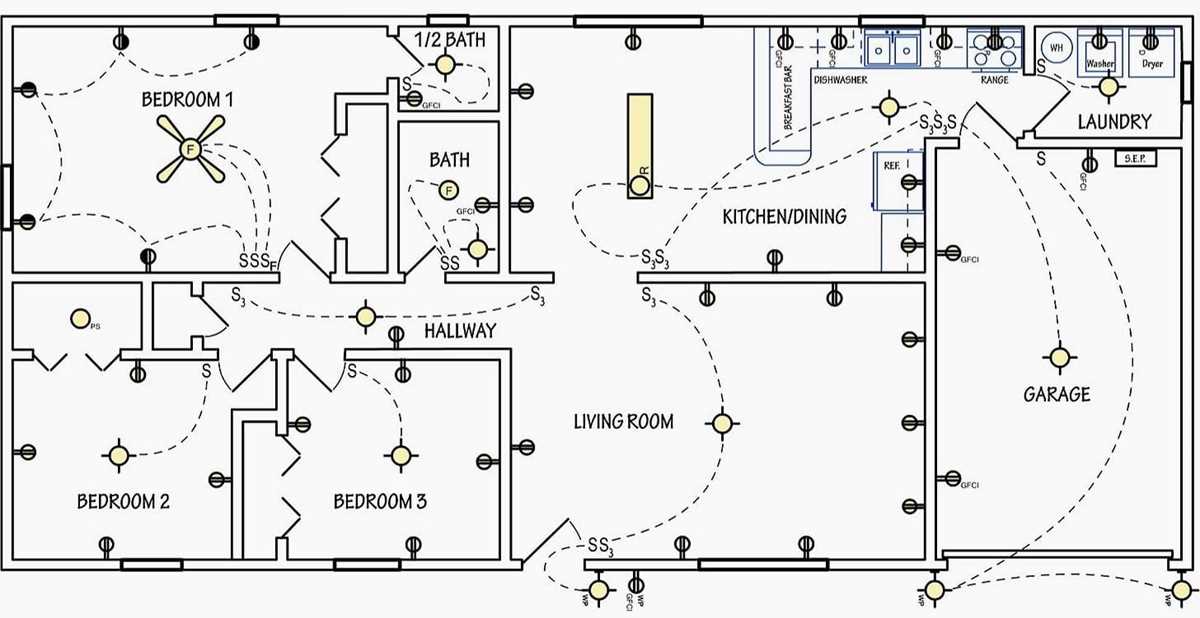

Plan outlet placement for furniture layout to avoid hidden or blocked sockets. Consider future upgrades such as additional lighting, smart devices, or charging stations when positioning receptacles.
Test continuity and polarity for each outlet and switch before covering walls. Use a reliable tester to ensure correct connections, proper grounding, and functional operation under load conditions.
Document each connection and switch location with labeled drawings or a spreadsheet. This record helps during inspections, troubleshooting, or when expanding the electrical network in the future.
