Ensure main power lines are correctly rated for the total load of the lift car and counterweight. Use copper conductors with insulation suitable for 600V and confirm all protective fuses match the motor’s full-load current. This prevents overheating and potential system failure.
Integrate control relays and contactors in a sequential order to maintain safe operation of the car. Each relay should be tested individually to confirm that floor selection commands activate the correct solenoids and limit switches. Incorrect sequencing can cause stalls or unintended stops.
Verify signal and safety interlocks such as door sensors, overload detection, and emergency stop circuits before full operation. Use multimeters to check continuity and ensure that all indicator lamps respond properly to the corresponding inputs. Reliable interlocks prevent accidents and maintain compliance with safety regulations.
Elevator Electrical Layout and Control Connections Explained
Route main power lines directly from the distribution panel to the motor starter, ensuring that conductor sizes match the load requirements. Include a properly rated fuse or breaker for overcurrent protection and label each line for quick identification. This ensures safe delivery of energy to the lifting mechanism.
Connect control relays in sequence with auxiliary contacts aligned to the corresponding floor call buttons. Each relay should trigger the appropriate directional contactor while maintaining feedback from limit switches to prevent overtravel. Sequential activation prevents motor strain and unintended motion.
Integrate safety inputs into the control loop such as door interlocks, emergency stops, and overload sensors. Verify continuity and response by simulating each condition individually, confirming that the system interrupts current flow when a hazard is detected. This protects passengers and equipment from faults.
Use color-coded or numbered conductors for all connections between the main drive, relay contacts, and control panels. Maintain clear spacing and secure clamping to reduce electromagnetic interference and mechanical wear over time. Neat organization reduces troubleshooting time and prevents accidental shorts.
Check voltage and signal consistency across all control points before energizing the system fully. Measure line-to-line and line-to-neutral voltages at the motor terminals, then confirm that each relay receives the correct input from floor selectors. Accurate readings ensure smooth and reliable operation.

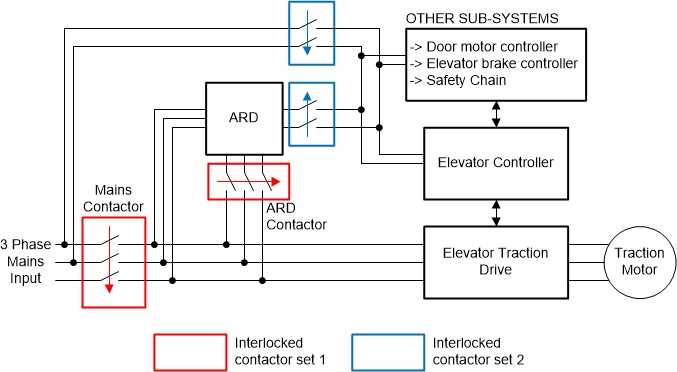

Understanding Main Power Supply and Safety Interlocks for Lifts
Route the main incoming lines from a dedicated distribution board to the primary motor controller with conductors sized according to full-load current. Include a circuit breaker rated 125–150% of the motor current to prevent overload, and clearly mark each phase for easy identification. Proper sizing and labeling reduce risks of overheating and faults.
Install a main disconnect switch at the control cabinet to isolate the system during maintenance. Ensure the switch interrupts both line and neutral connections and is interlocked with the door lock mechanism. This prevents energizing the drive while the cabin or machinery space is accessed.
Integrate door interlocks into the safety chain so the lifting device cannot operate when any hatch or cabin door is open. Test each interlock with a multimeter to confirm it breaks the circuit and triggers a fail-safe condition. Functional interlocks protect passengers and prevent mechanical damage.
Include overload and thermal protection relays in series with the main starter. Set the relays according to the motor’s rated current and trip class to prevent overheating from prolonged high-load operation. Thermal protection ensures long-term reliability of the drive mechanism.
Verify control inputs from floor buttons and call stations through the interlock system before energizing the main drive. Each input should pass through the safety relays and return a confirmation signal to the control panel, confirming readiness to operate. This prevents unintended motion from faulty or bypassed controls.
Maintain clear documentation of all main lines and safety paths with labels, schematics, and color coding. Perform a systematic check after installation, confirming continuity and correct voltage levels at all critical points. Well-documented connections simplify troubleshooting and routine inspection.
