Match each terminal to its corresponding function before making connections. Standard assignments include tail lights, brake lights, left and right turn signals, reverse lights, and ground. Verify colors to avoid misconnection.
Secure each wire using proper crimp connectors or soldering to maintain reliable contact. Loose connections can cause intermittent lighting failures or signal loss while towing.
Check continuity with a multimeter after assembly. Confirm that each line carries the correct voltage from the towing vehicle to the trailer. This ensures all lighting and auxiliary functions operate as intended.
Protect exposed conductors with heat shrink tubing or electrical tape. Preventing moisture ingress and corrosion extends the lifespan of the connector and reduces maintenance issues.
Document your connections in a simple chart or labeled diagram. Recording color codes and function assignments makes future troubleshooting or replacement straightforward and minimizes the risk of errors.

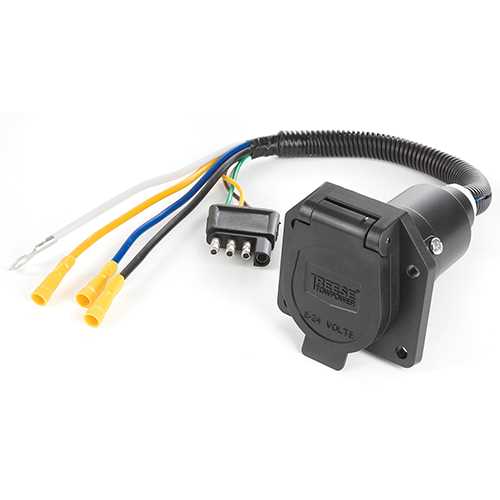

7 Pin Flat Connector Guide
Identify each terminal according to its function before making connections. Typical functions include tail lights, brake lights, left and right turn signals, reverse lights, auxiliary power, and ground. Correct assignment prevents signal conflicts.
Use proper connectors to join conductors. Crimped terminals or soldered joints reduce resistance and maintain stable contact. Avoid twisting wires together, as this can lead to overheating or intermittent failures.
Follow color coding standards when connecting wires. Common conventions are brown for tail lights, yellow and green for left and right turn signals, white for ground, blue for brakes, and red for auxiliary circuits. Maintaining consistent colors ensures easier troubleshooting.
Secure the assembly with strain relief clips or cable ties. Preventing tension on connections avoids loosening or breakage while the trailer is in motion.
Test each function after installation. Apply power to the towing vehicle and verify that tail, brake, turn signals, and auxiliary circuits operate correctly. Use a multimeter or test light to confirm voltage and continuity at each line.
Protect against moisture and corrosion using dielectric grease or heat shrink tubing. Cover exposed terminals and keep the connector dry to prolong service life and maintain reliable operation.

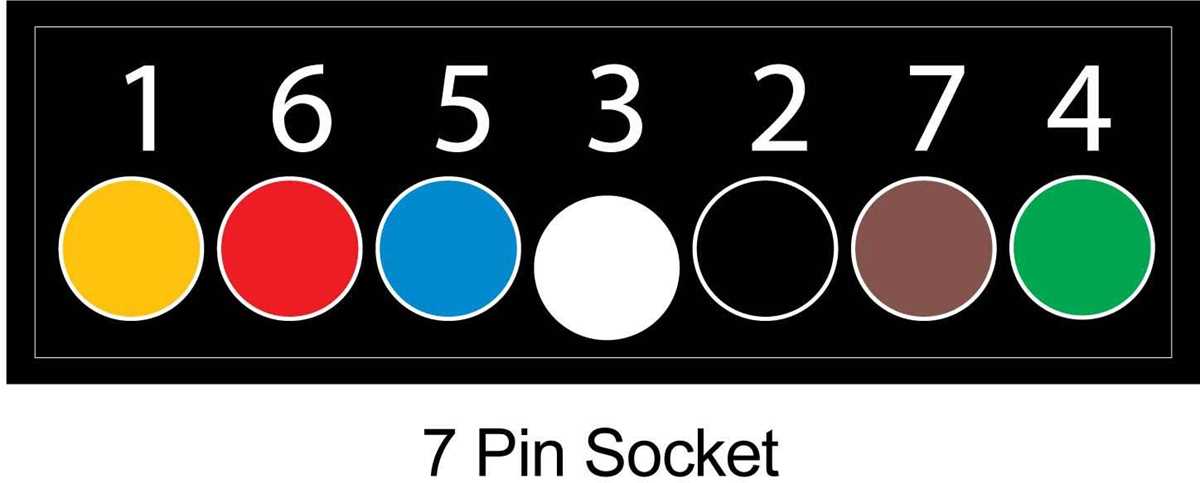

Identifying Pin Functions and Wire Colors
Start by labeling each terminal according to its operational role. Standard connections include brake lights, turn signals, tail lamps, reverse lamps, ground, and auxiliary power circuits.
Match colors to functions to reduce errors. Typically, brown wires serve tail lamps, yellow and green handle left and right turn signals, white is dedicated to grounding, blue for brakes, and red for auxiliary power.
Inspect the conductor integrity before linking. Look for frayed strands or insulation damage. Repair or replace compromised lines to prevent shorts and ensure reliable signal transmission.
Verify continuity using a multimeter or test light. Confirm that each function responds correctly when activated. This ensures correct current flow and prevents misfires between brake, tail, and turn circuits.
Secure connectors to prevent movement or loosened contacts. Use cable ties or mounting clips to stabilize the assembly and reduce wear caused by vibration or towing motions.
Maintain consistent color standards throughout all extensions or replacements. Consistent color coding simplifies troubleshooting and future maintenance while minimizing the risk of accidental swaps.
Check polarity and voltage before final installation. Ensuring positive and negative connections align with the towing vehicle’s supply prevents backfeeding or malfunction of lighting and auxiliary circuits.
Protect exposed terminals with dielectric grease or heat shrink tubing. Shielding the connections from moisture and corrosion extends durability and maintains uninterrupted operation during adverse weather conditions.
