Before beginning, ensure you know the power rating and impedance of your amplifier and speaker. Using a speaker with multiple terminals allows for various setups that can impact performance. The configuration will affect both the impedance seen by the amplifier and the power it can safely deliver.
One of the most common configurations involves connecting the terminals in parallel, which reduces the total impedance. This is beneficial when you want to push more power to the speaker. However, be cautious, as this method may cause the amplifier to overheat or become damaged if it is not rated for lower impedance loads.
Alternatively, connecting the terminals in series will increase the impedance. This lowers the power output to the speaker, but it also provides greater safety for your amplifier by reducing the likelihood of overloading. Make sure to double-check the specifications of both your components to choose the best setup for your needs.
Wiring a Dual Voice Coil Speaker
Start by identifying the two sets of terminals on your speaker. Each set corresponds to one of the voice coils. These coils should be properly connected to ensure that your system works efficiently and safely. Always check the impedance rating of the speaker before proceeding to make sure it matches with your amplifier’s specifications.
If you are aiming to decrease the overall impedance, connect the terminals of each coil in parallel. To do this, join the positive terminals of both coils together and the negative terminals of both coils together. This setup will provide lower resistance and allow more power to flow to the speaker, improving its output.

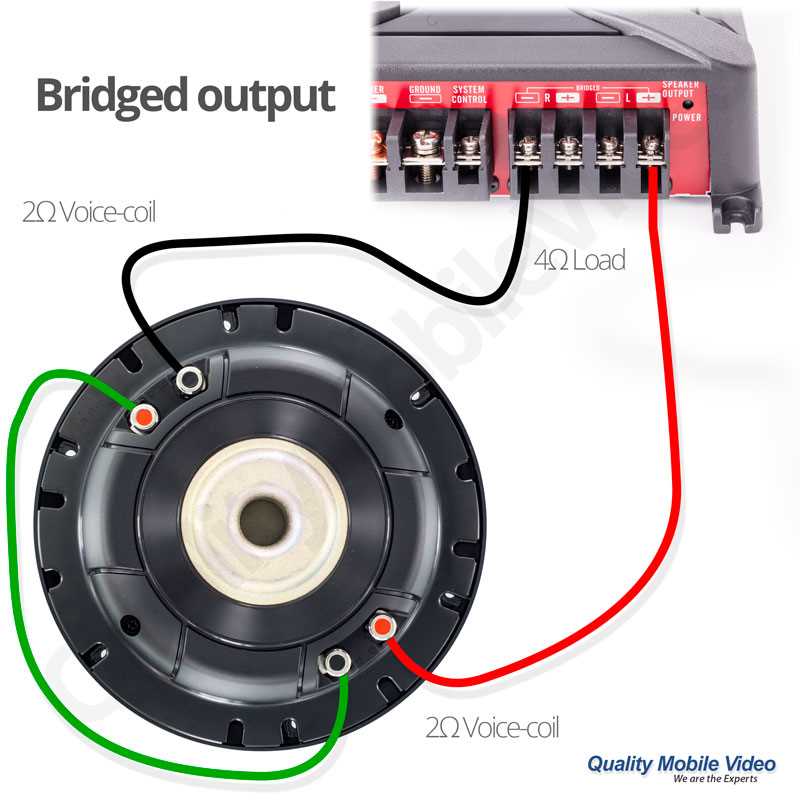

Alternatively, if you need to increase the impedance to match an amplifier, connect the coils in series. Connect the positive terminal of one coil to the amplifier’s positive output. Then, connect the negative terminal of the second coil to the amplifier’s negative output. This results in a higher impedance load, which is safer for some amplifiers.
Be mindful of the type of amplifier you’re using. Many amplifiers have a limit on the minimum impedance they can handle. Overloading the amplifier by using a setup that lowers impedance too much may cause it to overheat or damage the system. Always double-check the amplifier’s power rating and ensure that the speaker’s impedance matches or exceeds the amp’s minimum impedance requirement.
If you are using a bridged amplifier, it’s important to check the wiring to ensure that both coils are properly connected to the right channels. Bridging effectively doubles the power output from your amplifier but requires careful connection to ensure that both coils receive equal power.
Finally, make sure all connections are secure and insulated properly. Poor connections can lead to weak sound output or even cause electrical shorts. Once connected, test your system by playing a low-level sound and gradually increasing the volume to ensure everything is working as expected.
Understanding the Configuration of Dual Voice Coil Speakers
To properly set up a speaker with two independent circuits, you need to consider how each circuit affects overall impedance. Each individual circuit, or “section,” acts like a standalone speaker, but both work in tandem. The way these sections are connected to your amplifier will determine the overall impedance, which impacts power delivery and efficiency.
One of the simplest connection methods is linking the two sections in parallel. In this configuration, the positive terminals of both sections are joined together and connected to the positive terminal of your amplifier, while the negative terminals are also combined and attached to the amplifier’s negative terminal. This method lowers the total impedance, allowing more current to flow and potentially increasing the power output from the amplifier.

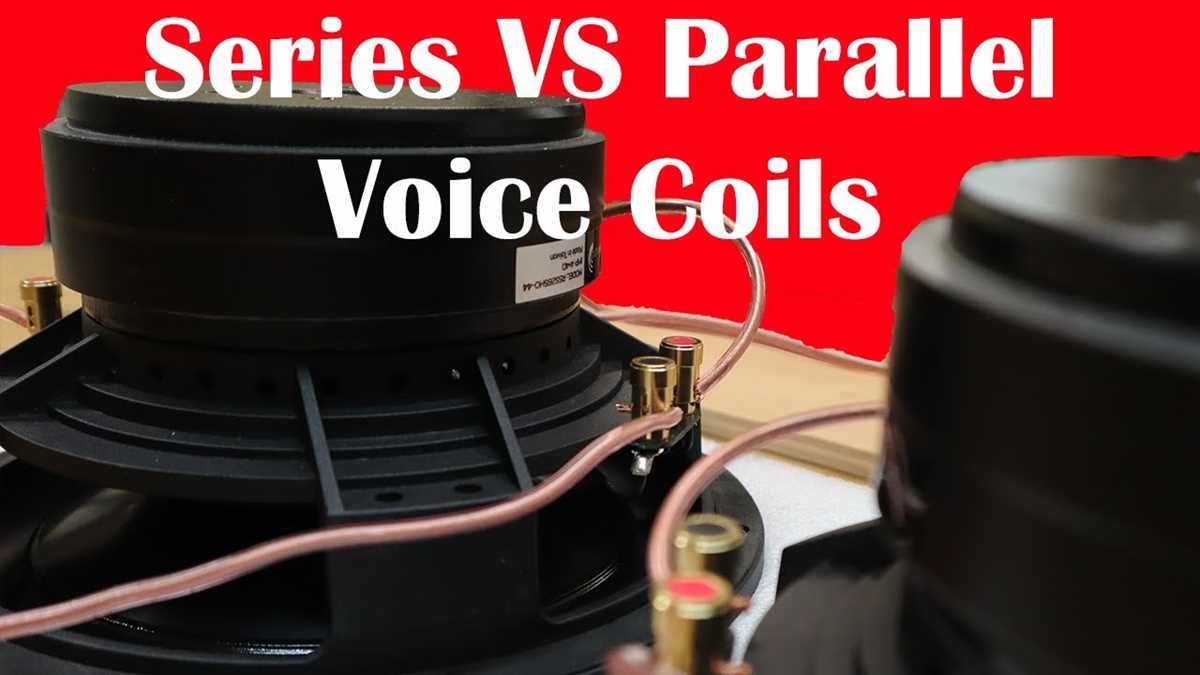

If you need to increase the impedance, you can wire the sections in series. In this setup, the positive terminal of one section is connected to the amplifier’s positive output, while the negative terminal of the other section is connected to the amplifier’s negative output. The resulting increase in impedance reduces the current draw from the amplifier, which can help avoid overload or damage to the system.
The choice between series and parallel connections depends on your amplifier’s specifications. Some amplifiers are designed to work with lower impedance and can handle the increased power demand, while others may struggle or even fail if the load is too low. Always check your amplifier’s minimum impedance rating before deciding on the connection method.
Lastly, consider the power handling capacity of both your speaker and amplifier. If the amplifier cannot deliver the required power for the chosen configuration, or if it’s exposed to impedance levels it can’t safely manage, it could result in distortion or hardware failure. Matching the right speaker configuration with your amplifier is key to achieving optimal sound quality without damaging your equipment.
