Connect the positive and negative leads using appropriately rated cables capable of handling 10–15 amps continuously. Ensure all terminals are tightened to prevent voltage drops or overheating during operation.
Position each module with its terminals accessible for routine inspection. Use color-coded connectors to avoid misconnection: red for positive, black for negative.
Maintain at least a 6-inch clearance between each unit and metallic surfaces to minimize short-circuit risk. Insulate exposed metal points with heat-resistant sleeves.
Incorporate a fuse rated 15–20 amps in line with the positive lead before connecting to storage batteries. This protects the system from current surges and prevents damage to sensitive electronics.

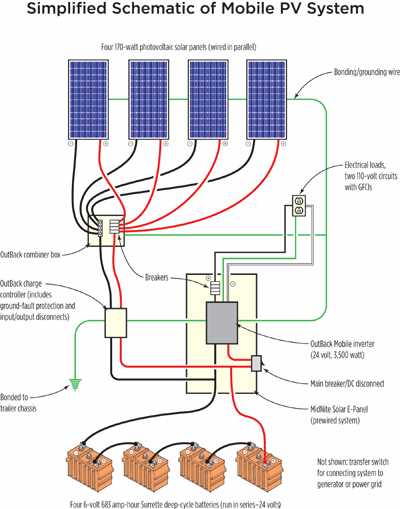

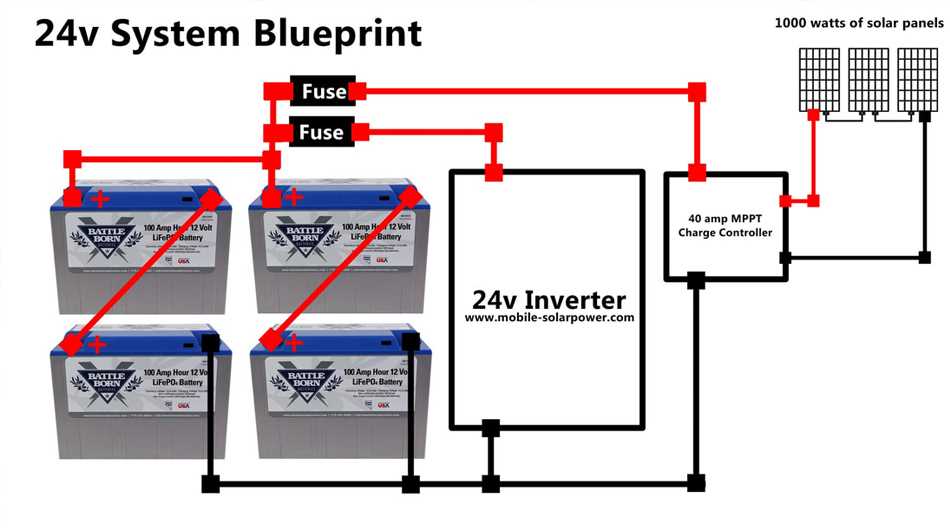

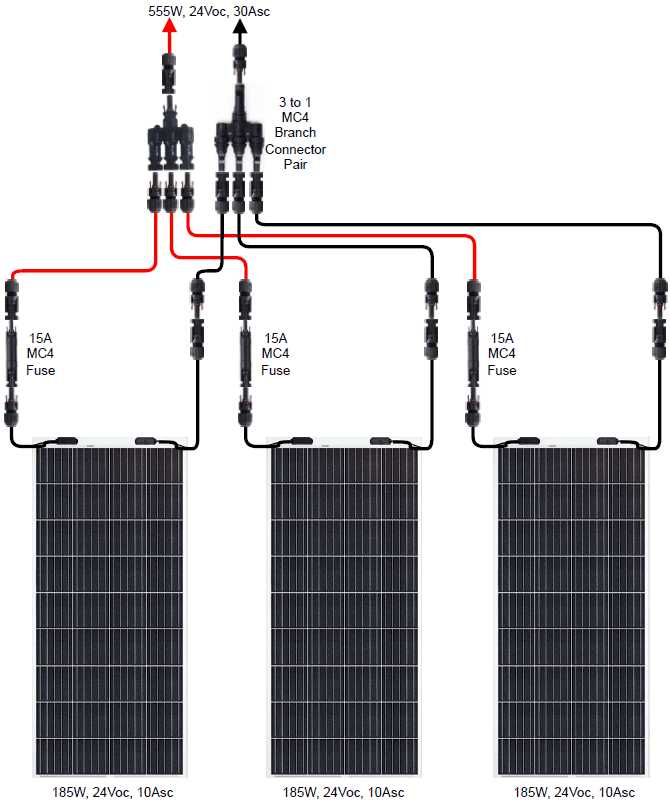

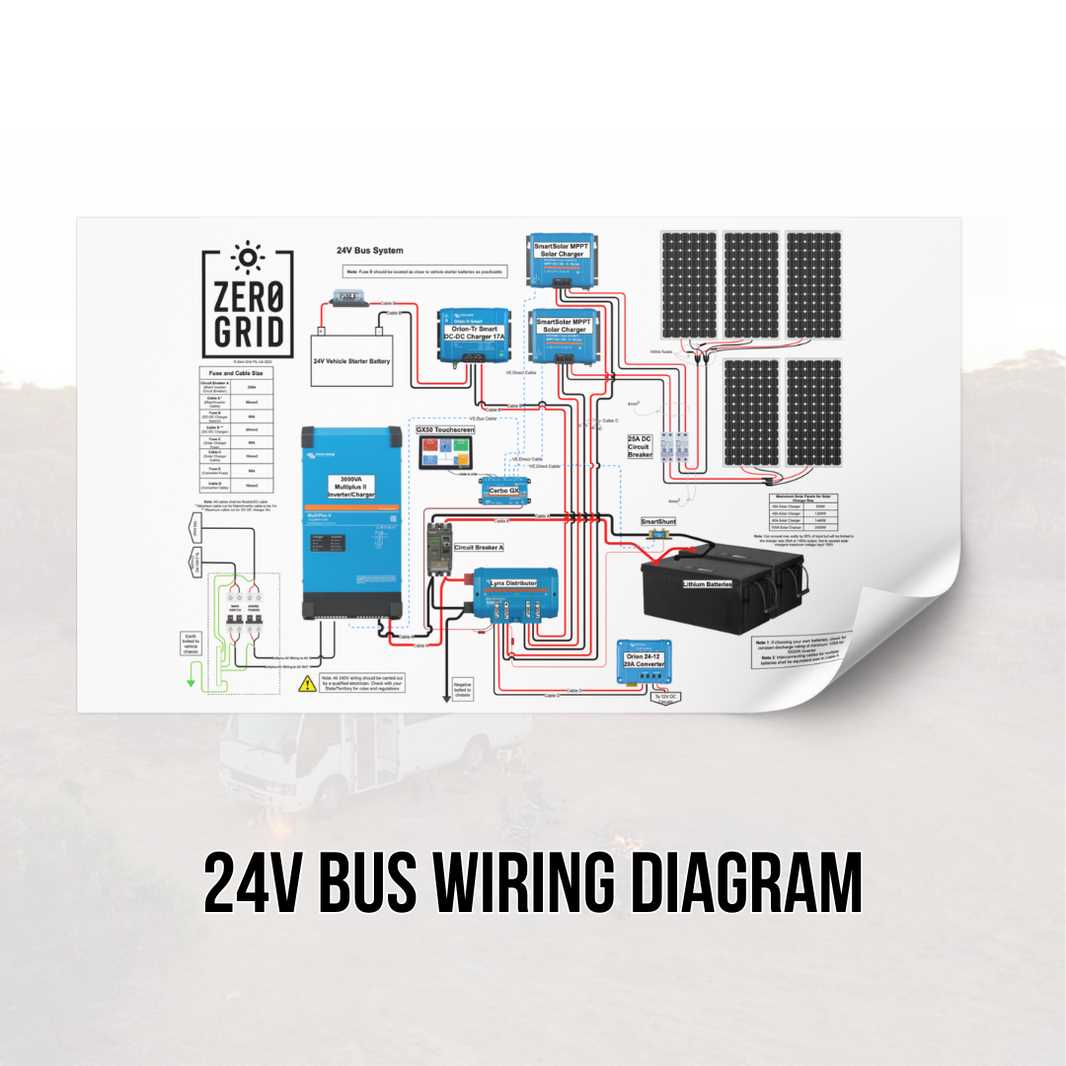

24 Volt Solar Panel Connection Guide
Connect the positive and negative leads using cables rated for at least 12 amps to handle continuous current safely. Secure all terminals tightly to prevent energy loss and overheating during operation.
Arrange each module with clear access to connections for inspection. Use standardized color coding with red for positive and black for negative, and install inline fuses of 15 amps to protect batteries and inverters from short circuits or surges.
Selecting Proper Cables and Connectors for a 24 Volt Setup
Use cables with a minimum cross-sectional area of 4 mm² to handle sustained current without overheating. Stranded copper conductors provide flexibility and reduce breakage risk in tight installation spaces.
Choose connectors rated for at least 15 amps continuous load and ensure they are compatible with your terminal sizes. Crimped or screw-type connectors improve conductivity and prevent accidental disconnections under vibration.
Keep cable runs as short as possible to minimize voltage drop. For distances exceeding 10 meters, consider increasing conductor size to maintain stable energy delivery across the system.
Protect all connections with heat-shrink tubing or weatherproof covers if exposed to outdoor conditions. Insulation quality prevents corrosion and reduces the chance of accidental short circuits during maintenance.
Label each lead clearly with color-coded tags or permanent markers. Red for positive and black for negative ensures safe future adjustments and makes troubleshooting faster and more reliable.
