Begin by selecting the right modules for wireless transmission, including a Bluetooth receiver, amplifier, and speakers. These components are integral for transferring and enhancing sound signals without physical connections.
Choose a Bluetooth receiver that matches the audio quality requirements and has a stable range for your needs. The receiver is the primary component responsible for decoding the incoming wireless signal. It must be compatible with the transmitter you plan to use.
Next, connect the amplifier to boost the signal strength for the speaker. The amplifier ensures that the audio signal is strong enough to drive the speakers. It’s important to select an amplifier with a suitable power rating for your speakers to avoid distortion.
Make sure the speaker impedance matches the amplifier output to prevent damage. Use an appropriate wire gauge to connect these components to ensure clear and strong sound transmission. Test the setup with a signal source to verify the connections and performance.
By carefully selecting and connecting each part in the chain, you’ll create a functional wireless audio system. Regular testing and adjustments will help maintain optimal performance over time.

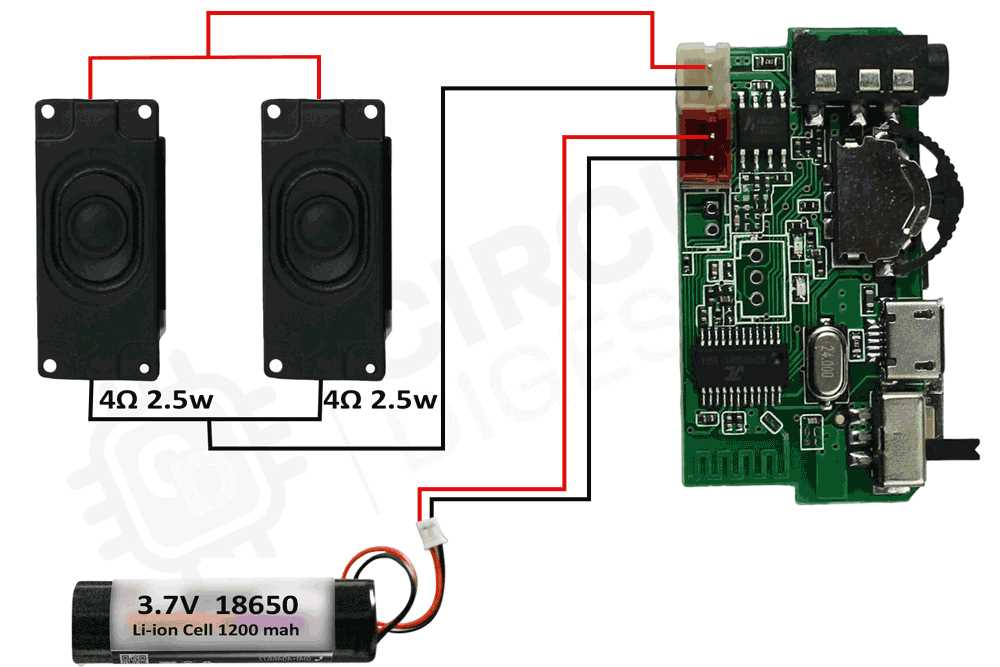

Audio Bluetooth Circuit Diagram
To build a wireless sound system, start by connecting a wireless receiver module. This module should be capable of receiving signals at the desired frequency. Check that the receiver is compatible with the transmitter to ensure smooth communication.
Wiring the Receiver and Amplifier
Next, connect the output of the receiver to the amplifier. The amplifier boosts the signal strength to drive the speakers effectively. Make sure to use proper shielding and grounding to avoid interference, which can degrade sound quality.
The amplifier should be chosen based on the speaker’s impedance and power rating. If the amplifier delivers more power than the speaker can handle, distortion and potential damage could occur. Always verify the output rating of the amplifier against the speaker’s specifications before making connections.
Final Connections to the Speakers
Connect the amplifier’s output to the speaker terminals using suitable gauge wires. Ensure that the polarity is correct to avoid signal phase issues, which can cause poor sound reproduction. Proper insulation of the wires is important to prevent short circuits or signal loss.
Once the connections are made, test the setup by playing a test signal. Adjust the amplifier settings for optimal sound output, ensuring no clipping or distortion is present. With everything wired correctly, you will have a fully functional wireless sound system.
Components Required for Building an Audio Bluetooth System
To construct a wireless sound system, the key components include a receiver, amplifier, speaker, and a power supply. Each part plays a critical role in ensuring the smooth transmission and amplification of the signal.
Receiver Module
The receiver module is the heart of the system, responsible for decoding the wireless signal. When selecting a receiver, make sure it supports the desired range and frequency band. Modules like the HC-05 or CSR8645 are commonly used in these applications. Ensure the module has the proper interface for easy integration with other system components.
Amplifier
The amplifier boosts the signal strength to a level that can drive the speakers. Choose an amplifier with a suitable output power rating based on the speaker’s specifications. For instance, a class D amplifier is commonly used in such systems due to its efficiency and low heat generation. Make sure the amplifier matches the impedance of the speaker to avoid distortion or damage.
Speakers
Speakers are chosen based on the desired sound output and power handling capability. Ensure the speaker’s impedance matches the output impedance of the amplifier. Most common setups use 4-ohm or 8-ohm speakers, depending on the amplifier’s output power. Consider the frequency response of the speaker to ensure it fits the sound profile you’re aiming for.
Power Supply
A stable and reliable power supply is necessary to operate the receiver, amplifier, and speakers. Depending on the components used, you may need a 5V or 12V DC power supply. Ensure the power supply can deliver sufficient current to power all components without voltage drops or instability.
Wiring and Connectors
High-quality wires and connectors are crucial for maintaining signal integrity and ensuring reliable connections. Use insulated copper wire for the connections, and ensure that connectors are secure to avoid signal loss or disconnection. Depending on your setup, you may use 3.5mm audio jacks, RCA connectors, or soldering for permanent connections.
Enclosure
An enclosure is necessary to house and protect the components from damage. Choose an enclosure made of durable material, such as plastic or metal, with proper ventilation to dissipate heat from the amplifier. The enclosure should have openings for connectors and buttons, allowing easy access for adjustments and maintenance.
