To set up a reliable electrical connection between your vehicle and a heavy-duty unit, begin by selecting the correct connector type. A 7-wire connector is the most commonly used for a secure and stable link. It provides sufficient power for lighting, brakes, and other essential systems on the load. Ensure the connector is rated for the right current and voltage to avoid damage to the wiring or components.
Each wire in the connector serves a specific function, so proper identification is critical. Typically, these systems require color-coded wires for clarity: usually, the colors red, white, brown, and yellow correspond to different systems like lights, brakes, or auxiliary functions. Understanding the precise connections is necessary for safe and efficient operation.
For accurate and durable connections, use high-quality connectors and tools. Consider using weather-resistant seals and corrosion inhibitors to extend the life of the electrical system. When wiring, always follow manufacturer specifications for proper wire gauge and insulation to ensure maximum performance and prevent electrical failures.

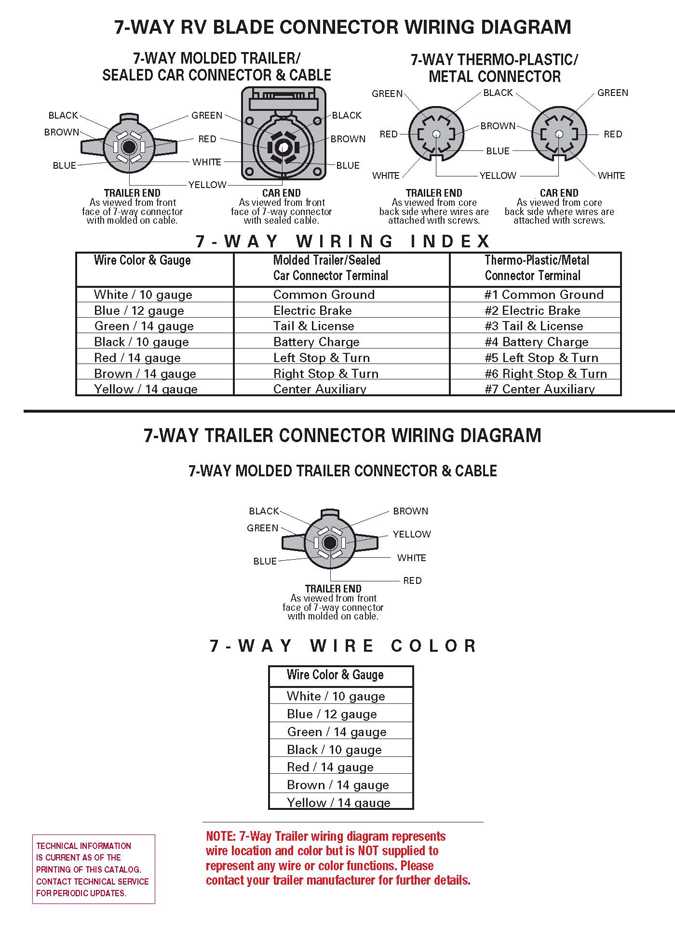

7 Pin Tractor Trailer Wiring Diagram
Start by identifying the function of each wire in the 7-pin setup. Each connection corresponds to a specific system, such as lighting, brake systems, and auxiliary power. The wires are typically color-coded for ease of installation, with common colors like red, brown, and yellow representing specific functions like tail lights, turn signals, and brakes.
For optimal performance, ensure that the connector is rated for the correct amperage and voltage. The 7-wire connection is often rated for 12 volts, which is standard for most heavy-duty setups. Be sure to use cables and connectors that match the amperage requirements of the vehicle and the load.
Secure the connection with weatherproof seals to protect the electrical systems from moisture, dirt, and corrosion. Waterproof connectors will prolong the life of your system by preventing rust and degradation. This step is particularly crucial in harsh weather conditions or when the vehicle operates in high-humidity environments.
For the actual connection, begin by attaching the ground wire. This is typically the white wire, which provides the reference point for the electrical system. Without a proper ground, the system can experience erratic performance or fail to operate altogether.
Next, wire the other systems, including the brake lights, turn signals, reverse lights, and auxiliary power. Use the correct gauge of wire for each connection. Smaller gauge wires should be used for lower-power applications, while larger gauges should be employed for high-power systems like brakes.
Ensure that each wire is securely attached to the connector, and double-check for any potential short circuits. Over time, wires can loosen or wear out, which can cause malfunction or even electrical fires. Regular maintenance is crucial to prevent these issues and ensure the continued operation of the electrical systems.
Lastly, test the system before use. After completing the installation, run a series of tests to confirm that each system is working as expected. Check that the lights, brakes, and power are all functioning correctly. If any system is not performing, retrace your connections and inspect for faults or improper wiring.
Understanding the 7 Pin Connector and Its Function
The 7-pin connector provides a secure link between a heavy-duty vehicle and a load, allowing for the transmission of power and control signals. The connection typically involves color-coded wires to make installation easier and ensure accurate mapping of functions. This setup is used in many applications, from large trucks to smaller utility vehicles, ensuring reliable operation of essential systems like lights and brakes.
Each wire in the connector serves a unique purpose. Some wires provide power to specific components, such as brake lights or turn signals, while others enable communication between the vehicle and load, ensuring proper braking or reverse operations. Understanding each wire’s function is crucial for avoiding malfunctions and ensuring a safe connection.
The outer casing of the connector is designed for durability, offering resistance against weather conditions, vibrations, and wear. This is especially important when operating in harsh environments where exposure to moisture, dirt, or chemicals could cause degradation over time. Be sure to select connectors with proper sealing to ensure longevity and reliable performance.

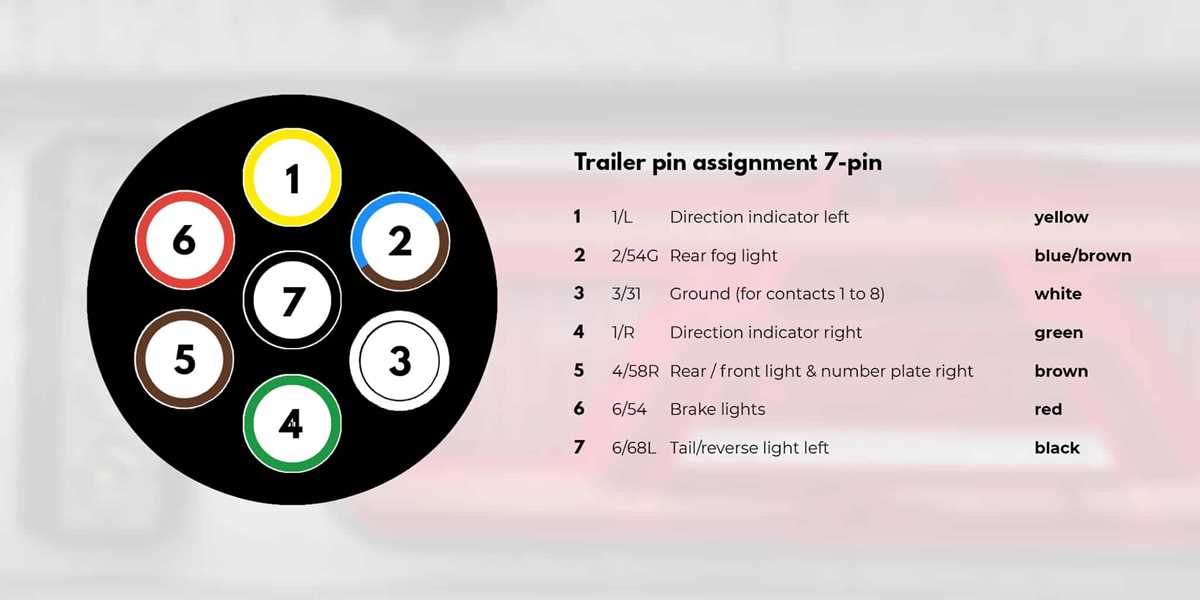

To identify each wire’s function in the 7-wire setup, refer to the industry-standard color code. The most common arrangement assigns colors such as white for ground, brown for running lights, yellow for left turn signals, and green for right turn signals. These standards help simplify installation and troubleshooting tasks, ensuring that the system functions as intended.
When selecting connectors, it’s important to choose those rated for the appropriate voltage and current requirements. For most heavy-duty connections, the 7-wire setup typically operates at 12V, but it’s still important to verify that the connector can handle the maximum power needed by the systems involved. Check the specifications of your vehicle and the load to determine the best fit.
For proper maintenance, regularly inspect the connector and cables for signs of wear, corrosion, or damage. Loose connections, frayed wires, or moisture inside the connector can lead to failure. Clean the contacts and re-tighten any loose fittings to ensure the system continues to operate smoothly and safely for the long term.
