Ensure all power is disconnected before integrating any new control leads to avoid short circuits or damage to existing components. Identify the main input terminals and mark each connection according to function.
Match color-coded conductors to their corresponding factory sockets. Typically, red or yellow indicates constant power, black is ground, and blue is remote turn-on. Confirm continuity using a multimeter before securing connections.
Organize signal and power lines separately to reduce interference. Use plastic clips or zip ties to maintain separation along the dash and firewall routes, keeping lengths minimal to avoid voltage drop or noise.
Use insulated connectors or solder joints for each junction point. Heat-shrink tubing provides additional protection against vibration and moisture. Avoid twisting bare conductors together as it can create unreliable contacts.
Test the system incrementally after completing each section. Reconnect the battery temporarily and verify power, speaker output, and remote functions. Correct any misalignment immediately before final assembly.
Aftermarket Stereo Harness Installation Guide
Disconnect the vehicle battery before beginning any integration to prevent shorts. Identify the main interface plugs and label each lead according to power, ground, and signal lines to avoid errors during connection.
Align color-coded conductors with factory terminals using a continuity tester to verify each connection. Red or yellow typically indicates constant power, black is chassis ground, and blue is a remote turn-on signal. Secure each junction with insulated connectors or solder and heat-shrink for durability.
Route signal and power lines separately to reduce interference and maintain clarity. Use clips or zip ties to fix them along the dash and firewall paths. Test all functions incrementally–power, audio output, and remote triggers–before final assembly to ensure reliable performance.

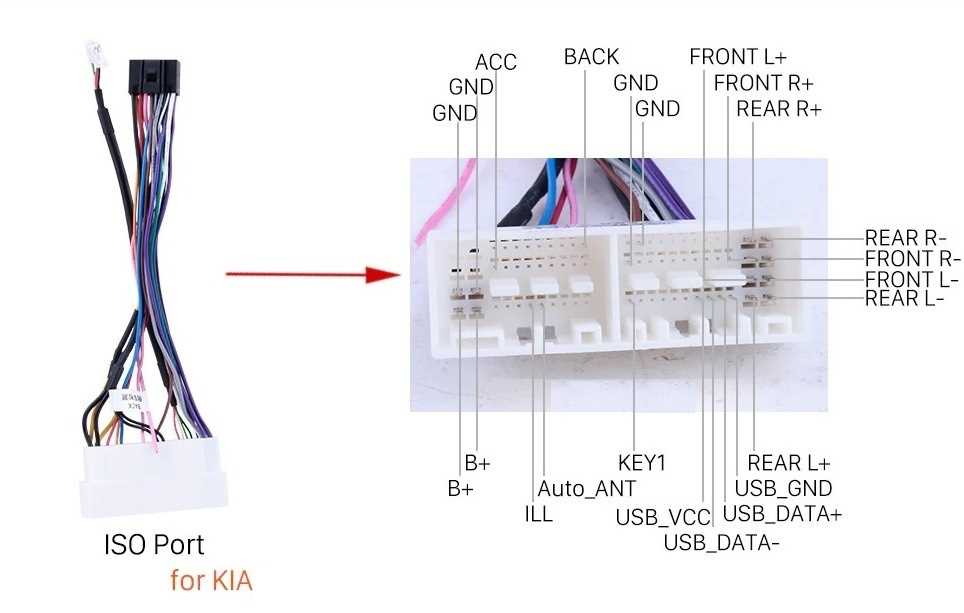

Identifying Vehicle Connectors and Color Codes
Examine all interface plugs and match each terminal to the manufacturer’s specifications. Use a multimeter to confirm continuity and polarity. Common color assignments include:
- Red: constant power
- Yellow: ignition-switched power
- Black: ground
- Blue: amplifier or accessory trigger
- White, gray, green, purple: speaker leads with positive and negative pairing

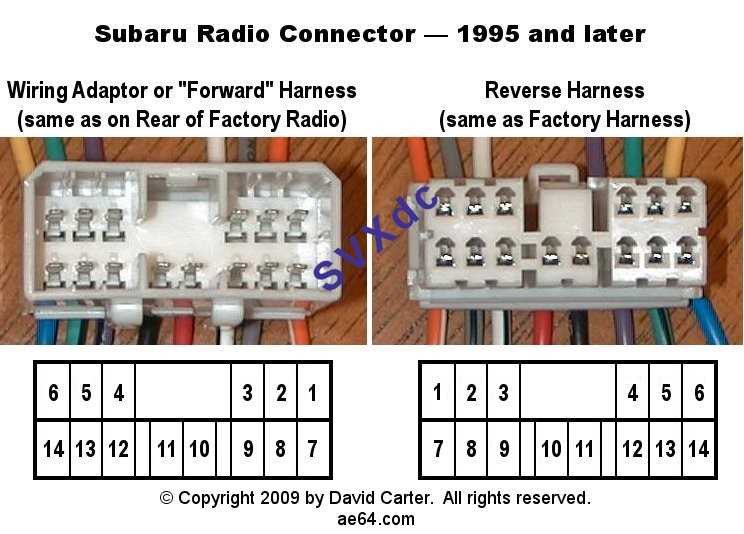

Label each connection clearly and separate power lines from audio or signal lines to prevent interference. Check connector type and pin arrangement; most vehicles use rectangular multi-pin plugs, but some models employ circular or blade-style terminals. Confirm alignment visually and with a tester before making permanent connections.
