Ensure the main power supply is disconnected before inspecting or modifying any internal wiring to prevent shock or damage. Use a digital multimeter to confirm zero voltage across terminals.
Identify the compressor, thermostat, and evaporator fan first, as these components govern temperature control and airflow. Mark each wire using colored labels or numbers to maintain clarity during assembly.
Follow manufacturer specifications for wire gauge selection. Standard 16 AWG wires handle most domestic loads up to 10 amps, while relay and sensor connections often require 18–20 AWG.
Map the energy flow from the main switch to the thermostat, compressor, and fans. Ensure overload protection devices such as fuses or circuit breakers are correctly rated for the applied voltage and load.
Double-check all connectors and terminals for secure contact. Loose or corroded connections can cause intermittent operation, excessive heat, and potential component failure.
For monitoring or modification, trace pathways using a continuity tester. Label components in a consistent format, documenting relay points, sensors, and auxiliary switches.
Maintain proper spacing and insulation between high-voltage lines and low-voltage control wires to reduce interference and avoid accidental shorting. Use cable ties and protective sleeves where necessary.

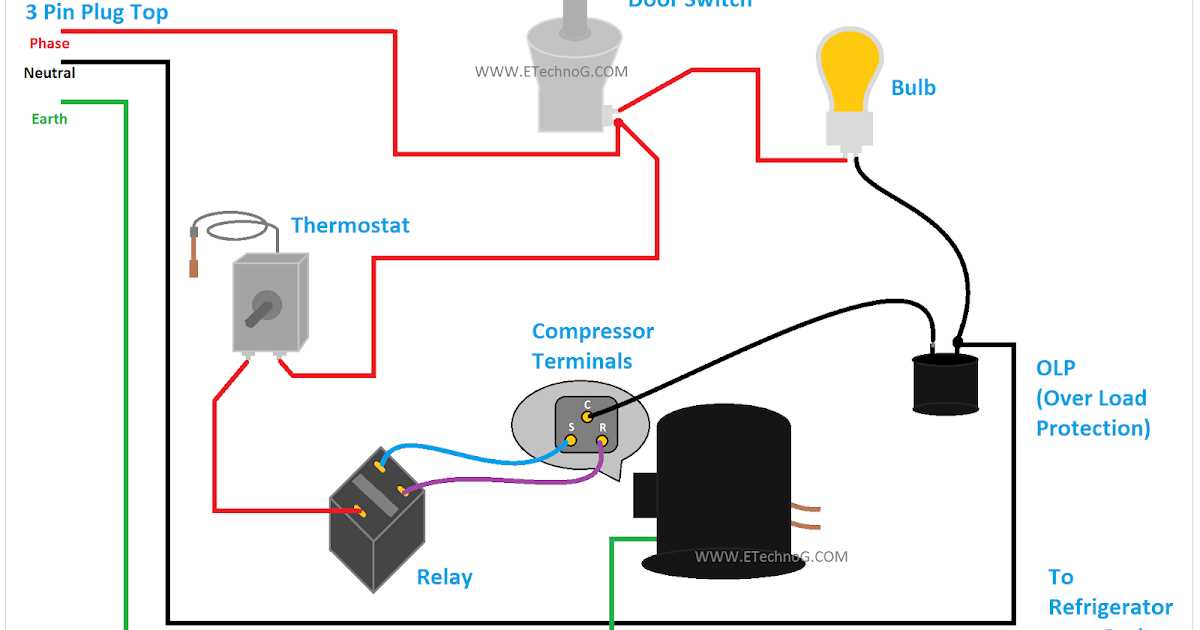

Electrical Schematic Showing Compressor Thermostat Fan and Wiring Layout
Disconnect power before any inspection and verify zero voltage with a multimeter. Identify the main supply lines that feed the compressor, thermostat, and evaporator fan to prevent accidental shock.
Trace the thermostat connections first, as it regulates compressor operation. Ensure the sensor leads are correctly positioned near the cooling coils to maintain precise temperature control.
The compressor receives direct feed from the main relay or overload protector. Confirm that wire gauges match the manufacturer’s rating–typically 14–16 AWG for standard residential compressors handling 3–5 amps.
Check fan wiring and motor terminals for continuity and insulation. Inline capacitors for fan motors must be rated according to voltage and microfarad specifications to prevent motor burnouts.
Mark all junction points and relays in the schematic using consistent labels. Include details for defrost heaters, door switches, and auxiliary sensors to avoid miswiring during maintenance or replacement.
Maintain separation between high-voltage lines and low-voltage control wires. Secure cables with clips and sleeves to prevent vibration wear and accidental shorts, ensuring reliable operation over time.
Identifying Key Components and Their Connections
Start by locating the compressor terminals and verify the power leads are properly labeled. This allows you to trace the high-current path and understand load behavior under normal operation.
Inspect the thermostat wiring next, noting that the sensor probe should be positioned near the cooling coils for accurate temperature regulation. Confirm the connections match manufacturer polarity markings.
Examine the evaporator fan motor and its associated capacitor. Ensure the start and run windings are correctly identified and connected to prevent motor stalling or overheating.
Identify all relay and overload protector contacts in the schematic. Label the common, normally open, and normally closed terminals to simplify troubleshooting and replacement tasks.
Trace auxiliary components such as defrost heaters and door switches. Verify each lead is insulated and routed to avoid interference with high-voltage lines, maintaining safe separation and operational integrity.
Check indicator lights and low-voltage sensors for continuity and proper connection. These components provide feedback on operational status and must be integrated correctly to alert users of anomalies.
Mark all junction boxes and connectors with consistent codes. Documenting each connection ensures accurate reassembly after maintenance and prevents accidental cross-wiring that could compromise system function.
