Match the color-coded leads precisely to prevent signal loss or short circuits. Use a multimeter to verify each conductor before linking it to the receiver or amplifier.
Identify the positive and negative channels for front and rear speakers to maintain correct phase and sound clarity. Label each connection during disassembly to simplify reinstallation.
Follow the factory harness routes to avoid interference with airbag circuits or vehicle electronics. Secure loose wires with clips or ties to prevent rattles and accidental disconnections.
Double-check grounding points for the audio module. A poor chassis connection can cause hum or distorted output, so ensure bolts are clean and torque is sufficient.
Test each component individually before final assembly. Power the receiver, play a test track, and confirm all channels output correctly, adjusting fader and balance as needed.
Vehicle Audio Connection Layout Guide
Confirm each lead matches the correct channel before joining it to the head unit or amplifier. Use a continuity tester to verify connections and prevent accidental short circuits.
Label front and rear speaker lines during removal to preserve channel orientation. Incorrect pairing can reverse phase, causing muffled or hollow sound. Follow this sequence for proper setup:
- Left front positive and negative
- Right front positive and negative
- Left rear positive and negative
- Right rear positive and negative
Secure all harnesses along factory pathways to avoid interference with airbags, lighting, or electronic modules. Check grounding points on the chassis, tighten screws, and test the system individually to confirm each speaker and subwoofer responds correctly. Adjust fader and balance for uniform sound coverage throughout the cabin.

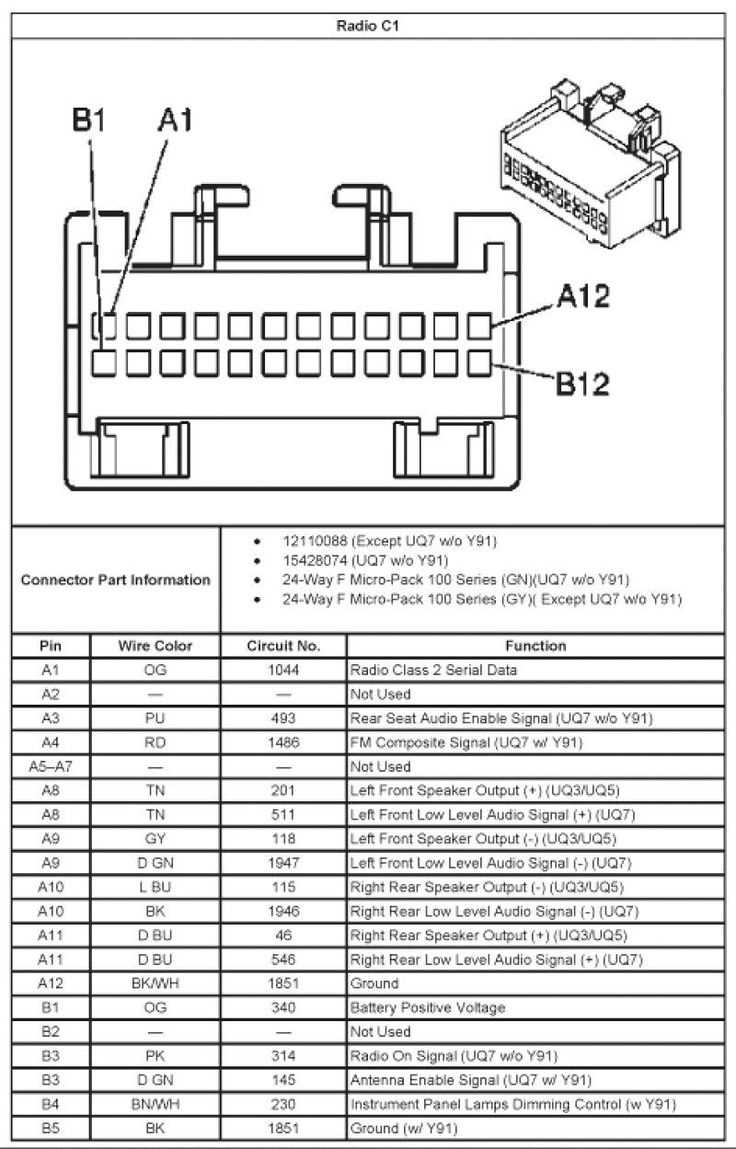

Identifying Wire Colors and Functions in the Audio System
Match each conductor to its corresponding channel using the color code printed on the harness. Incorrect connections can reverse phase or mute specific speakers.
Front left and right leads typically use white and gray wires with a black stripe for the negative terminals. Confirm polarity with a multimeter before attaching to the head unit.
Rear channels are usually green and purple with black stripes for negative. Label each set during removal to simplify reassembly and maintain correct sound staging.
Power lines include a constant 12V lead, often yellow, for memory retention, and an ignition-switched 12V lead, commonly red, to supply the receiver only when the vehicle is on.
Ground connections are generally black and must be securely attached to the chassis. Loose or corroded grounds produce humming or intermittent audio interruptions.
Speaker and Amplifier Integration

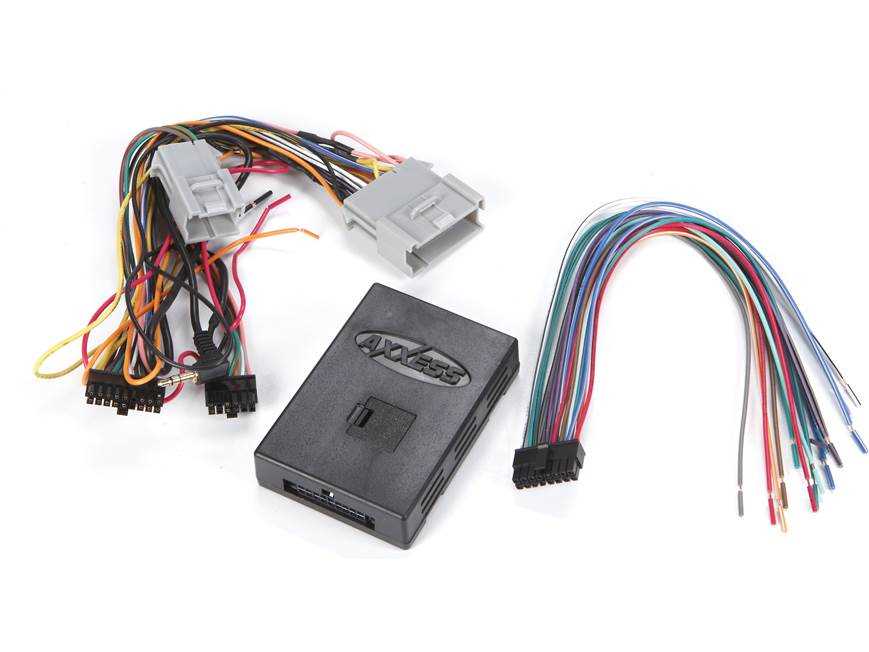

When integrating external amplifiers, use the remote turn-on wire, usually blue, to trigger the amp. Run separate power and signal lines to prevent interference, keeping them away from door harnesses or airbag circuits.
Signal and Accessory Leads
Some modules include illumination, parking brake, or mute leads. These are often thin and color-coded differently. Trace each line carefully using a schematic to avoid triggering safety or display issues.
Test each connection individually before final assembly. Apply power, play a test track, and verify channel output, ensuring fader and balance are correctly aligned for even sound distribution.
