Use a step-down transformer rated for mains input and roughly half the output amplitude. A laminated core unit with a primary winding designed for European household supply and a secondary delivering about 115-volt alternating output provides stable reduction without complex electronics. Select a model with a power margin of at least 30–40 % above the load demand; for example, a device drawing 150 W should be paired with a transformer rated near 200–220 VA to prevent overheating during continuous operation.
The wiring layout normally includes a fuse on the input line, a power switch, and thermal protection placed before the primary winding. The protective fuse value is calculated from the expected input current: divide the load power by the mains potential and increase the result by about 20 %. For a 200 W load on a typical European supply near 230 V, the current approaches 0.87 A, therefore a 1 A slow-blow fuse is commonly selected to tolerate short startup surges from magnetic cores.
On the secondary side, two output terminals deliver alternating voltage suitable for devices designed for North American-style supply. Add a metal-oxide varistor and a small RC snubber network across the primary winding to suppress spikes generated by switching or grid disturbances. If the load contains sensitive electronics, integrate a small LC filter after the secondary winding; a choke of 1–3 mH paired with film capacitors around 0.1–0.47 µF reduces high-frequency noise traveling from the power line.
Mount the transformer on a ventilated metal chassis and keep the primary and secondary wiring separated by several centimeters. This spacing lowers the risk of insulation breakdown and reduces electromagnetic coupling. Proper grounding of the chassis and clear labeling of the high-voltage input terminals completes a reliable layout suitable for powering equipment designed for approximately half the amplitude of standard European mains.
AC 230→115 Step-Down Transformer Wiring Layout
Use a step-down transformer rated for at least 1.3× the expected load power; for example, a device drawing 150 W should be supplied through a unit rated near 200 W. Primary winding connects to the 230-volt mains through a 2 A slow-blow fuse and a metal-oxide varistor (470–560 V clamping level) placed across the input lines. The secondary winding provides approximately 115 V alternating output suitable for appliances designed for North American power systems. Keep the transformer laminated core grounded and mount it with rubber isolators to reduce vibration and acoustic noise.
Recommended component arrangement:
- Primary protection: 2 A slow-blow fuse placed before the transformer input.
- Surge suppression: MOV rated around 14D471 across line and neutral.
- Thermal safety: 90–110 °C thermal cutoff attached to the winding insulation.
- Output filtering: optional 0.1 µF X2 capacitor across the secondary to reduce high-frequency interference.
- Isolation distance: minimum 6 mm clearance between high-voltage input traces and low-voltage output wiring.
For loads exceeding 300 W, select a toroidal transformer because it provides higher magnetic efficiency and lower stray electromagnetic field compared with EI-core types. Copper wire cross-section in the secondary should support at least 1.2 A per 100 W of load at ~115 V output. Install a power switch on the primary side only, never on the secondary. Ventilation slots around the transformer enclosure should allow at least 20–30 mm free airflow space to prevent winding temperature from exceeding 75 °C during continuous operation.

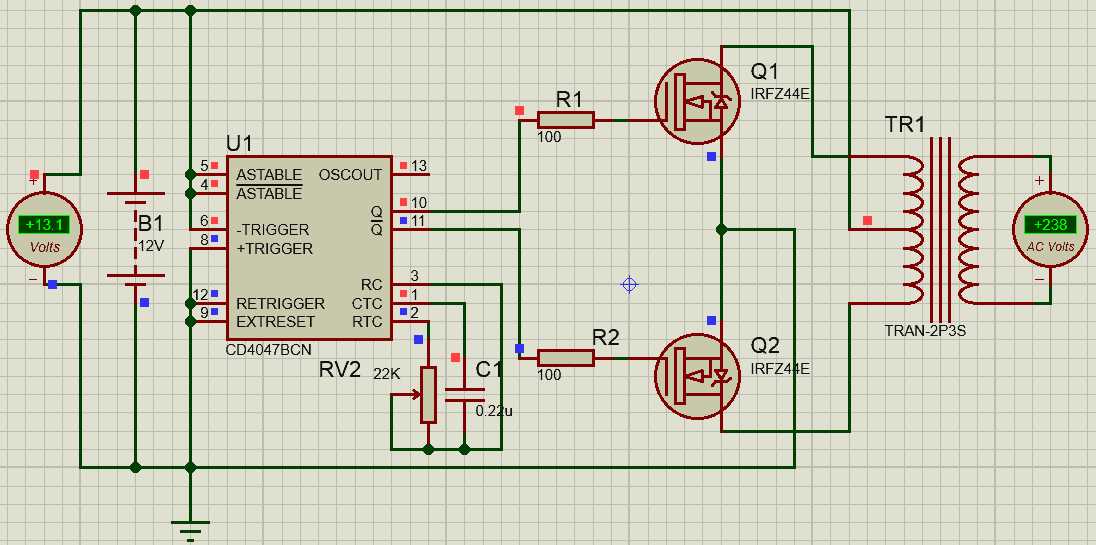

Step-Down Transformer Based 220V to 110V AC Converter Circuit Diagram with Component Values
Select a laminated iron core transformer rated for a primary winding of 230 V AC and a secondary winding close to 115 V AC with power capacity between 120 VA and 200 VA. For small appliances under 80 W, a 150 VA unit offers sufficient margin. The primary side connects directly to the mains through a 1 A slow-blow fuse and a double-pole power switch. The secondary output feeds the load through a protective fuse rated 1.25–1.5 A.
Use a toroidal or EI-core transformer with winding ratio approximately 2:1. Typical component example: transformer T1 – 230 V / 115 V, 150 VA; primary fuse F1 – 1 A slow-blow; secondary fuse F2 – 1.5 A fast-acting. Install a metal-oxide varistor rated 275 VAC (MOV-14D471K or equivalent) across the primary winding to suppress voltage spikes from the supply network.
Add an EMI suppression capacitor across the primary terminals. A common value is 0.1 µF class-X2 polypropylene rated 275 VAC. This part reduces switching noise and line interference. Pair it with a 470 kΩ, 0.5 W resistor in parallel to discharge stored charge after power removal.
Thermal safety improves reliability during prolonged operation. Mount a 90 °C thermal fuse in series with the primary winding and attach it directly to the transformer body using heat-resistant tape. When internal temperature rises due to overload or poor ventilation, this element disconnects the supply before insulation damage occurs.
Output wiring should use copper conductors with cross-section not less than 0.75 mm² for loads below 200 W. Place the secondary fuse holder close to the output socket. A standard NEMA-type receptacle rated 125 V / 10 A can be used when powering devices designed for North American mains levels.
Grounding improves safety for metal enclosures. Connect the protective earth from the mains inlet directly to the chassis using a ring terminal and serrated washer. Keep the primary wiring separated from the secondary path by at least 6 mm clearance distance. This spacing reduces the risk of insulation breakdown between high and reduced potential sections.
Practical component list: T1 – 230 V/115 V 150 VA transformer; F1 – 1 A slow-blow fuse; F2 – 1.5 A fast fuse; MOV1 – 275 VAC varistor; C1 – 0.1 µF X2 safety capacitor; R1 – 470 kΩ 0.5 W discharge resistor; TF1 – 90 °C thermal cutoff; S1 – double-pole 250 VAC switch; output receptacle – 125 V 10 A. Assemble these elements on an insulated terminal block or small mounting plate inside a ventilated enclosure.
