Match each twisted pair correctly to maintain signal integrity and prevent cross-talk. Use the standard T568A or T568B configuration, keeping the orange and green pairs aligned precisely with the corresponding pins in the modular connector.
Trim conductor lengths evenly and insert them fully into the connector before crimping to ensure solid contact with the metal contacts. Verify that the outer jacket reaches the connector to provide strain relief and prevent untwisting of pairs.
Check continuity after termination using a network tester. This confirms that each pair carries the correct signals, avoids shorts, and ensures the cable can support Gigabit transmission speeds without interference.
Label both ends of the cable clearly to simplify troubleshooting and network organization, especially in environments with multiple connections. Consistent color coding and documentation reduce errors when modifying or extending the network in the future.

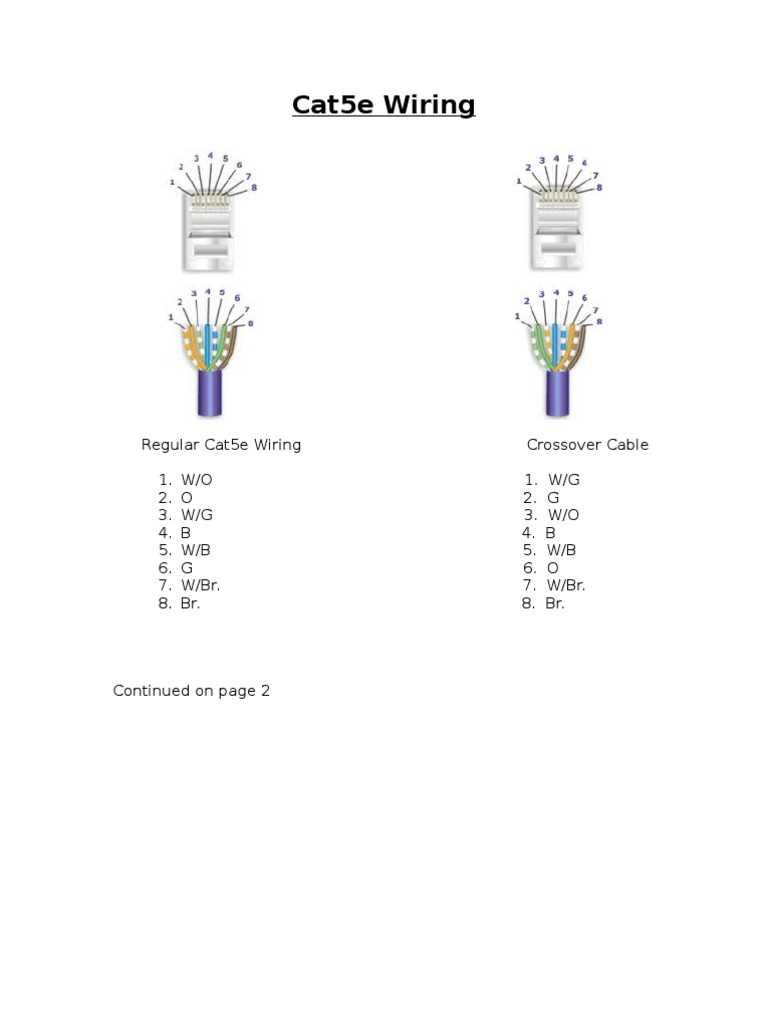

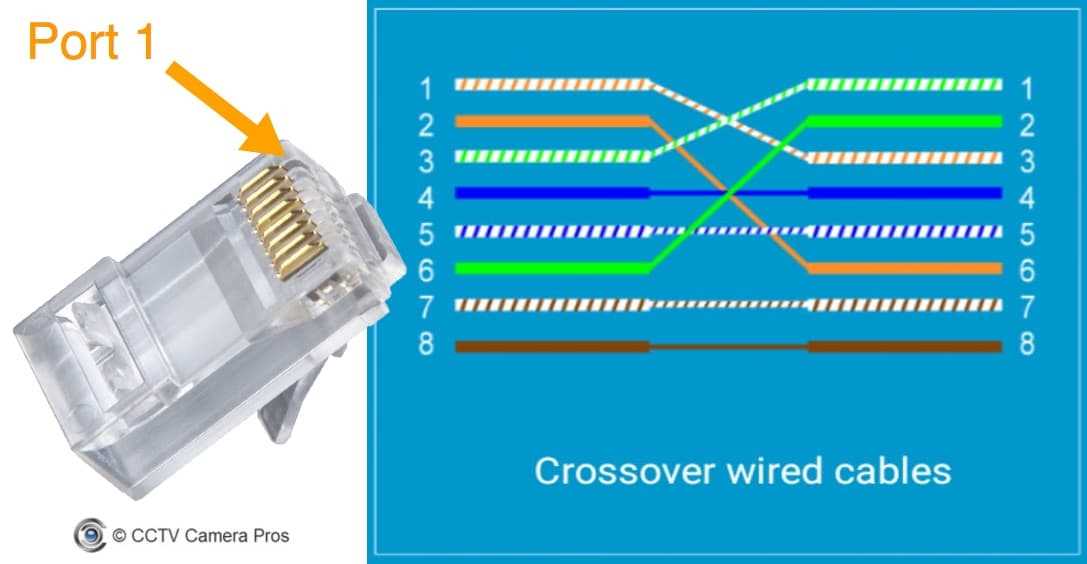

Network Cable Pinout and Connection Guide
Arrange the twisted pairs according to the T568A or T568B standard to maintain signal clarity and prevent interference. Ensure each conductor reaches the correct slot in the connector, and the outer jacket extends into the plug to secure the cable properly.
Test the connection after crimping using a continuity tester. This confirms each pair transmits data correctly, avoids short circuits, and guarantees performance up to 1 Gbps. Label both ends clearly and document the pin sequence for easier network management in multi-cable installations.
Understanding Cable Color Codes and Pairing
Match each colored conductor to its corresponding pair to ensure proper signal flow. Standard colors include green, orange, blue, and brown, each with a striped counterpart. Accurate pairing prevents cross-talk and maintains reliable data transmission.
Follow consistent pin assignments when terminating the connectors. Adopting the same sequence at both ends reduces errors and simplifies troubleshooting in dense network setups.
Use a color chart to verify each conductor before crimping. Misaligned pairs can create intermittent connectivity issues, especially in high-speed installations exceeding 100 meters.
Keep twists intact until the connector slot. Untwisting too much of a pair increases susceptibility to electromagnetic interference, which can degrade signal quality.
Label both ends of the cable immediately after assembly. This practice helps technicians quickly identify connections, particularly in racks or patch panels with numerous runs.
Test each pair with a continuity tester or network analyzer. Checking for shorts, opens, or mispairing ensures the link meets performance standards and supports gigabit speeds without packet loss.
Document the color-to-slot assignments in a simple chart for future maintenance. Maintaining a reference prevents mistakes during expansions or repairs, streamlining network management and reducing downtime.
