Begin by ensuring the ignition is turned off and the vehicle’s battery is disconnected to avoid any electrical mishaps. Strip the insulation from the wires you intend to use, exposing about 1.5 inches of copper. Carefully inspect the copper to ensure there are no frayed strands, as they can cause electrical issues later.
Identify the key terminals on the module, which include the power, ground, and ignition connections. Each terminal will be clearly marked to ensure the correct wire is connected. The power terminal should be attached to the vehicle’s power supply, while the ground wire connects to the vehicle’s chassis or a dedicated ground point. Make sure to check the module’s manual for any additional connections specific to your setup.
After connecting the wires, secure them in place with the provided connectors and double-check that all connections are tight and properly insulated. A loose connection can result in a malfunction or failure to start the vehicle remotely. It’s also important to test the system before fully reassembling the components to ensure the starter system is working as expected.

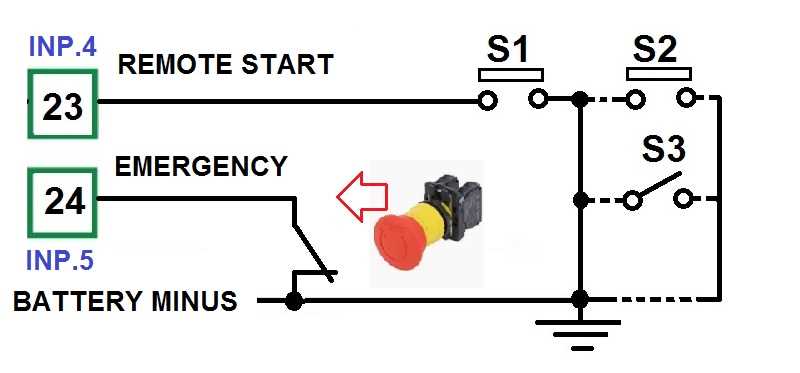

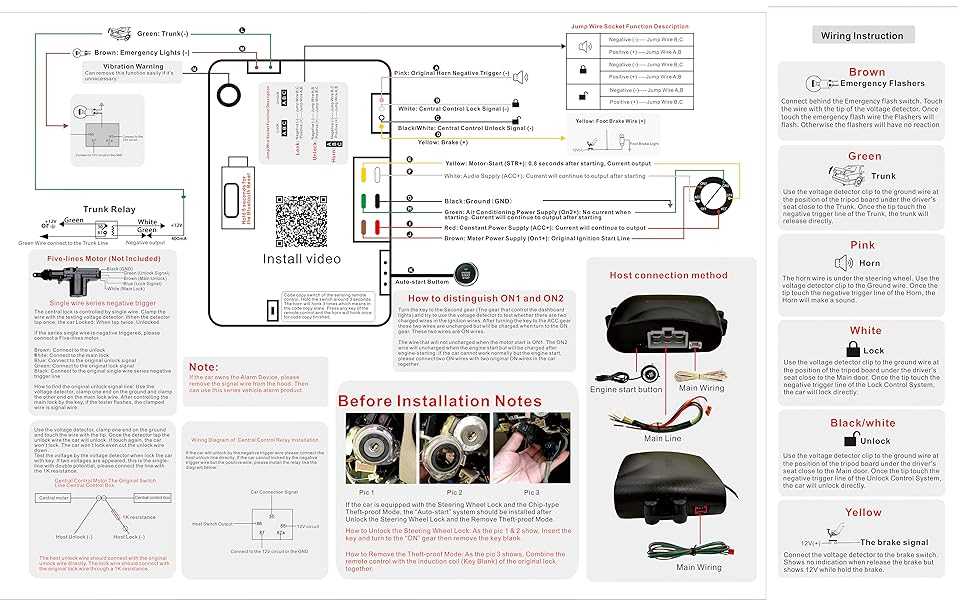

Wiring Diagram for Remote Start System
To properly set up the vehicle’s starter system, begin by preparing the necessary tools. Ensure that you have the right connectors, wire strippers, and a multimeter for testing. Before any connections, disconnect the battery to prevent accidental short circuits or electrical shocks.
The first step in the connection process involves identifying the key components that need to be connected. Most systems have three primary wires: power, ignition, and ground. These wires are crucial for enabling the system to function properly. Connect the power wire to the vehicle’s battery positive terminal, the ignition wire to the ignition switch, and the ground wire to the vehicle chassis.
Identifying Additional Wires
Once the main wires are connected, you may need to handle additional wires depending on the system type. These could include wires for accessories like lights, horn, or security systems. Each of these wires should be routed according to the module’s instructions. Make sure they are properly insulated and secured to avoid accidental disconnections during operation.
For ignition circuits, it’s important to make sure that the wire you connect matches the proper ignition terminal. Incorrect connections can prevent the system from turning on or off, which will lead to the failure of the setup. Double-check each connection with a multimeter before finalizing the installation.
Once all the main and additional wires are secured, it’s time to test the system. With the battery reconnected, use a multimeter to check that voltage is flowing through the wires correctly. Verify that the power wire is delivering 12V and that the ground wire is properly connected to the vehicle chassis.
Final Checks and Testing
Before fully assembling the system, test the connections by attempting to trigger the system. If everything is connected properly, the system should engage as expected. If there are any issues with the system not activating, revisit each connection to ensure that no wires are loose or improperly attached.
After confirming everything is working, reassemble the parts of the system and secure the wires inside the vehicle. It’s crucial to ensure that the wires are not exposed or at risk of being damaged. Make sure all connections are tight and insulated to prevent malfunctions or electrical hazards in the future.
Identifying the Correct Wires for Remote Start Installation
Start by examining the vehicle’s ignition system to locate the key wires. The most important connections will be the power, ignition, and ground wires. Each of these wires serves a distinct purpose: the power wire connects to the vehicle’s battery, the ignition wire is responsible for starting the engine, and the ground wire provides the necessary return path for the electrical current.
Locating the Power Wire
The power wire is typically colored red and connects directly to the positive terminal of the vehicle’s battery. This wire provides the necessary voltage to the system. Before making the connection, ensure the vehicle’s battery is disconnected to avoid any risk of electrical shock. Once secured, use a multimeter to verify that the wire is receiving the correct voltage, usually 12 volts.
The ignition wire, which is usually colored brown or green, connects to the ignition switch. This wire is responsible for activating the vehicle’s electrical systems when the key is turned. Be sure to locate the correct terminal at the ignition switch by consulting the vehicle’s service manual. Misidentifying this wire can result in failure to start the vehicle or improper system activation.
Connecting the Ground Wire
The ground wire, typically green or black, must be securely attached to a clean, metal surface on the vehicle’s chassis. This ensures a stable ground connection for the system to function properly. Check that the metal surface is free from rust or paint, as this can interfere with the connection and cause grounding issues. If necessary, use a sandpaper or wire brush to ensure a clean connection.
After identifying and securing these key wires, double-check all connections before reconnecting the vehicle’s battery. Use a multimeter to verify that each wire is properly connected and that the correct voltage is present. Once confirmed, test the system by following the module’s instructions to ensure the system engages correctly and safely.
