Always identify each lead according to its function before making any connections. The power supply, data positive, and data negative lines must be clearly marked to prevent reversed current or data errors.
Check voltage levels on the power lines to ensure they match the device’s specifications. Overvoltage can damage integrated circuits, while undervoltage may prevent proper operation.
Use a multimeter to verify continuity between each connection point and the corresponding pins on the device. Confirm that data paths are complete and free from resistance that could cause communication failures.
Keep conductors organized and separated from heat sources and moving parts. Secure each line with clips or ties to maintain a stable connection and reduce the risk of shorts or intermittent signals.
USB Port Connection and Pin Assignment Guide
Identify each conductor clearly before linking to any terminals. Mark the power supply line, data positive, and data negative leads with color-coded sleeves or labels to avoid mistakes during connection.
Measure voltage on the supply line to ensure compatibility with the device’s specifications. Standard connections usually require 5 volts, but some modules support lower currents for specialized devices.
Confirm continuity on data lines using a multimeter. A break or high resistance in these paths can result in failed communication or intermittent operation between the interface and connected equipment.
Keep all leads organized and separated from heat sources or mechanical parts. Secure each line using clips or straps to prevent accidental contact, shorts, or disconnections during movement or vibration.
Check pin orientation according to the component markings. Each terminal should correspond to its function: supply, return, or data line. Incorrect placement can reverse signals or damage devices.
Integrate additional modules carefully by maintaining consistent connections for power and return lines. Multiple modules sharing a single source must have a common reference to prevent signal interference or malfunction.
Perform functional tests by activating each data and power path individually. Confirm that each line delivers correct voltage and stable communication without voltage drops or signal loss.
Document connection layout for future maintenance or troubleshooting. Keeping a clear reference reduces time spent on repairs and ensures proper operation after replacements or upgrades.
Identifying Power and Data Pins for Correct Connections
Always verify each terminal before connecting. Use a multimeter to check the voltage on supply and return lines to ensure correct placement. Misidentifying pins can cause permanent damage to sensitive components.

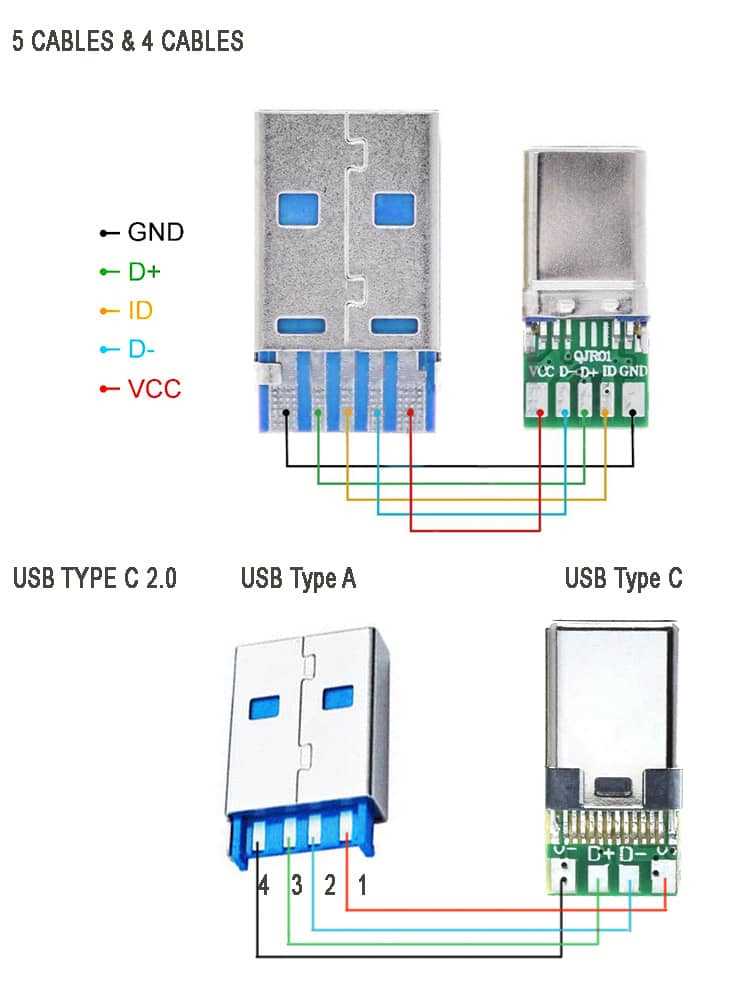

Standard pin assignments typically include:
- Power line: Provides a stable 5 volts or the required supply voltage.
- Ground line: Returns current to the source and completes the circuit.
- Data positive: Carries differential signal for device communication.
- Data negative: Completes the differential pair for reliable data transfer.
Trace each conductor carefully from the connector to the device terminals. Avoid assuming orientation based on color alone, as variations exist between manufacturers and cable types.
Test signal lines individually before full operation. Connect the data pair and measure continuity, ensuring no short circuits exist between power, return, and communication leads.
Label all connections for future reference. Color-coded sleeves or numbered tags reduce errors during installation and maintenance, particularly when multiple devices share a single power source.
- Measure supply voltage at the device end.
- Confirm ground continuity with the source.
- Verify data pair signals using a logic analyzer.
- Reconnect and retest if any discrepancies are found.
