Ensure the system is powered off before linking control modules to prevent short circuits or damage to electronic components. Use a multimeter to verify that no live voltage is present on the terminals.
Identify the correct terminals for heating, cooling, and fan operation. Standard labels include R, C, W, Y, and G, and color codes typically match red for power, white for heat, yellow for cooling, and green for the fan motor.
Route each wire carefully to avoid interference or contact with metal surfaces. Maintain a neat and organized connection layout to facilitate future troubleshooting or maintenance. Double-check continuity after securing each conductor.
For systems with a common wire (C), confirm the existing HVAC transformer can handle the additional load of the smart module. Use a voltage meter to ensure stable 24V AC supply across all terminals before powering the system.
Connecting Thermostat to Home HVAC Systems
Turn off the main power at the breaker before attaching any control module to the heating and cooling unit. Verify with a voltage tester that no live current is present on the existing terminals to prevent damage or short circuits.

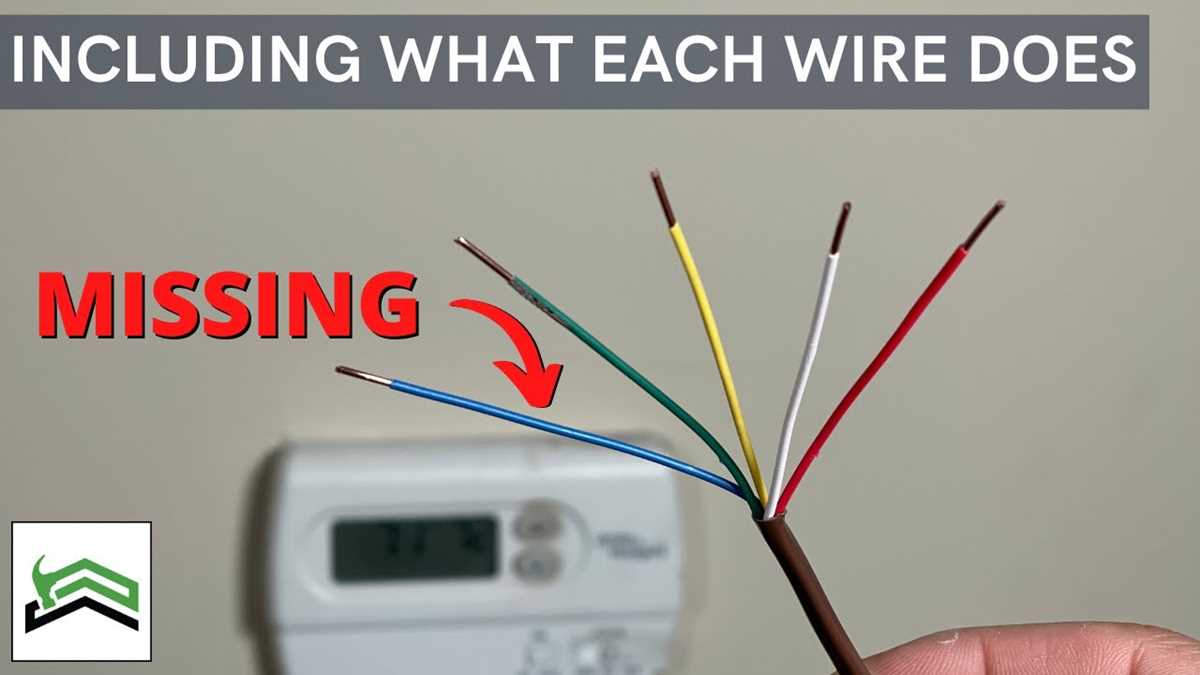

Identify the correct leads for each function:
- R (Red) – 24V power from the transformer
- C (Blue or Black) – Common wire for continuous power
- W (White) – Heating control
- Y (Yellow) – Cooling control
- G (Green) – Fan activation
When connecting, maintain clear separation between conductors to avoid cross-contact. Secure each wire under its screw terminal firmly but without stripping excess insulation. Use a multimeter to check continuity after all leads are attached.
Verify compatibility with your HVAC system’s voltage and relay configuration. Single-stage and multi-stage units may require different terminal connections. Label each wire to match the corresponding terminal on the thermostat base before securing the faceplate.
After connections are complete, restore power and observe the startup sequence. Confirm that heating, cooling, and fan functions respond accurately. Adjust settings on the device interface and monitor temperature changes for at least 10–15 minutes to ensure proper operation.
Identifying Terminal Labels and Wire Colors for Accurate Installation
Confirm each terminal’s function before connecting any conductor. The R terminal typically carries 24V from the transformer, while C provides a common return path. Misidentifying these can result in system malfunction or blown fuses.
Use color-coded conductors to maintain clarity during installation. Standard conventions include Red for power, White for heating, Yellow for cooling, and Green for fan control. Verify existing labels match these colors before proceeding.
Label all wires at the point of detachment to avoid confusion. If labels are missing or faded, trace each line back to the HVAC unit using a continuity tester. Maintaining consistent identification reduces troubleshooting time and prevents operational errors.
Double-check that all terminals are tightened securely and that no insulation is caught under screws. After installation, test each function independently: heating cycles, cooling activation, and fan operation. Document the final connections for future reference or maintenance.
