Start by turning off the main power supply to prevent electric shocks before handling any circuitry. Identify the red, white, yellow, and green leads, which typically control heating, cooling, fan, and common connections. Label each wire with tape to avoid confusion during installation.
Use a multimeter to verify voltage across terminals before attaching any connectors. Match each colored line to its corresponding terminal on the control panel, following the manufacturer’s pinout guide. Ensure tight and secure connections to prevent intermittent operation or short circuits.
After securing the leads, switch the power back on and test each function individually. Set the unit to heating mode and confirm the furnace responds, then switch to cooling to check the air conditioning relay. Observe the fan activation and ensure all settings correspond to the intended temperature controls.
Connecting Control Panel Leads and System Circuits
Turn off the main power breaker before handling any connections. Identify the primary colored lines: red for power, white for heating, yellow for cooling, and green for the fan relay. Label each conductor to simplify installation and reduce mistakes.
Check the voltage at each terminal with a multimeter. Confirm continuity along each conductor and ensure there are no breaks in the line. Secure all screws tightly to maintain stable contact and prevent flickering or intermittent operation.

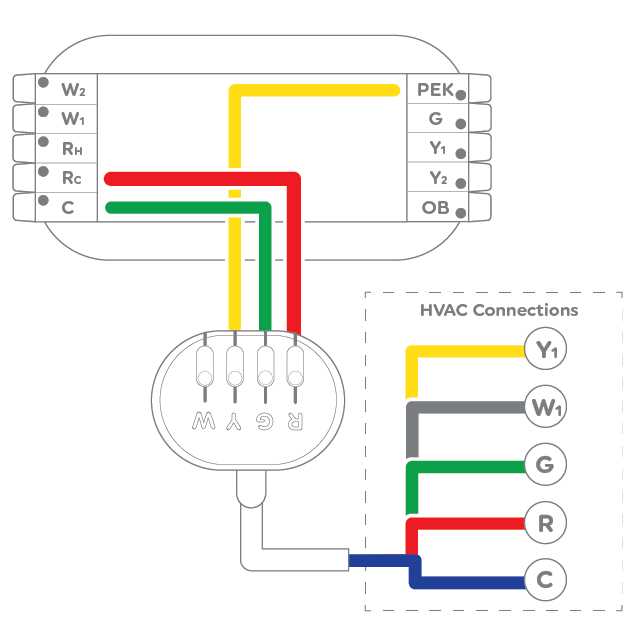

Follow the manufacturer’s pinout chart carefully.
- Red wire connects to R terminal
- White wire connects to W terminal
- Yellow wire connects to Y terminal
- Green wire connects to G terminal
Double-check all connections
before restoring power.
After restoring electricity, test each function individually. Activate heating mode and verify the furnace engages. Switch to cooling mode and ensure the air conditioning responds correctly. Observe the fan in both modes to confirm proper circulation.
If any function fails, reinspect each lead for loose or misconnected wires. Consider using a small voltage tester on each terminal while the system is operating. Document each connection for future reference or maintenance to avoid repeated troubleshooting.
Connecting Power and Common Wires Safely
Switch off the main breaker before touching any terminals. Locate the red conductor for the 24V supply and the blue or black lead for the common return. Use insulated tools to prevent accidental short circuits while making connections.
Strip only ¼ inch of insulation from each conductor. Insert the red wire into the R terminal and the blue or black into the C terminal. Ensure there are no stray strands that could touch neighboring terminals, which can trigger fuse trips or system faults.
Verifying Voltage and Polarity
After securing the leads, turn on the breaker and measure voltage across the R and C terminals. It should read approximately 24 volts AC. If readings differ, double-check connections and confirm that the transformer is supplying correct polarity before proceeding with other system circuits.
Preventing Loose Connections
Periodically inspect the terminals for tightness. Loose contacts can cause intermittent power loss or erratic behavior. Consider adding small cable ties to bundle wires neatly, reducing stress on terminals and maintaining a stable connection over time.
