For reliable network performance, connect your cables according to the color-coding standard used for twisted pair setups. Follow the T568A or T568B configurations to ensure that each wire is connected correctly from one end to the other. Misplacing even one wire can lead to issues like slower speeds or intermittent connections.
Start by stripping the insulation of each wire carefully, ensuring not to damage the copper inside. Arrange the wires in the right order, making sure they are not twisted or bent at sharp angles, as this can lead to signal degradation. After the wires are in the proper sequence, insert them into the connectors and use a crimping tool to secure them in place.
Once the cable is assembled, test the connections with a network cable tester. This tool will confirm whether each wire has been connected properly, preventing the need to troubleshoot later. Make sure your connections are firm and that there is no visible damage to the cable or connectors.
Cat 5 Wiring Setup
To set up the network cables correctly, adhere strictly to the T568A or T568B standards. These two wiring schemes define the specific color sequence for each twisted pair. Choosing one of these standards and maintaining consistency throughout your installation ensures the proper functioning of your network.
Begin by stripping the outer jacket of the cable, ensuring you expose enough length to work with but not too much to risk damage. When separating the wires, keep each pair twisted as closely as possible until it is time to separate them, to avoid interference and maintain signal integrity.

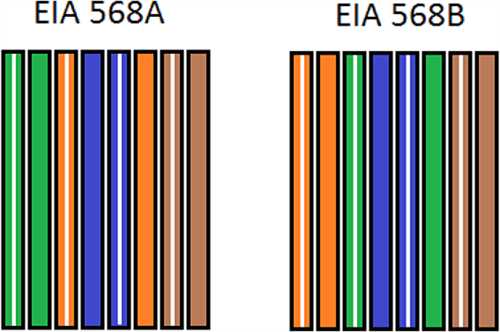

After separating the individual wires, arrange them in the correct order. For T568A, the sequence starts with white/green, green, white/orange, blue, white/blue, orange, white/brown, and brown. For T568B, the order is different but uses the same color pairs. Double-check the wire sequence before inserting them into the connector.
Insert the wires into the connector, making sure they are seated properly and that there is no excessive play. Use a crimping tool to secure the connector onto the cable. The tool will push the metal pins inside the connector into the wires, establishing a solid connection.
After completing the connections, it’s highly recommended to use a cable tester. This tool ensures that each wire is correctly connected and that the signal flows properly through the cable. A tester will alert you to any issues such as miswiring or broken connections.
Lastly, when running multiple cables, label each one at both ends to avoid confusion in larger installations. This helps you quickly identify each line, which is particularly helpful during troubleshooting or when making future adjustments to the network.
Step-by-Step Cat 5 Wiring Diagram for Beginners
Start by cutting the cable to the desired length, leaving extra to account for mistakes. Strip the outer jacket using a cable stripper, exposing about two inches of the internal wires. Be careful not to damage the wires themselves during this process, as any nicks can affect performance.
Arrange the Wires
Next, untwist the pairs of wires and arrange them according to the wiring standard you are using–either T568A or T568B. Lay the wires flat, ensuring that they follow the correct sequence. This step is vital, as a mistake in the wire order can prevent proper data transmission.
Insert and Crimp the Connector
After organizing the wires, insert them into an RJ45 connector. Push the wires all the way to the end of the connector, ensuring that each wire reaches the metal pins. Use a crimping tool to secure the connector firmly, pressing down on the tool to clamp the metal pins onto the wires. Check for a solid connection before moving on.
Finally, use a cable tester to verify the wiring. This will ensure that all connections are correct and the cable is functioning properly. If the tester shows an issue, retrace your steps, focusing on the wire order and the crimping process, as these are common causes of faulty connections.
