Start by ensuring the correct power supply for your installation. Make sure the circuit breaker is turned off before beginning any electrical work. The total load of devices to be plugged into the socket should be considered when selecting the wire gauge. For most residential applications, a 14-gauge wire is commonly used, but check the manufacturer’s recommendations for your specific setup.
Next, connect the power cables to the terminal screws on the socket. The live wire (usually black or red) should be connected to the brass screw, and the neutral wire (usually white) should be attached to the silver screw. Make sure all wires are properly stripped to expose the copper ends before attaching them. Secure each connection tightly to avoid any loose wires that could cause sparking or shorts.
Once all connections are made, test the installation using a voltage tester to verify the connections are secure and functioning. If the test is successful, restore power and check that the sockets are providing proper voltage. If any issues arise, double-check the connections and ensure there are no frayed wires or weak contacts.

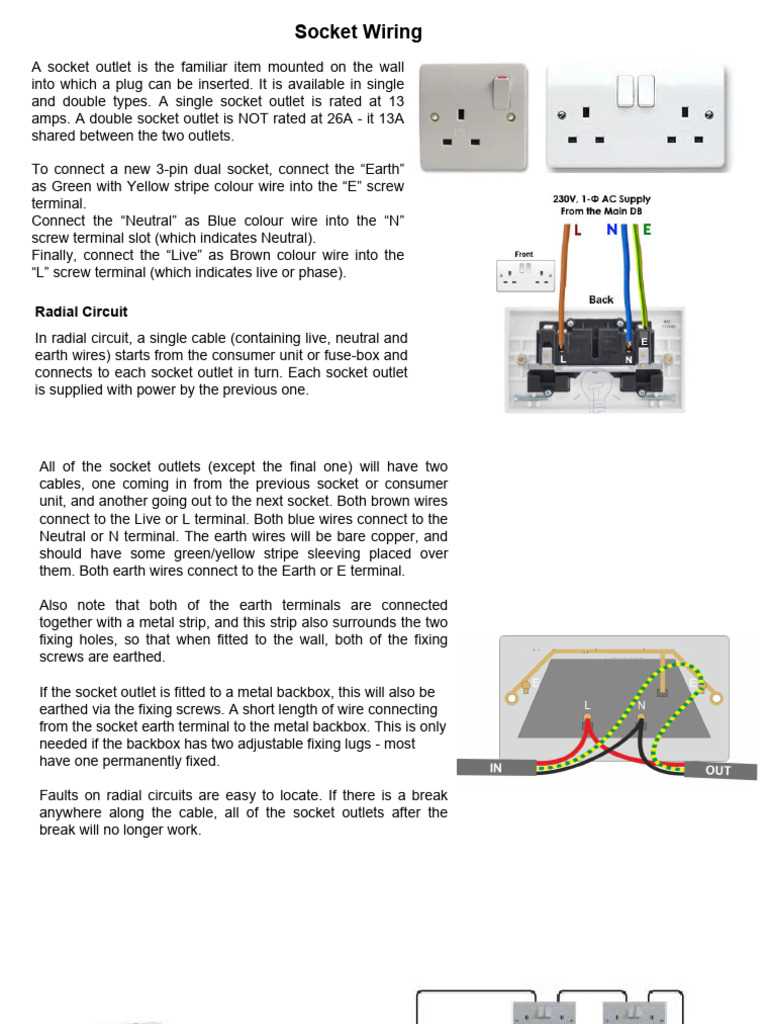

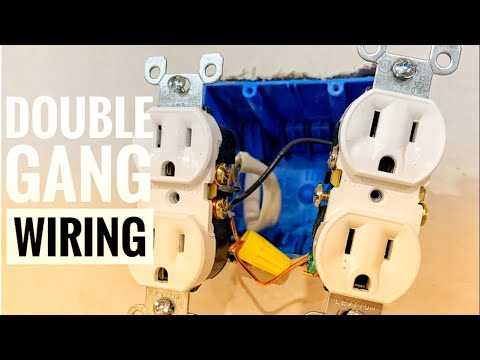

Wiring a Dual Socket Installation
Begin by turning off the main circuit breaker to ensure safety. This step is critical to prevent electrical shocks or accidents during installation. Use a voltage tester to double-check that the power is off before proceeding with any connections.
Next, select the appropriate wire gauge for the installation. Typically, a 14/2 wire is sufficient for most residential systems. However, depending on the amperage of the circuit and the devices being powered, a 12/2 wire may be necessary for higher loads. Always check local electrical codes to ensure compliance with regulations.
Prepare the wire by stripping about 3/4 inch of insulation from each end of the wires. You will need to connect the live wire to the brass screw, the neutral wire to the silver screw, and the ground wire to the green screw. Make sure to leave enough wire exposed for a secure connection.
When connecting the live wire to the terminal, twist the wire around the screw in a clockwise direction to ensure a tight connection. For the neutral wire, follow the same process with the silver screw. The ground wire should be connected to the green terminal using the same technique to ensure a secure and stable connection.
Once all wires are attached, gently push the wires into the back of the electrical box and secure the socket to the box using the provided screws. Ensure that no wires are pinched or exposed, as this could cause a short circuit or create a fire hazard.
After securing the socket, turn the power back on at the breaker panel and test the installation with a voltage tester. If everything is functioning correctly, the tester should show a proper reading. If not, turn the power off again and inspect the connections for any errors or loose connections.
Finally, once you’ve confirmed the installation works as intended, cover the socket with the faceplate and tighten the screws. Check the socket periodically to ensure the wiring remains intact and there are no signs of wear or damage that could affect its operation.
Choosing the Right Materials for a Dual Socket Setup
Select a high-quality copper conductor cable with appropriate insulation. A 14/2 or 12/2 gauge wire is ideal for most home applications, depending on the load requirement. Use wires with a PVC or THHN insulation type for better durability and heat resistance, especially for setups near heat sources. This ensures the cables can handle the voltage without degrading over time.
For the terminal connections, ensure you use durable screws and terminal connectors that can maintain a solid contact over time. Galvanized steel or copper terminals offer excellent conductivity and are resistant to corrosion. Additionally, always choose outlets with UL certification to ensure safety and reliability under typical home electrical loads.
