To begin the installation, remove the current socket and switch, ensuring all power is turned off at the breaker panel. The new setup requires installing a power source connected to a control switch, which will allow you to manage the flow of electricity. A standard power supply with a simple toggle switch will give you control over the socket, letting you turn it on or off as needed.
Next, connect the power supply to the control mechanism. The line (live) wire should be attached to the switch, while the neutral wire connects directly to the socket. This will allow the switch to control the live wire, ensuring that when the switch is off, the flow of electricity to the socket is interrupted. A correctly wired system ensures safety and functionality.
Once the basic wiring is completed, replace the socket and switch into their respective boxes, securing them tightly. Make sure all connections are solid and there are no exposed wires. After the installation, test the system by turning the switch on and off to verify the socket’s functionality.

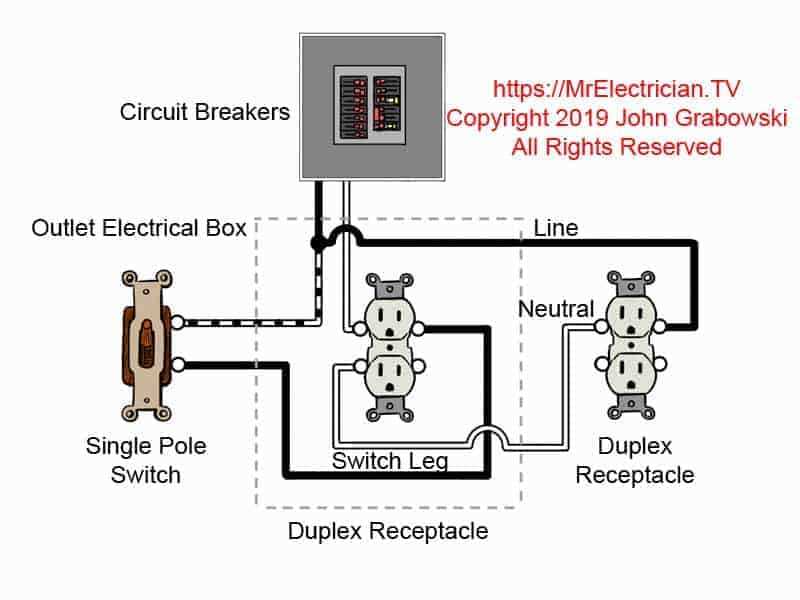

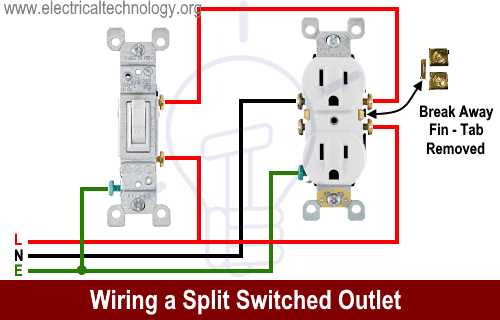

Wiring Guide for a Switched Outlet
To begin, shut off the main power at the breaker panel to avoid electrical hazards. Ensure the current socket and switch are properly disconnected before proceeding. It’s important to test with a voltage tester to confirm that the power is off before handling any electrical components.
First, remove the existing socket. You’ll need to connect the live wire (usually black) to one side of the switch. The neutral wire (usually white) will connect directly to the socket. This setup ensures that the switch controls only the live connection, cutting the power to the socket when turned off.
Next, strip the ends of the wires carefully to expose enough copper for the connections. Use wire nuts or terminal screws to secure the wires. Be sure the live wire is connected to the switch and the neutral wire to the socket. If you’re using a 3-prong socket, ensure that the ground wire is also connected to the designated grounding screw.
Once the connections are made, secure the socket and switch back into their respective boxes. Tighten the screws to hold the devices in place, ensuring that there are no loose connections. This is a critical step to prevent any issues during testing.
Test the system by turning the breaker back on. Flip the switch to ensure that the socket only receives power when the switch is in the “on” position. You can use a small lamp or voltage tester to check that the socket is correctly functioning.
After confirming the setup works, install the faceplate and tidy up any exposed wires. The installation is complete, and the outlet will now be controlled by the switch, allowing you to easily control the power supply. Always double-check your work to ensure everything is properly connected and secured. If in doubt, consult a licensed electrician for assistance.
Step-by-Step Instructions for Wiring a Switched Outlet
Begin by turning off the power at the breaker box to ensure safety while working with electrical components. Double-check that the power is completely off by testing the existing socket with a voltage tester.
Next, remove the faceplate and unscrew the existing outlet. Carefully detach the wiring connected to the terminals, noting where each wire is attached–this will be helpful for the new setup. Separate the wires and prepare them for connection to the new setup.
Now, take the live (black) wire and connect it to one terminal of the new switch. The neutral (white) wire should be connected directly to the socket. Ensure that the ground wire is attached to the grounding screw to prevent electrical shock hazards.
With the connections secure, mount the new switch and socket into their respective boxes. Tighten the screws to ensure that the devices are firmly attached and that no wires are exposed. Once the components are in place, install the faceplate to finish the installation.
Finally, restore power to the system by turning the breaker back on. Test the switch to verify that it correctly controls the socket. Use a voltage tester or a small lamp to check if the socket is properly functioning when the switch is toggled.
