Follow the manufacturer connection chart for the QO breaker panel before attaching service conductors. The chart shows where the two hot service lines connect to the main disconnect, where the grounded conductor lands on the neutral bar, and where equipment grounding conductors attach to the bonded ground bar. Correct terminal placement prevents overheated lugs, breaker misalignment, and reversed polarity inside the distribution cabinet.
This residential power distribution cabinet uses two vertical bus strips that carry 120/240-volt supply from the service entrance. Circuit breakers clip onto these energized rails and feed branch circuits throughout the building. Single-pole breakers supply 120-volt branch lines such as lighting and receptacles, while double-pole breakers bridge both rails and supply 240-volt equipment including electric ranges, dryers, water heaters, and heat pumps.
Typical service conductors entering the enclosure include two ungrounded lines and one neutral conductor. For a 100-amp installation, feeders commonly use 4 AWG copper or 2 AWG aluminum. A 200-amp service frequently uses 2/0 aluminum or 2/0 copper conductors depending on installation method and temperature rating. Each conductor must terminate under the correct lug with torque values specified by the panel manufacturer, often between 35 and 50 lb-in depending on the terminal size.
The internal layout drawing also identifies breaker positions along each bus strip. Circuits are usually arranged so that alternating breaker slots connect to opposite phases. This arrangement balances current between the two service legs and keeps neutral current within safe limits. Following the panel connection chart ensures proper conductor routing through knockouts, clear spacing around breakers, and secure termination on neutral and grounding bars.
Square D QO Load Center Wiring Diagram With Panel Layout and Breaker Connections
Follow the factory connection scheme before attaching any conductor inside a QO series breaker cabinet. The incoming service conductors enter through the top or bottom knockout and terminate on the main disconnect lugs. Two ungrounded lines connect to the main breaker terminals, while the grounded conductor attaches to the neutral bar. Grounding conductors must terminate on the grounding bar bonded to the metal enclosure. This arrangement routes current through the bus rails that distribute power to branch breakers.
Internal Bus Rail Layout
The cabinet contains two vertical power rails that alternate phase connection across breaker slots. Each breaker clips onto one rail or bridges both rails depending on type.
- Single-pole breaker connects to one rail and supplies 120-volt circuits
- Two-pole breaker bridges both rails and supplies 240-volt equipment
- Alternating slot pattern balances current between both service legs
- Neutral conductors terminate on an insulated neutral bar
- Equipment grounding conductors terminate on the bonded grounding bar
Breaker and Conductor Connections
Attach each branch conductor directly to the terminal screw on its breaker. Tighten terminals using the torque values listed on the cabinet label, typically between 25 and 45 lb-in depending on breaker size. Route conductors along the enclosure edge rather than across the bus area so breakers seat fully against the rails.
Typical residential branch circuits follow these conductor sizes:
- 14 AWG copper with 15-amp breaker for lighting circuits
- 12 AWG copper with 20-amp breaker for receptacle circuits
- 10 AWG copper with 30-amp two-pole breaker for dryers or water heaters
- 8 AWG or 6 AWG copper for larger appliances depending on rating
Keep neutral conductors isolated from the enclosure in subpanels. Bonding occurs only in the main service cabinet where the neutral bar connects to the enclosure through a bonding screw or strap. This separation prevents stray current on grounding paths and maintains proper fault clearing through the breaker system.
Square D QO Load Center Bus Bars Neutral and Ground Bar Wiring Layout
Place branch breakers directly onto the two vertical power rails inside the QO series distribution cabinet and keep conductors clear of the rail area. These copper rails carry the two service phases from the main disconnect and supply power to every breaker slot. Each rail alternates phase connection across breaker positions, which allows adjacent slots to connect to different service legs.

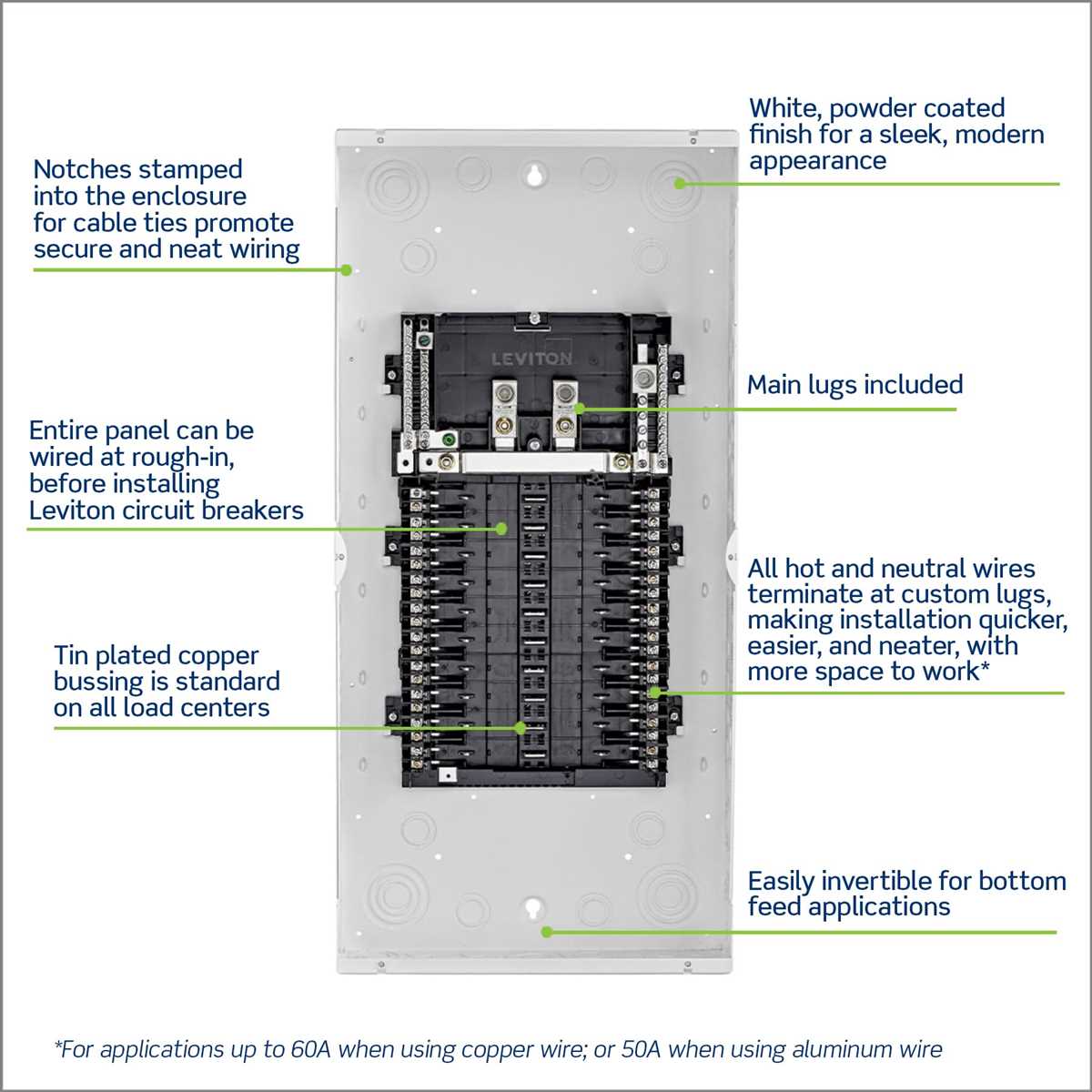

The rail assembly typically consists of plated copper strips mounted on insulated supports. When a breaker is pressed into position, its clip engages the rail and forms the electrical connection. This design distributes 120/240-volt supply across the cabinet without individual feeder jumpers between breakers.
Neutral Bar Arrangement
The neutral termination strip is mounted along the side wall of the enclosure and insulated from the metal body in sub-distribution units. Each grounded conductor from a branch circuit attaches to a dedicated terminal hole using a clamping screw. Most QO panels allow one neutral conductor per terminal. Do not place two grounded conductors under the same screw unless the panel label allows it.
Common conductor sizes supported by the neutral strip include:
14–10 AWG copper for lighting and receptacle circuits, 8 AWG copper for larger branch lines, and 6 AWG aluminum or copper for feeder connections depending on the cabinet rating.
Grounding Bar Placement
The equipment grounding strip mounts directly to the metal enclosure using machine screws that create electrical bonding with the cabinet body. Bare or green insulated conductors from branch circuits terminate here. Because this strip bonds to the enclosure, fault current travels through the cabinet and service grounding path, allowing the breaker to trip during a fault condition.
In the main service cabinet, a bonding screw or strap connects the neutral strip to the enclosure. In downstream distribution cabinets this bond must remain removed so that grounded conductors remain isolated from equipment grounding conductors.
Maintain clear routing of conductors along the side walls and use cable clamps at entry knockouts. Keep insulation intact near the rail assembly and avoid bending conductors sharply near breaker terminals. This arrangement preserves airflow inside the enclosure and prevents contact with energized rail surfaces.
