Begin with the main fuse block: ensure all terminals are clean and tightly secured to prevent voltage drops. Check the amperage rating printed on each connector; using a lower-rated terminal can trigger frequent shutdowns of the motor controller. Corrosion at this point is the leading cause of intermittent power loss.
Battery bank alignment matters: confirm the series and parallel configuration matches manufacturer specifications. Mismatched cells reduce torque and accelerate wear on solenoids. Use a voltmeter to verify uniform output across all terminals before reconnecting.
Throttle sensor connections: the small three-pin module requires snug attachment with no play. Loose pins often generate erratic acceleration or delayed response from the drive system. Apply dielectric grease to the pins to maintain consistent signal transmission under moisture exposure.
Lighting and accessory circuits: separate high-draw items such as headlights or stereo systems with dedicated fuses to prevent overload on the main harness. Label each wire at junction points to streamline future troubleshooting and reduce risk of short circuits.
Controller interface: trace the main positive and negative lines from the battery to the electronic control unit. Misrouted cables can lead to sudden system shutdowns or blown fuses. Double-check polarity markings and secure all connectors with locking tabs for reliable operation.
Wiring Setup for EZGO Electric Vehicle
Begin by identifying the battery terminals and matching them with the controller inputs. The positive lead should connect directly to the main fuse, while the negative must attach to the chassis ground to prevent shorts. Use 8-gauge cables for reliable current flow.
Throttle assembly connections differ between older and newer models. For a 1994–1999 unit, link the potentiometer wires to the speed controller according to color codes: red for power, green for signal, black for ground. Verify continuity with a multimeter before securing connectors.

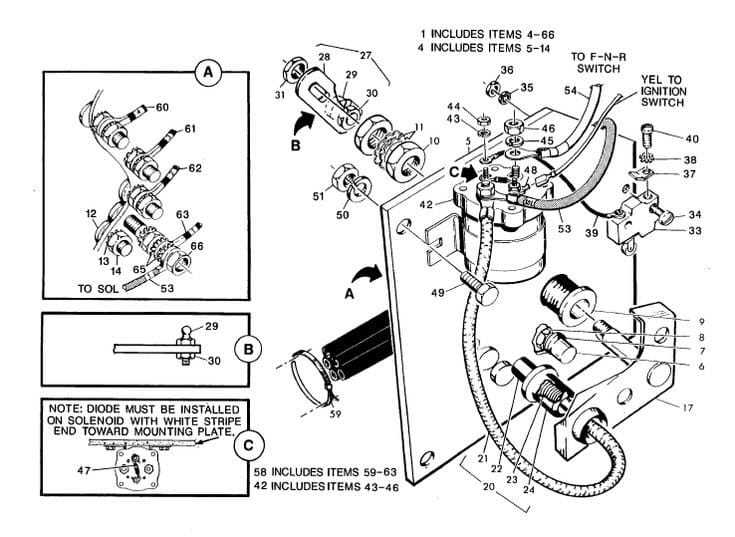

Solenoid positioning affects the starter relay operation. Mount it close to the battery bank, ensuring the control wires are insulated from metal surfaces. Attach the coil leads directly to the accelerator pedal switch to maintain consistent engagement.
Headlight and accessory circuits require separate fuses. Use a 15-amp inline fuse for lights and a 10-amp fuse for the horn and turn signals. Route wires along the frame, avoiding sharp edges or heat sources, to prevent insulation wear and electrical shorts.
Final testing should include measuring voltage drop across each connection while the motor is active. Anything over 0.2 volts indicates resistance that can cause overheating. Tighten all bolts and secure cable clamps before operating the vehicle at full power.
Identifying Key Connectors and Terminals on EZGO Models
Start with the main power harness near the solenoid: the thick red and black leads connect directly to the battery pack and are secured with 10mm nuts. Check for corrosion at these terminals, as even minor buildup can cause voltage drops. On 2008–2014 models, the forward/reverse switch plugs into a keyed connector with white, green, and yellow wires–ensure each wire is seated fully to prevent intermittent contact.

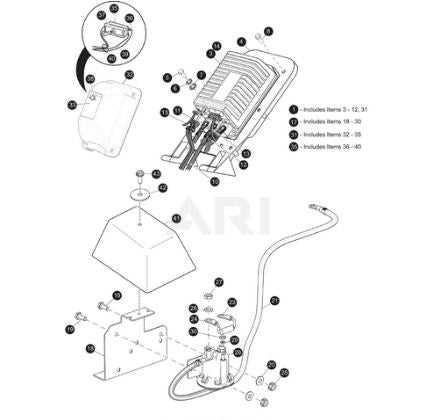

The motor controller features several smaller connectors: a 6-pin block for throttle input and brake interlock, typically color-coded gray and blue. Disconnect the plastic cover to inspect pins for bent or recessed terminals. On gas-powered models, the ignition switch terminal assembly includes a red/white stripe wire for accessory power and a black ground; these can wear over time, so gently wiggle each connector while monitoring voltage continuity.
Battery-to-Controller Linkage
Focus on the battery cable lugs secured with carriage bolts; loose mounting can mimic a dead controller. Inspect the terminal ends for frayed strands or discoloration from heat. Additionally, solenoid output connectors for the forward/reverse relay are often pressed-fit spade types; push firmly until you hear a click, then lightly tug to verify retention. Consistently labeling each connector during service saves hours of troubleshooting later.
