Ensure the generator is mounted securely with all bolts tightened to the manufacturer’s torque specifications. Loose mounts can cause misalignment, creating noise and reducing output.
Attach the main power lead directly to the battery positive post using a properly rated fuse within 12 inches of the terminal. This prevents overcurrent damage and protects both the generator and vehicle electronics.
Ground the unit to the engine block using a clean, paint-free surface. A poor ground can reduce charging efficiency and cause voltage fluctuations that affect sensitive electronics.
Route the signal or field wire carefully away from heat sources and moving components. Secure it with clips or loom to avoid chafing and potential shorts that could stop the generator from regulating correctly.
Verify output with a multimeter after all connections are made. Check for proper voltage at idle and higher RPM to ensure the generator is maintaining battery charge without overvoltage.

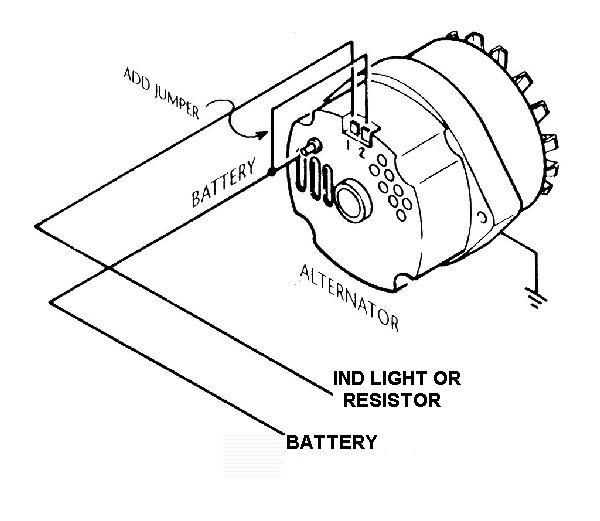

Single Wire Alternator Connection Guide
Attach the output lead directly to the battery positive terminal using a fuse rated to match the generator’s maximum current. This prevents overloads and ensures stable charging under all operating conditions.
Mount the generator securely on a flat bracket, ensuring the pulley aligns with the engine belt. Misalignment can create belt wear and reduce energy transfer efficiency.
Connect the case or chassis terminal to a clean engine ground. Remove paint or corrosion at the contact point to minimize resistance and voltage drop.
Route the field or signal lead away from hot surfaces and moving parts. Secure it with clips or conduits to avoid abrasion and maintain consistent excitation of the generator.
After all connections are completed, check voltage at the battery with a digital meter. Voltage should rise smoothly from idle to higher RPM, confirming proper regulation and full charging capability.
Inspect all terminals periodically for corrosion or looseness. Tight connections and clean contacts prolong generator life and prevent intermittent charging failures.
Identifying Terminals and Mounting Points
Locate the main output terminal and mark it clearly before connecting to the positive battery post. Ensure the connector is compatible with the terminal size to avoid loose contact and overheating.
Identify the grounding stud on the case and verify it has a direct metal-to-metal connection with the engine block. Clean any paint or corrosion to reduce resistance and ensure proper current flow.
Check the mounting brackets and bolt holes for proper alignment with the engine. Using the wrong position can cause belt misalignment and premature wear on pulleys and bearings.
Use a torque wrench to tighten all bolts to manufacturer specifications. Verify that terminals are insulated where necessary and that all electrical contacts are secure and free from debris to maintain consistent operation.
