Begin by disconnecting the power to the fixture at the breaker panel. Remove the existing bulbs and ballast if present, as they are no longer necessary for newer lighting systems. Ballast removal is a key step in this process, as it will simplify your setup and allow direct wiring to the power source.
Next, ensure that the correct power wires are available for connection. Typically, you’ll have a black wire (hot), a white wire (neutral), and a green or bare copper wire (ground). If your fixture has additional control features, like dimming or a remote, you may have extra wires to account for.

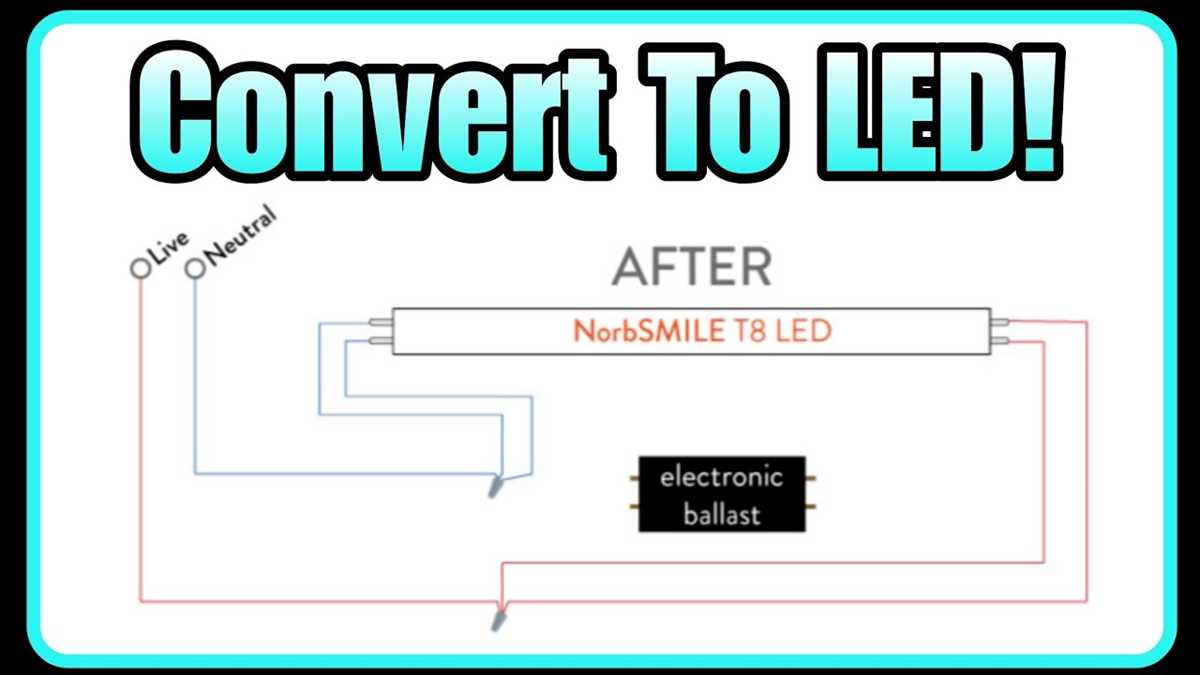

Once all components are prepared, wire the new light source directly to the power supply. For models with a bypass feature, you’ll connect the hot and neutral wires directly to the lamp holder. This eliminates the need for an intermediate ballast, improving both reliability and energy efficiency.
Finally, double-check each connection with a voltage tester before re-energizing the circuit. This will ensure there are no shorts or loose connections that could result in failure or hazards. After confirming the system is properly wired, restore power and test the functionality of the new setup.
Wiring for Transition from Traditional Lighting to Energy-Saving Units
Start by turning off the power at the circuit breaker. Remove the existing tube and disconnect the ballast, as it’s no longer needed for the new setup. Carefully disconnect all the wires attached to the ballast and prepare the fixture for the new setup. Ensure all old wiring is safe and insulated to avoid any short circuits during installation.
The new light unit will typically have three main connection points: the live (hot), neutral, and ground. The live wire, usually black, should be connected to the power supply. The neutral wire, often white, should connect to the neutral terminal of the new fixture, while the ground wire (green or copper) must be attached to the metal frame or ground screw in the junction box.
If the new fixture uses a bypass or direct-connect system, you will need to wire the fixture directly to the power supply without using any ballast. This direct connection eliminates the ballast’s need and reduces potential points of failure. Make sure that the fixture is properly grounded to avoid any electrical hazards.
For light fixtures that have more advanced features like dimming or smart control, check for additional wires. A blue wire typically controls the lighting, while other wires might manage the motor or fan. These must be carefully connected according to the manufacturer’s instructions to ensure proper functionality.
- Black wire: Connects to the power (live).
- White wire: Connects to the neutral terminal.
- Green or copper wire: Connects to the ground terminal or fixture frame.
- Additional colored wires: Used for controlling features like brightness or speed.
Before securing the fixture in place, double-check all wire connections with a multimeter to ensure no loose or improperly connected wires. Test the system by restoring power to the circuit and confirming that the unit operates as expected. If the light does not turn on, recheck all connections to ensure they are correct and secure.
Steps to Remove Fluorescent Ballast and Prepare for LED Conversion
Begin by turning off the power at the breaker to ensure safety during the process. Use a voltage tester to confirm that there is no current flowing to the fixture before proceeding.
Next, remove the cover or diffuser that is protecting the light tubes. This will give you clear access to the tubes and the ballast. Carefully slide the tubes out of their sockets and set them aside in a safe place.
Once the tubes are removed, locate the ballast, which is usually mounted on the ceiling or in the fixture housing. Depending on the model, it may be held in place by screws or clips. Unscrew or unclip the ballast, being cautious not to damage any other components.
Disconnect the wires attached to the ballast. These wires may be secured with wire nuts, so use a screwdriver or pliers to carefully remove them. The ballast will typically have three or more wires connected to it, including the hot (black), neutral (white), and sometimes a ground wire (green or copper).
After the ballast is disconnected and removed, inspect the remaining wires for any damage or wear. Cut away any excess wire if needed and strip the ends to prepare them for direct connection to the new fixture. Make sure the wires are clean and in good condition to avoid poor connections later.
- Hot (black) wire: Remains for connection to the new light unit.
- Neutral (white) wire: Will also remain for connection.
- Ground (green or copper) wire: Should be connected to the ground terminal of the new fixture.
Now that the ballast is removed and the wires are prepped, your fixture is ready for the new setup. Follow the manufacturer’s instructions for wiring the new lighting unit and make the necessary connections. Once the installation is complete, secure the fixture back into place and test the new system.
