Connect the main supply conductors directly to the service terminals using copper wires rated for high current loads. Ensure all connections are tight and free of corrosion to prevent overheating or voltage drops.
Install a grounding rod and bond it to the enclosure to maintain proper electrical safety. Verify that neutral and ground conductors are separated within the distribution compartment to avoid fault currents on unintended paths.
Organize circuit breakers by load type to simplify maintenance and minimize interference. Label each feeder accurately, and confirm that branch circuits match the rated capacity of the protective devices to prevent nuisance trips or overloads.
High Capacity Service Panel Setup
Attach the main supply lines directly to the bus bars using copper or aluminum conductors rated for heavy load. Ensure each terminal is tightened to the manufacturer’s torque specification to avoid overheating and arcing.
Separate neutral and grounding conductors within the enclosure to prevent stray currents. Connect a grounding electrode conductor to a driven rod or existing ground system, verifying continuity with a multimeter before energizing circuits.
Arrange branch circuit breakers by priority and load type:
- Lighting and general outlets on separate feeders
- Kitchen appliances grouped for high-demand circuits
- HVAC and large motors on dedicated breakers
Label all circuits clearly and confirm the total load does not exceed the rated service capacity. Double-check torque on all lugs, verify wire insulation ratings, and maintain proper clearance around the panel for safe operation.
Step by Step Connection of Main Service Wires

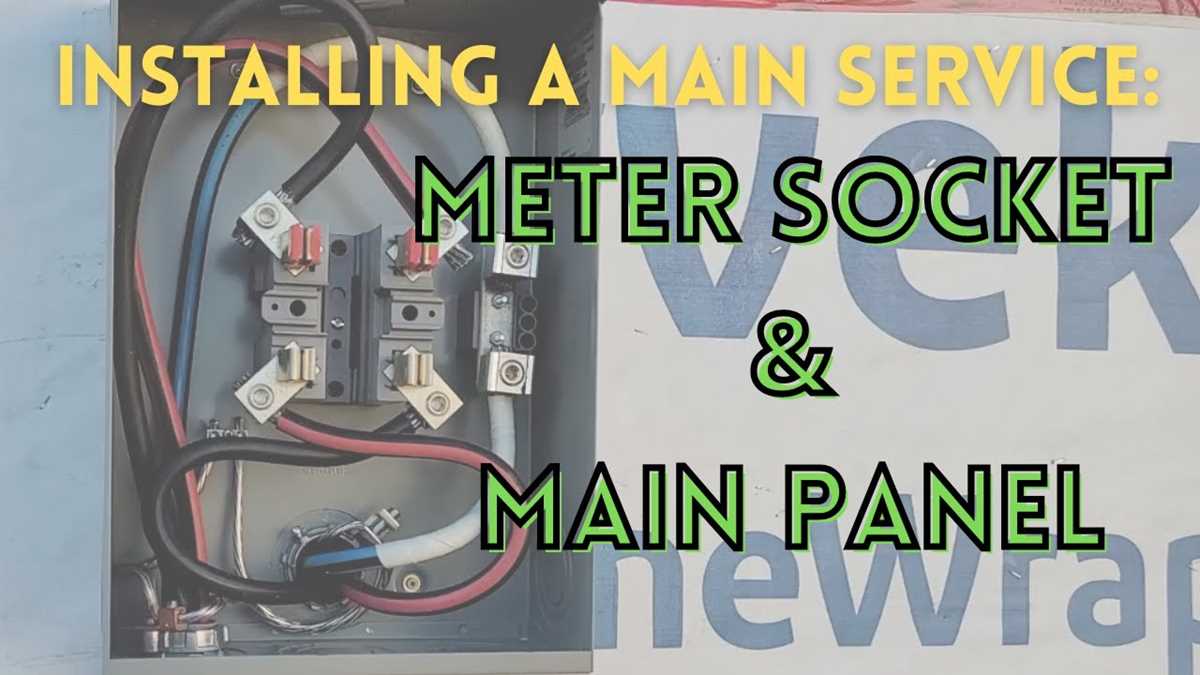

Attach the incoming utility conductors to the service lugs inside the enclosure using cable sizes rated for a high-capacity residential supply, commonly 2/0 AWG copper or 4/0 AWG aluminum. Strip insulation carefully without damaging the conductor strands, insert each line fully into the terminal, and tighten the lug to the torque value printed by the manufacturer, often between 250 and 300 lb-in. Use a calibrated torque wrench rather than a standard screwdriver to prevent loose contacts or crushed strands.
Route the two hot conductors and the neutral line along separate paths toward the main distribution panel, securing them with insulated clamps every 12–18 inches inside the cabinet. Keep bending radius wide enough to avoid stress on the cable jacket and ensure the neutral conductor connects to the neutral bar only, while grounding conductors attach to the grounding bar bonded to the enclosure. After termination, inspect insulation clearance, confirm that no copper strands protrude from the terminals, and verify continuity and phase alignment using a multimeter before energizing the service.
