To begin the installation of a rearview monitoring system, start by identifying the power source for the device. Typically, the red wire connects to a constant 12V power source, while the black wire should be grounded to the vehicle’s chassis. This ensures the system is properly powered for operation.
Next, connect the video signal wire to the display unit. The video cable is responsible for transmitting the live feed from the rear-facing unit to the monitor. The connection must be secure to avoid signal loss or distortion during use. Ensure that the cables are routed carefully to prevent any damage, and verify that the monitor receives a clear and stable image.
If your system includes parking sensors or a trigger for automatic activation when the vehicle is in reverse, be sure to connect the appropriate wires to the reverse light circuit. This will allow the display to automatically turn on when the vehicle is shifted into reverse, providing real-time visuals of the area behind you.

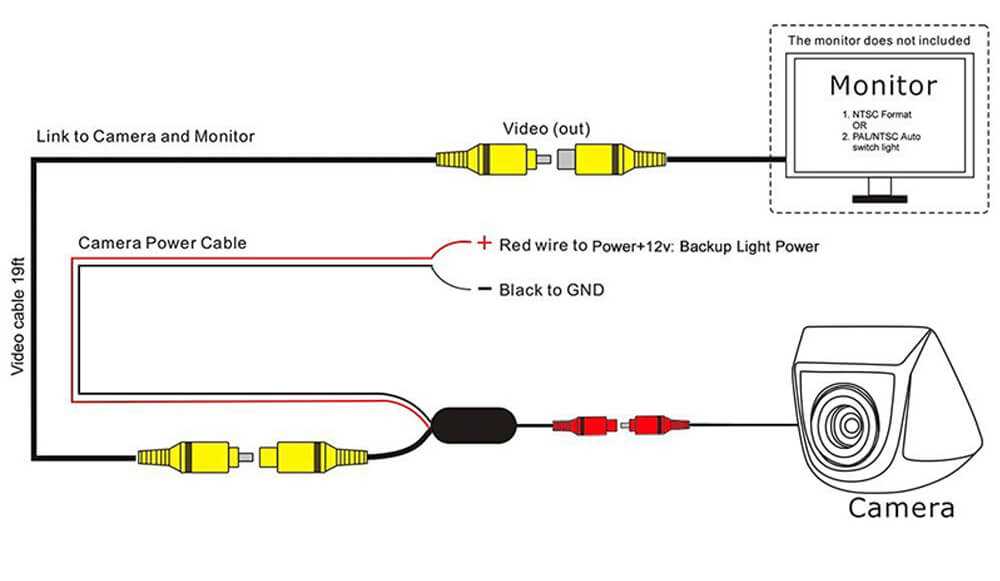

Wiring Setup for Rearview Monitoring System
Begin by connecting the power supply to the system. The first step is to locate a constant 12V power source in your vehicle, such as the fuse box. The red wire should be connected to this power source to provide a steady flow of electricity to the device.
The black wire is for grounding, and it needs to be connected to the vehicle’s chassis. A secure connection is necessary to prevent any electrical issues. Make sure the grounding point is clean and free from paint or corrosion for optimal performance.
Connecting the Video Signal
Next, route the video cable from the rear-facing unit to the monitor inside the vehicle. The cable should be long enough to reach the back of the vehicle without being too tight. Secure the cable along the vehicle’s interior to prevent it from getting pinched or damaged.
The video cable will typically have a plug that connects directly to the monitor. This allows the live feed from the rear-facing unit to be displayed on the screen. Ensure the video plug is firmly inserted into the correct port to avoid any signal loss.
Triggering the System Automatically
Many systems include a trigger wire that activates the display when the vehicle is put into reverse. To connect this, locate the reverse light circuit in the tail light area. The trigger wire is usually colored green or purple, and it should be connected to the reverse light wire to enable automatic activation when shifting gears.
If your system supports additional features like parking sensors or distance guidelines, connect the corresponding wires from the rear unit to the sensor wiring. Ensure each connection is secure and insulated to prevent interference or short circuits during operation.
Once all connections are complete, it’s important to test the system. Turn on the vehicle, shift into reverse, and check if the display activates automatically. Make sure the video feed is clear and that there are no power or signal issues.
How to Connect the Rearview System to the Power Source
To begin, locate a reliable 12V power source in your vehicle, such as the fuse box. The red wire from the system should be connected to this constant power source to ensure the device receives power even when the vehicle is off.
Next, connect the ground wire, usually black, to the vehicle’s chassis. Make sure to choose a clean, unpainted metal surface to ensure a solid connection. Poor grounding can lead to malfunctions, so ensure the grounding point is secure and free from rust or corrosion.
Choosing the Right Fuse
It’s important to install a fuse between the power wire and the 12V source. This fuse protects the system from power surges or short circuits. Choose a fuse with the proper amperage rating for your specific system, typically between 5-10 amps. Install the fuse in the power line near the connection to the fuse box for safety.
Running the Power Cable
Carefully route the power wire from the rear-facing unit to the power source, making sure to avoid any sharp edges or moving parts. The wire should be secured with cable ties along the vehicle’s interior to prevent damage. Be sure not to obstruct airbag systems or safety mechanisms with the cable.
When connecting the power wire to the fuse box, it is crucial to connect it to a terminal that provides continuous 12V power, even when the vehicle is off. This ensures that the system is always ready to operate when the vehicle is started.
Once connected, double-check all connections to ensure they are secure and properly insulated. Any exposed wire could lead to electrical shorts or signal issues, which can affect system performance.
After completing the connection, test the system by turning on the vehicle and checking the power. If everything is wired correctly, the system should be powered and ready for operation without any issues.
