Locate the main harness under the dash and identify the primary connectors for power, ground, and speaker leads. Use a multimeter to confirm which lines carry constant and switched voltage before attaching any aftermarket components.
Mark each conductor with colored tape or labels to prevent cross connections. Red typically indicates ignition power, yellow shows constant supply, black represents ground, and blue or green lines feed individual speaker channels.
Check continuity between the factory plug and the speakers to ensure no damaged lines. Any breaks or corrosion in terminals can cause intermittent sound or complete failure of the audio unit.
Consider using a harness adapter if installing a new stereo head unit. This preserves factory connectors, reduces soldering, and allows the original system to function without modifying the pickup’s main wiring bundle.
2010 F150 Radio Connection Guide
Begin by disconnecting the negative terminal of the battery to prevent shorts. Identify the factory harness under the dash and separate the power, ground, and speaker leads. Red leads carry switched power, yellow handles constant voltage, black is ground, and the remaining wires connect individual speaker channels. Confirm with a multimeter to avoid incorrect connections that could damage components.
Use a harness adapter when installing a new audio unit to maintain original plugs and avoid cutting factory wires. Secure connections with crimp terminals or solder and insulate with heat shrink tubing. After installation, test each speaker channel individually and verify that the display and controls respond correctly before reassembling the dash panels.
Identifying Factory Radio Harness and Wire Colors
Locate the stock audio harness behind the dash panel by carefully removing the trim and unscrewing the mounting brackets. The harness is typically a rectangular connector with multiple color-coded leads. Each wire serves a specific function including switched power, constant power, ground, and speaker connections.
Red wires provide ignition-switched power to the unit, activating it only when the key is turned on. Yellow leads supply constant voltage, maintaining memory for presets and clock. Black wires serve as the main ground and should be securely attached to a metal chassis point for proper operation.
Speaker leads follow a standard color pattern: white and white/black stripe for the left front channel, gray and gray/black stripe for the right front, green and green/black stripe for left rear, and purple with purple/black stripe for right rear. Using these codes helps prevent reversed polarity and phase issues.
Verify each wire with a multimeter before making connections. Measure voltage on the power leads with the key in the accessory position, and check continuity on the ground and speaker wires. This step ensures correct identification and avoids potential short circuits or blown fuses.

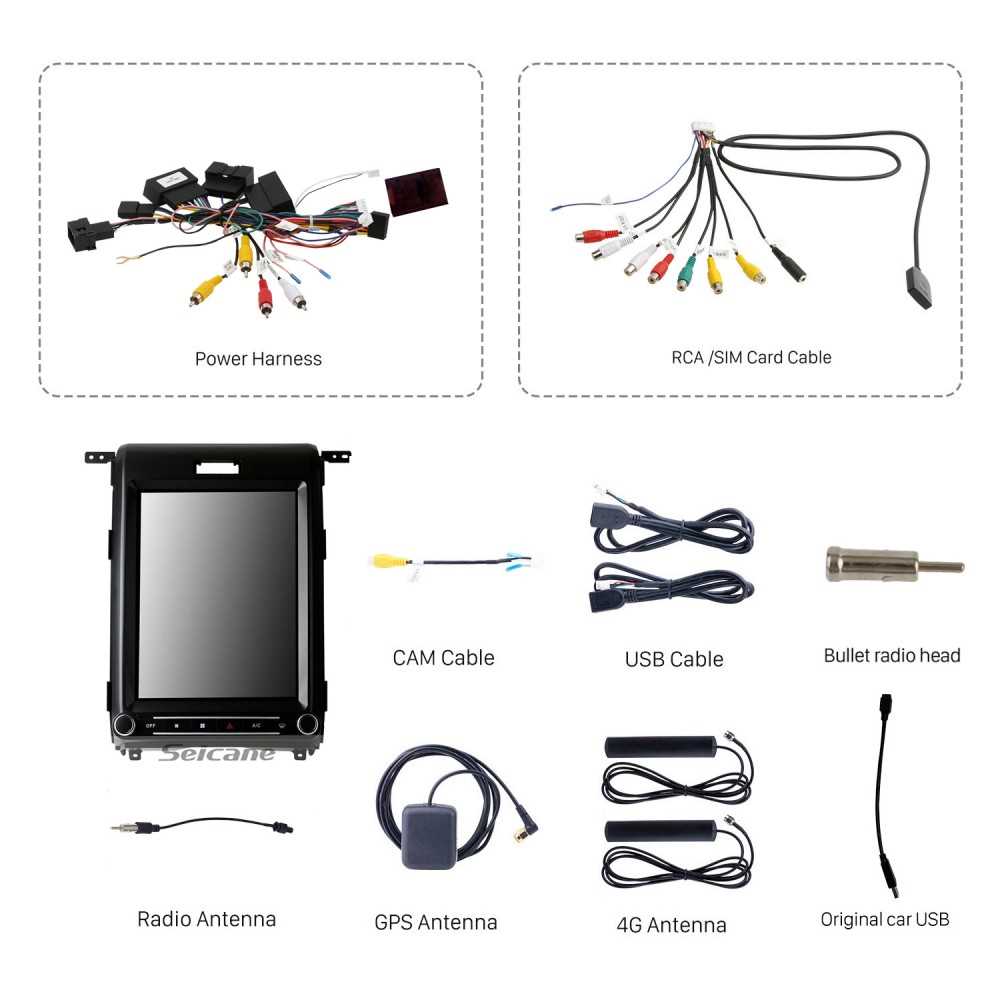

Consider using a plug-and-play harness adapter for aftermarket units. These adapters retain all factory connectors, eliminating the need to cut original wires. They simplify installation and preserve the vehicle’s original electrical integrity while making troubleshooting easier.
Once identification is complete, label each lead with masking tape or a small sticker. Clearly marking switched power, constant power, ground, and speaker channels reduces confusion during installation and ensures each connection matches the intended channel for optimal sound performance.
