For controlling a light from multiple locations, you’ll need to connect a series of devices that allow for such functionality. Begin by connecting the main power source to the first device in the chain. Then, connect the remaining components in the correct sequence to ensure smooth operation between each control point.
The first step is ensuring that each control point is properly linked to the power supply and that the appropriate conductors are used for the connections. Pay close attention to the correct placement of terminals to avoid electrical faults. You’ll also need to use the right type of wires to carry the correct current safely.
After making the primary connections, make sure to test the system thoroughly. Each switch should be able to turn the light on or off from any location without fail. If the system does not operate as expected, check all connections for possible errors, particularly the conductors that link the controlling devices together.

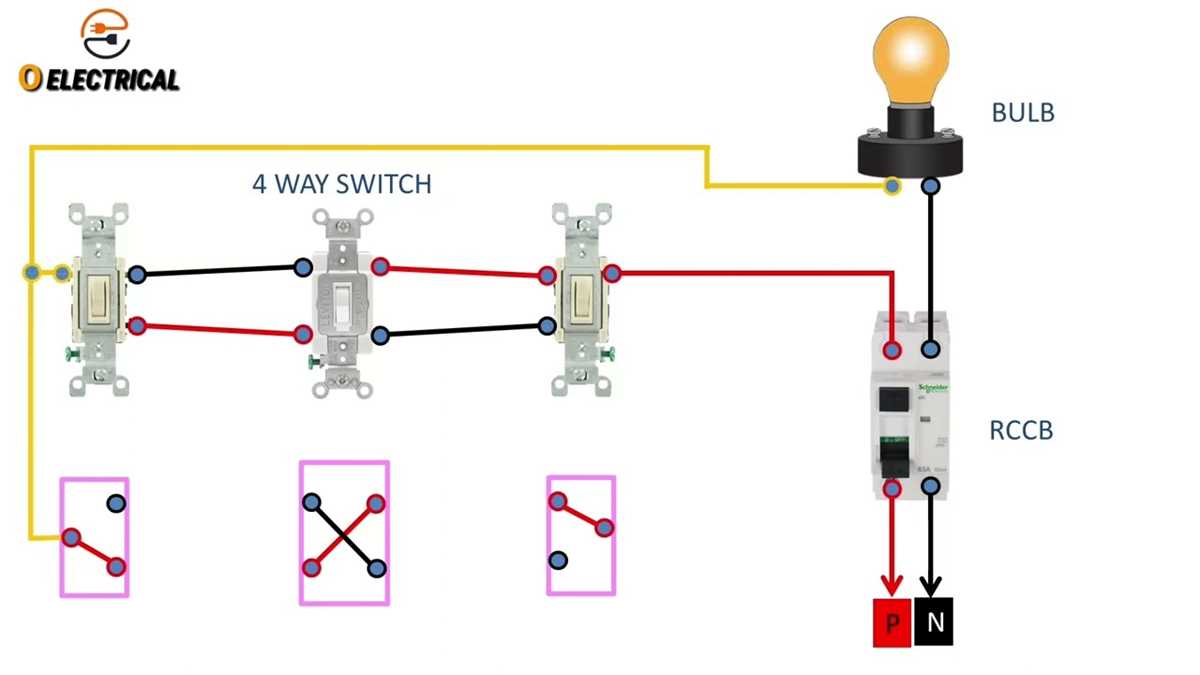

Wiring Diagram for 4 Way Switch
Begin by connecting the power source to the first device in the sequence, making sure the live wire enters the first terminal. From here, use traveler wires to link the devices together, ensuring each one is properly connected to allow for full control at each location. The travelers should be linked to the designated terminals on each unit, ensuring that the correct orientation is followed to avoid reverse wiring.
At the final connection point, connect the load, ensuring that the live wire goes to the light fixture or other connected load. Once the wiring is completed, it is important to check the connections before turning the system on. Test each control point by toggling the switches, ensuring the system is working as expected with no faults or short circuits in the connections.
Step-by-Step Guide to Wiring a 4 Way Switch System
Start by turning off the main power supply to ensure safety before beginning any work. Begin the installation by connecting the power source to the first terminal of the first device in the series. This terminal will usually be marked as the “common” terminal. Next, attach the traveler wires to the corresponding terminals on each device. These travelers will link the controlling units together and should be correctly oriented for proper functionality.
Final Connections and Testing
At the last unit, connect the load terminal to the light fixture or other connected device. Check all traveler wire connections, ensuring that each is securely fastened and that no wire is loose. Once all the connections are made, double-check for any errors, then turn the power back on. Test the system by toggling each control point to confirm the light can be turned on and off from any location without issue.
