Begin by turning off the main circuit breaker to prevent any electrical hazards while connecting the ventilation system and overhead lighting. Verify that the wires are not live using a voltage tester before proceeding.
Use a dedicated 15-amp circuit for the extractor and illumination fixture to maintain stable performance and prevent overloads. Standard color codes should be followed: black for hot, white for neutral, and green or bare copper for grounding.
Mount the vent housing securely to the ceiling joists and ensure the ductwork has a smooth path to the exterior. Position the illumination panel close to the vent unit if combining the devices, keeping at least 12 inches clearance from insulation materials to reduce fire risk.
Check all wire connections with wire nuts and electrical tape, confirming that no copper is exposed outside the connectors. After securing the device, restore power and test the airflow and lighting operation separately to confirm proper installation.
Connecting a Ceiling Extractor and Illumination Unit
Turn off the main power supply before starting any electrical connections to prevent shock. Confirm with a voltage tester that no current is present in the existing circuit.
Identify the hot, neutral, and ground wires in the ceiling junction box. Use black for live, white for return, and green or bare copper for grounding to maintain standard safety practices.
Install a junction box rated for moisture exposure if the installation area is prone to humidity. This prevents corrosion and ensures long-term reliability of the electrical connections.

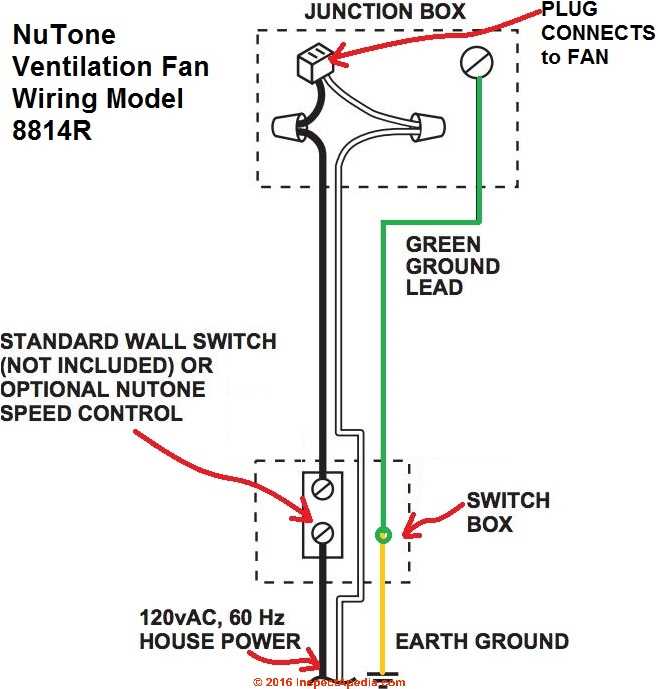

Connecting the Ventilation Unit
Secure the extractor housing to ceiling joists using screws or brackets. Ensure the duct has a clear path to the exterior to avoid airflow restrictions, which can reduce performance and increase noise.
Attach the hot wire from the circuit to the unit’s live terminal, the neutral to the return terminal, and the ground to the metal housing if applicable. Use wire nuts and wrap connections with electrical tape for added security.
Connecting the Overhead Illumination
Run a separate cable to the lighting fixture if it is controlled independently from the ventilation system. Connect the wires according to color codes and confirm that all screw terminals are tightened without damaging the conductor.
After completing all connections, restore power and test the airflow and brightness separately. Observe any unusual humming, flickering, or reduced output, and correct loose connections or obstructed ducts immediately.
Identifying Conductors and Required Tools for Installation
Start by examining the existing circuit to determine which cables are present and which terminals they connect to. Use a voltage tester to distinguish live wires from neutral and grounding conductors before handling any connections.
Essential Tools for Secure Connections
- Screwdrivers with insulated handles for terminal connections
- Wire strippers to remove insulation without nicking the conductor
- Voltage tester or multimeter for confirming live circuits
- Wire nuts and electrical tape to secure splices
- Drill with appropriate bits for mounting boxes and brackets
- Measuring tape to ensure proper spacing of the unit from joists and walls
Carefully label each conductor before making connections. This prevents confusion when joining the ventilation unit to the illumination fixture and reduces the risk of reverse polarity or short circuits during installation.
