Connect the two hot conductors to the brass terminals and attach the ground conductor to the green terminal on the heavy-duty power connector rated for 50 A service. This layout is common for equipment such as welders, large compressors, and workshop machinery powered by 240-volt circuits.
A three-contact high-current connector normally carries two live conductors and one grounding conductor. The two live lines deliver 240 V between them, while the grounding path connects the device chassis to earth. No neutral conductor is present in this configuration, which makes it suitable for equipment that operates only on 240 V loads.
Use copper conductors sized 6 AWG for the two live lines and the ground path when installing a circuit rated for fifty-unit current capacity. This conductor size handles the electrical load while limiting voltage drop and heat buildup along the cable run.
Before attaching conductors to the connector terminals, strip about 18–22 mm of insulation and tighten the terminal screws firmly. Loose terminals increase resistance and create heat during operation. After assembly, secure the cable clamp inside the connector housing so tension from the cord does not pull on the terminals.

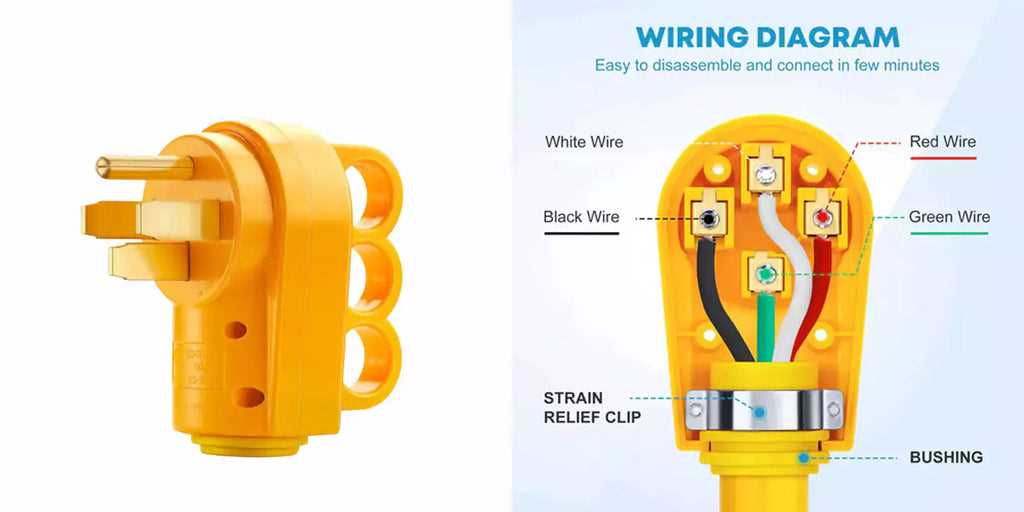

50 Amp 3 Prong Plug Wiring Diagram With Terminal Layout and Connection Steps
Attach the two live conductors to the brass terminals inside the high-current connector body and connect the grounding conductor to the green terminal linked to the metal frame. This arrangement supplies 240 volts between the two live lines while the ground path protects the equipment chassis.
Open the connector housing and locate the three terminal screws. Two terminals usually sit opposite each other and handle the live lines. The third terminal connects to the grounding contact and is commonly marked with a green screw or grounding symbol.
Use copper conductors sized 6 AWG for circuits rated for fifty-unit current capacity. Aluminum conductors require a larger gauge and terminals designed for aluminum. Copper cable remains common because it handles heat and mechanical stress better during long operation.
Strip about 20 millimeters of insulation from each conductor before inserting it into the terminal clamp. Exposed strands must remain fully inside the clamp area. Tighten the screws with a torque screwdriver so the conductor does not loosen during vibration.
The two live conductors usually appear black and red in many installations. These carry power from a double-pole breaker that supplies 240 volts across the pair. No neutral conductor is present because many heavy tools operate only on this voltage level.
Route the cable through the strain-relief clamp located at the rear of the connector housing. Tighten the clamp screws so the outer jacket holds firmly. This prevents mechanical pull from transferring force directly to the terminal screws.
After assembly, check continuity with a multimeter. Measure resistance between the grounding contact and the metal frame of the equipment; the reading should approach zero ohms. Also verify that no continuity exists between the live contacts and the ground path.
Close the housing and secure all screws. Restore power at the breaker panel and test the equipment briefly. Stable operation without heat at the connector body indicates correct terminal placement and conductor tightening.

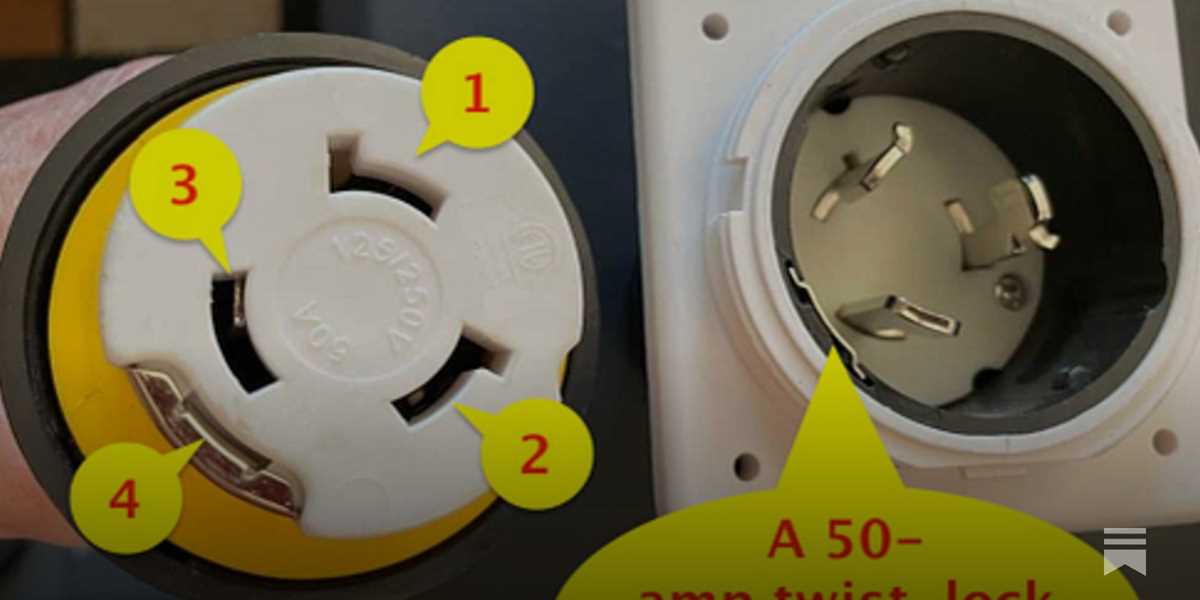

Terminal Identification for 50 Amp 3 Prong Plug Hot Lines and Ground
Locate the grounding contact first and connect the green or bare copper conductor to that terminal before attaching the live conductors. The grounding terminal is usually linked to the metal frame of the connector body and marked with a green screw or a grounding symbol.

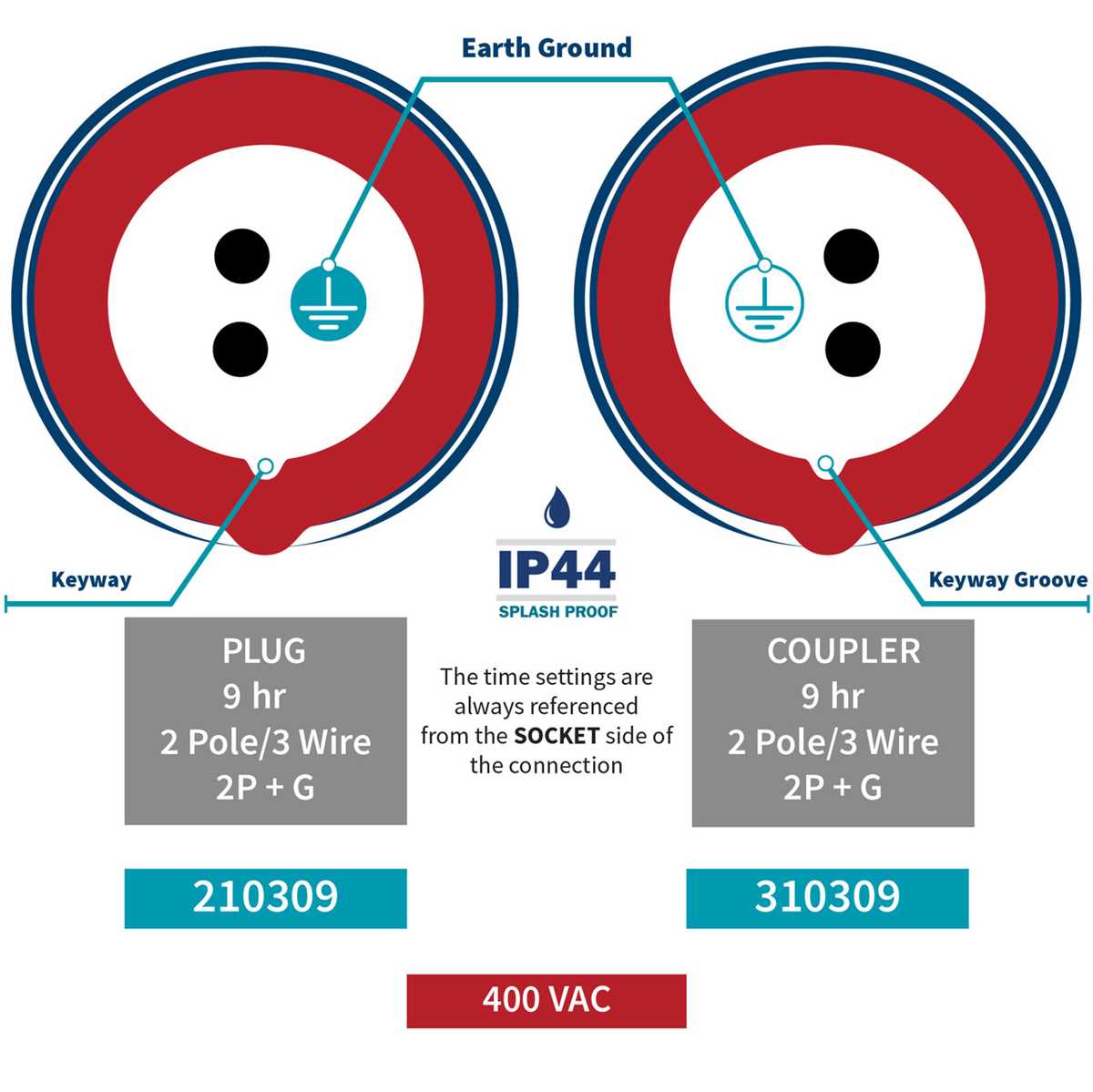

Typical terminal positions inside the connector
- Two opposite terminals carry the live conductors delivering 240 volts across them
- The center or offset terminal connects to the grounding path linked to the equipment chassis
- Grounding terminal normally uses a green screw or a terminal bonded to the metal frame
- Live terminals are often brass colored and positioned symmetrically
Confirm terminal roles with a continuity test before attaching conductors. Touch one probe of a multimeter to the grounding contact and the other probe to the connector frame; the reading should approach zero ohms. After identifying the ground path, attach the two live conductors to the remaining brass terminals, tighten the screws firmly, and secure the cable clamp so movement of the cord does not loosen the connections.
