Before starting the installation process, make sure you have the correct power specifications for your home or workspace. Check the amperage and voltage requirements of the appliance you wish to power and ensure your electrical system is compatible. For this setup, using the proper wire gauge and components is key to ensuring safety and efficiency. Generally, a 10 AWG wire is recommended for appliances requiring a 30-amp connection, but confirm the specifics based on your equipment.
To install a high-voltage socket, first, turn off the main power supply to the area you’ll be working in. Next, select a suitable location on the wall for your socket, making sure it’s easily accessible and complies with local code requirements. From there, use a voltage tester to ensure that no electricity is present in the area before you begin any work.
Connecting the conductors correctly is a critical part of the process. The live wire should be attached to the brass terminal, while the neutral wire goes to the silver terminal. If your system requires a ground wire, it should be connected to the green terminal. After securing the wires, double-check the connections before securing the outlet in place and restoring power to the system. Finally, use a tester to verify that the new connection is functioning properly and safely.

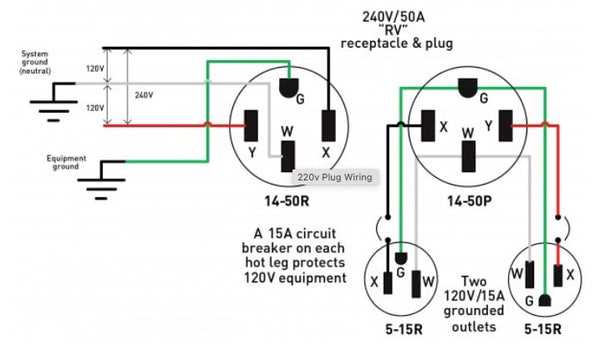

Wiring a 220 Outlet Diagram
Start by selecting the appropriate location for the socket. Ensure that it’s easily accessible and adheres to local building codes. You’ll need to install a dedicated circuit for higher voltage connections, meaning this should not share the same circuit as other appliances. Turn off the main power at the breaker panel before beginning any work.
Once you’ve chosen the spot, use a voltage tester to verify that the electrical panel is completely off. Begin by connecting the black (hot) wire to the brass screw terminal, followed by the white (neutral) wire to the silver terminal. If your system requires grounding, use the green wire and connect it to the green terminal to prevent potential hazards.
Next, make sure that the wires are stripped to the appropriate length so they fit securely into the terminals. When connecting the wires, ensure that no copper is exposed and that the wire ends are inserted fully into the screw terminals. After securing the connections, double-check that each wire is fastened properly and that there is no chance of them coming loose during use.
Once the connections are secure, place the socket into the wall box and tighten the mounting screws. After everything is fastened, restore the power at the breaker panel and test the new installation using a voltage tester to ensure everything is connected correctly. If the outlet is working as expected, you’re done. If not, turn off the power and check your connections again for any mistakes or loose connections.
Step by Step Instructions for Connecting a 220 Outlet
Start by turning off the main electrical panel to prevent any accidents. Next, gather the necessary tools: a screwdriver, wire stripper, voltage tester, and a suitable receptacle. It’s crucial to ensure that all equipment is compatible with the system you’re setting up. The installation process requires both safety and precision, so double-check your tools and materials before beginning.
Begin by stripping the wires to expose about 1.5 inches of copper. Insert the black wire into the brass terminal and the white wire into the silver terminal. If your installation includes a ground wire, attach it securely to the green terminal. Tighten all the screws firmly to ensure there’s no loose connection that could cause a short or malfunction later on.
Once all the wires are connected to the correct terminals, insert the receptacle into the electrical box and secure it in place with the screws. Make sure that the cover plate fits properly, and no wires are exposed. After everything is securely mounted, turn the power back on at the breaker panel. Use a voltage tester to verify that the installation is working correctly before you use the connection.
