To connect your recovery system to a power source, first identify the proper terminals for the motor and the power supply. Start by attaching the positive terminal of the motor to the positive terminal of your battery, using heavy-duty cable capable of handling the required current. For the negative terminal, connect it to the chassis ground or a dedicated negative battery terminal. Make sure that each connection is firm and secure to avoid power loss or short circuits.
Next, install the solenoid switch. The solenoid is key for controlling the flow of electricity between the power source and the motor. Connect one side of the solenoid to the battery and the other side to the motor’s power input. The solenoid’s ground terminal should be connected to the chassis, completing the circuit. This step ensures that when the switch is activated, the motor receives power to operate the system smoothly.
Lastly, check the connections to confirm that no wires are loose or improperly connected. After installation, it’s a good practice to test the system under a small load before using it for heavy-duty tasks. This can help detect any issues with the setup and allow for adjustments before full operation. If the system isn’t functioning as expected, recheck the solenoid and power connections for any signs of failure.

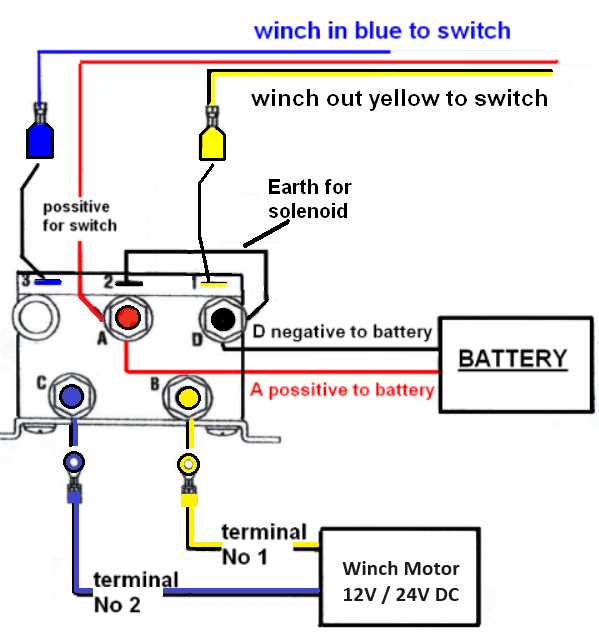

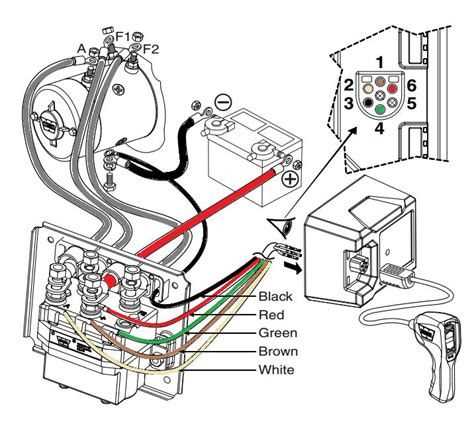

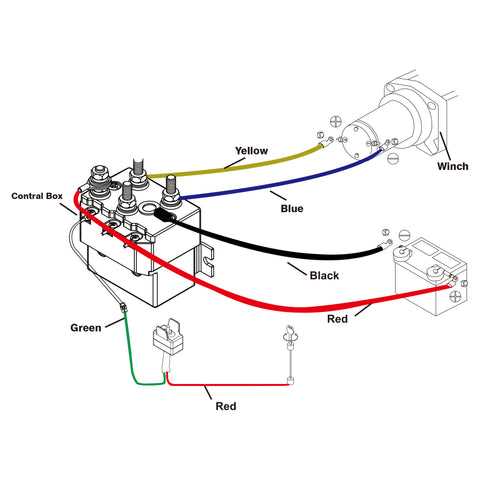

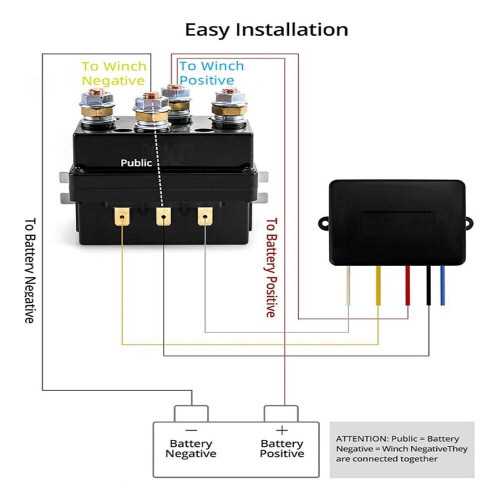

12V Winch Wiring Setup
Start by selecting a reliable power source, usually a 12V battery. The positive terminal of the motor should connect to the positive terminal of the battery, using appropriately rated wire to handle the current. This ensures a steady flow of power to the motor, enabling smooth operation.
Next, connect the negative terminal of the motor to the chassis or a designated negative battery terminal. A good ground connection is critical to ensure that the motor receives the proper power and runs effectively. Ensure that the connection is tight and free of corrosion to prevent any electrical issues during use.
Solenoid Connections
Install the solenoid in line with the system. The solenoid’s primary function is to act as a switch that directs power to the motor when activated. Connect one side of the solenoid to the battery’s positive terminal and the other side to the motor’s power input. This ensures that power only flows when the switch is engaged, preventing unnecessary current drain.
Testing the Setup
After connecting all components, test the system by turning it on under a light load. This will help ensure that all connections are solid, and the motor runs smoothly. Check for any signs of overheating or sparks, which could indicate an issue with the wiring or connections.
If the system is not functioning properly, retrace the connections to make sure everything is securely attached. Pay special attention to the solenoid and ground connections, as these are common sources of power issues. After troubleshooting, perform another test to confirm that the setup is fully operational before putting it to regular use.
How to Connect the 12V Winch to the Battery
Start by ensuring that the battery is fully charged and the power is turned off. First, connect the positive terminal of the motor to the positive terminal of the battery. Use thick, high-quality wire rated for the required current. This will guarantee a steady and safe power transfer without any overheating or power loss during operation.
Next, attach the negative terminal of the motor to either the vehicle’s chassis or a dedicated negative terminal on the battery. Ensure this connection is secure and free of rust or corrosion. A good ground connection is vital for proper operation and to prevent voltage drop or system failure. Once both terminals are connected, check for any loose wires and test the system under low load to confirm everything is functioning correctly.
