Connect the main output terminal directly to the battery positive using a fuse rated for the generator’s maximum current. A secure, clean connection prevents voltage drops and overheating during operation.
Attach the excitation lead to the battery side of the system to allow proper voltage regulation. Incorrect placement can result in overcharging or insufficient charging, which shortens battery life and reduces electrical stability.
Secure the grounding terminal to a bare metal section of the engine or chassis to ensure a low-resistance path. Avoid painted or corroded surfaces, as they can cause voltage fluctuations and reduce generator output.
After completing connections, verify voltage under idle and load conditions with a voltmeter. Confirm that the system reaches the rated voltage and maintains stability while drawing current to ensure reliable performance and battery safety.

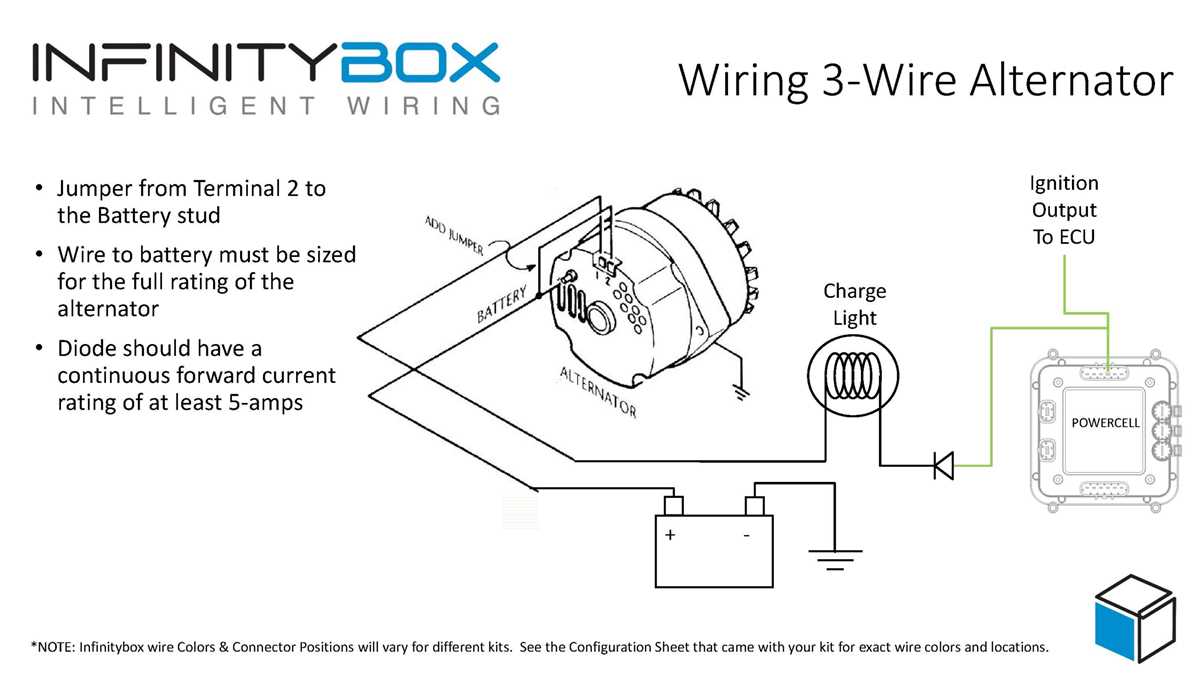

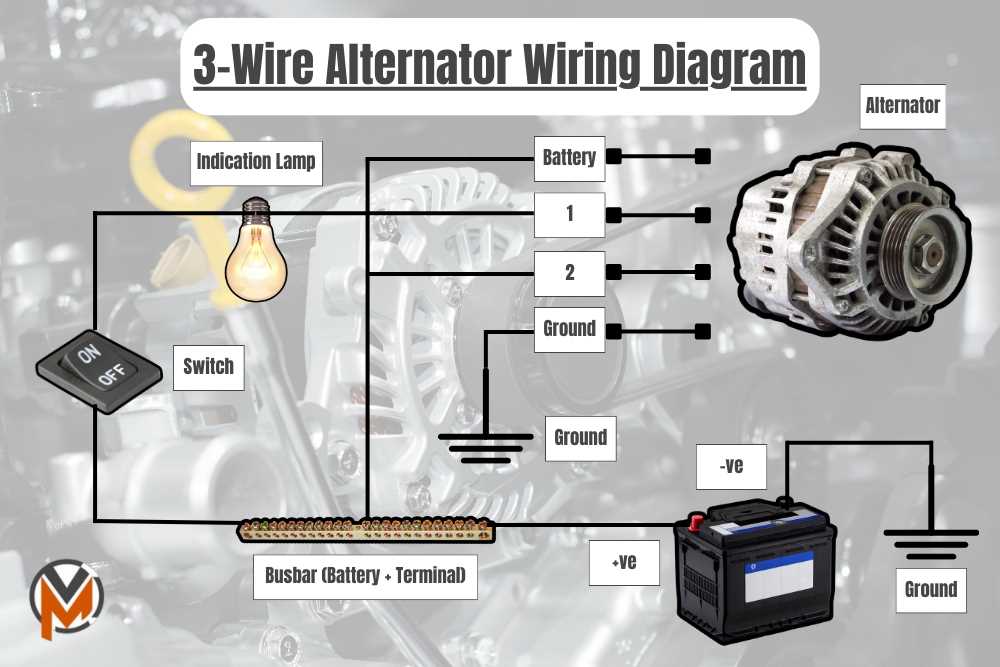

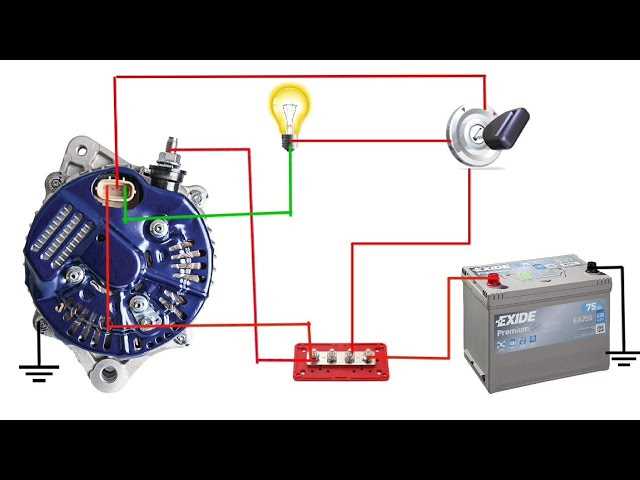

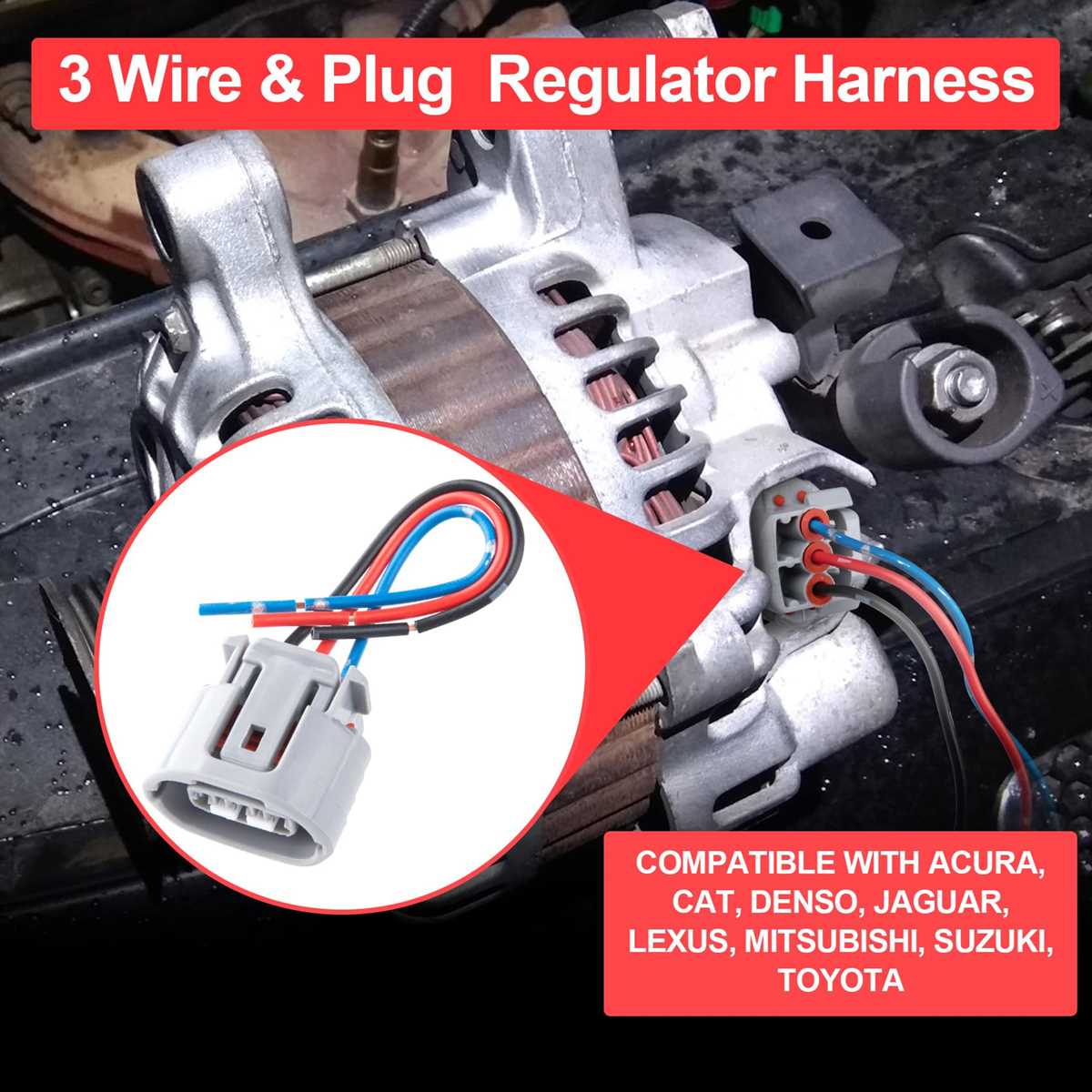

Three Conductor Alternator Connection Guide
Connect the output lead directly to the main battery terminal using a fused connection rated at 60–80 amps to prevent voltage spikes and ensure stable charging under load.
Attach the sensing line to the ignition switch side of the main distribution panel. This allows the regulator to detect voltage accurately without backfeed from other devices.
The excitation input should receive a steady 12 V from the dashboard warning lamp circuit. A small 1–2 A fuse inline prevents damage from accidental short circuits during startup.
Use high-strand copper cables with heat-resistant insulation for all connections. Avoid aluminum conductors, as they increase resistance and risk overheating at high current.
Routing and Protection
Keep the harness away from engine exhaust components and moving belts. Secure each line with insulated clamps to minimize vibration and prevent insulation chafing over time.
When joining connectors, apply dielectric grease to prevent oxidation. Crimp terminals should be mechanically tight; soldering alone is insufficient for current loads above 40 A.
Check polarity before final tightening. Reversing the excitation or sensing leads can cause the voltage regulator to fail within seconds, potentially damaging the electrical system.
After installation, measure the output at idle and at 2,500 RPM. Expect readings between 13.8 V and 14.5 V. Any deviation indicates a loose connection, faulty regulator, or grounding issue that must be corrected immediately.
Identifying Output Excitation and Ground Terminals

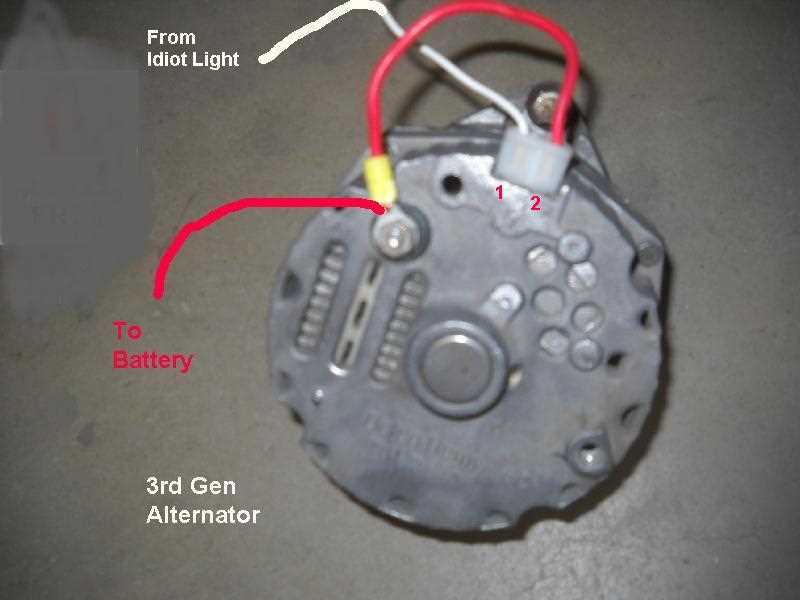

Locate the main output stud first. It is usually the largest post on the housing and often marked with a “B+” or a battery symbol. Connect a multimeter in voltage mode to verify it reaches system voltage when the engine runs above idle.
The excitation terminal is smaller and often positioned near the regulator. It can be confirmed by tracing the small-gauge lead from the dashboard indicator lamp or ignition switch. Voltage should read 12 V only when the ignition is on.
Ground points are typically the case bolts or designated lug marked with a negative sign. Ensure continuity to chassis ground with a multimeter set to ohms. Loose or corroded grounding will cause fluctuating output and erratic charging behavior.
- Output: large post, battery symbol, 13–14.5 V under load.
- Excitation: small terminal, connected to indicator lamp, 12 V with ignition on.
- Ground: metal casing or lug,
- Verify each connection before starting the engine to prevent regulator damage.
