Ensure all terminals are de-energized before beginning any assembly to prevent electrical hazards. Verify that the supply voltage matches the appliance specifications and that the grounding strap is accessible for safe attachment.
Identify each conductor by color to match its corresponding terminal. Typically, the neutral lead is white, the live leads are black and red, and each must be secured under the correct screw to maintain balanced current flow.
Strip approximately ¾ inch of insulation from each conductor end and twist the strands tightly to prevent fraying. Insert them fully into their respective clamps and tighten until snug without deforming the metal.
Inspect connections visually and manually to confirm no exposed strands are outside the terminal, which could cause short circuits. Check that the cable is clamped firmly to prevent movement and wear.
Once secured, verify continuity using a multimeter between the supply plug and appliance terminals. The resistance should be near zero for each lead, confirming proper connectivity.
Position the appliance so the cable is not bent sharply or stretched across pathways. This prevents strain on the connections and reduces the risk of insulation damage over time.

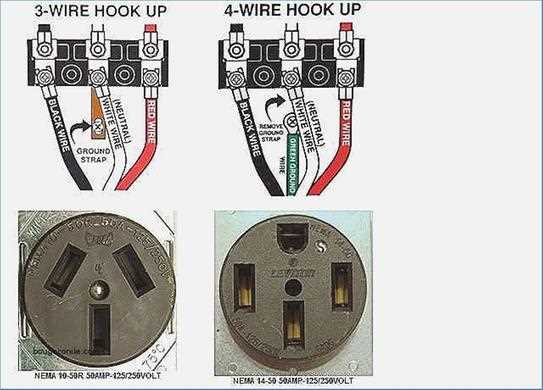

Complete Guide to Connecting a Three Conductor Clothes Dryer Cord
Switch off the main breaker before starting any assembly. Confirm that the power source matches the appliance rating, typically 240 volts, and that a grounded terminal is available for secure attachment.
Separate the three leads by color and function. The neutral conductor is usually white, while the two hot conductors are black and red. Each must be fastened under its correct terminal for safe current distribution.
Strip about three-quarters of an inch of insulation from each end. Twist the strands tightly and insert fully into the terminal clamp. Tighten screws firmly, ensuring the metal is not deformed or damaged.
Use a torque screwdriver if available to achieve consistent tightness. Loose connections can cause arcing or overheating, while overtightening can damage the terminal post or conductor strands.
Verify continuity with a multimeter from plug prongs to the appliance terminals. Each lead should show near-zero resistance, indicating proper contact and no breaks in the conductor.
Secure the cable using the clamp provided, avoiding sharp bends or stretches. The appliance should sit without pulling on the leads, reducing long-term strain and potential insulation wear.
After installation, switch the breaker on and test each setting on the appliance. Confirm that both heating elements and the motor operate without flickering or irregular sounds, indicating stable and safe connections.
Identifying Each Cord Lead and Terminal Connection
Start by separating the three conductors according to their color coding. The white lead attaches to the neutral post, while the black and red leads connect to the two hot terminals. Correct placement prevents overload and ensures proper current flow.
Inspect each terminal for corrosion or bent metal before securing the conductors. Slide the stripped ends fully into the clamps and tighten screws so that the strands remain intact without crushing, providing reliable electrical contact.
After all leads are attached, gently tug each to confirm secure fastening. Use a multimeter to verify that continuity exists from the plug to the appliance terminals. Proper identification and secure connection minimize risk of arcing or uneven performance.
