Connect each control unit to the common and traveler terminals according to the power source and load. Verify that the travelers are continuous between the two locations to maintain consistent operation.
Label each conductor clearly for live, traveler, and load paths. This reduces errors when testing or adjusting connections and prevents accidental shorts.
Install protective devices such as fuses or breakers near the supply line. Choose ratings slightly above the expected current of the load to avoid nuisance trips while protecting the system.
Test each path individually by energizing one control at a time and confirming that the load responds correctly from both points. This ensures the installation is safe and fully operational before finalizing covers or enclosures.
Dual Location Control Connection Layouts
Connect each control unit so the common terminal receives power from the supply and traveler terminals link both locations. Verify continuity along each traveler line before energizing to avoid misoperation or shorts.
Testing and Safety Measures
Check each path individually by toggling one control at a time and observing the load response. Use inline fuses near the supply and label all leads for live, traveler, and load to simplify maintenance and prevent accidental faults.

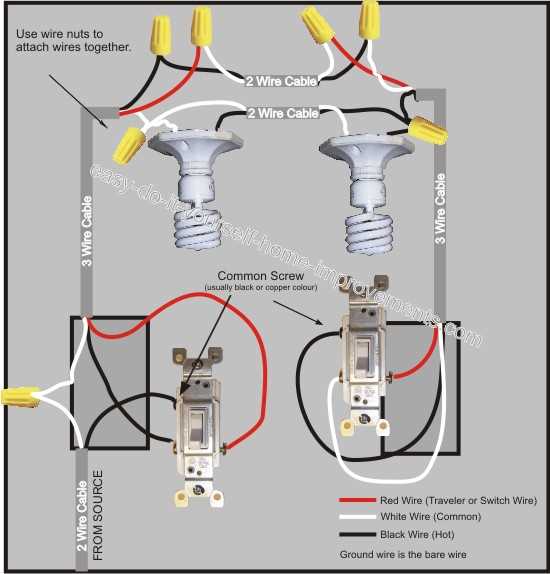

Identifying Terminals and Traveler Conductors
Label each terminal clearly before connecting to avoid confusion between the common lead and the travelers. The common terminal is usually darker or marked differently, while traveler terminals are paired for linking both control points.
Use a continuity tester to verify which terminals are interconnected when toggling each unit. This step ensures that the traveler paths are functional and prevents incorrect connections that could leave the load inoperative.
Maintain color coding for all conductors: black or red for common, and red or blue for travelers. Keep wires separated and secure to minimize contact issues and facilitate troubleshooting.
Check each connection under low voltage before applying full power. Confirm that toggling either control unit changes the state of the load consistently, verifying correct identification of all terminals and traveler lines.
