To wire a coil actuator, ensure that the connection is correct by following the proper terminal layout. Start by identifying the positive and negative terminals of the component. These are typically marked clearly, and it is critical to connect them in the right orientation to avoid malfunction or damage to the unit.
Once the terminals are identified, use the appropriate gauge of wire based on the current requirements. For most standard setups, 18-22 AWG is suitable, but always refer to the manufacturer’s specifications. Strip the wire ends to expose enough copper for a secure connection, making sure no frayed strands touch other wires or surfaces that could cause short circuits.
After connecting the wires to the terminals, it’s important to check for any loose connections. Tighten them securely to ensure stable operation. Test the unit by powering it on briefly to verify correct activation. If the component does not function as expected, inspect the connections again to ensure there are no issues with the contact points.
Finally, make sure to insulate exposed connections to prevent accidental shorts. Use electrical tape or heat shrink tubing to cover any bare wire sections that could come into contact with other conductive parts. This adds an extra layer of protection and helps maintain the safety and efficiency of the circuit.

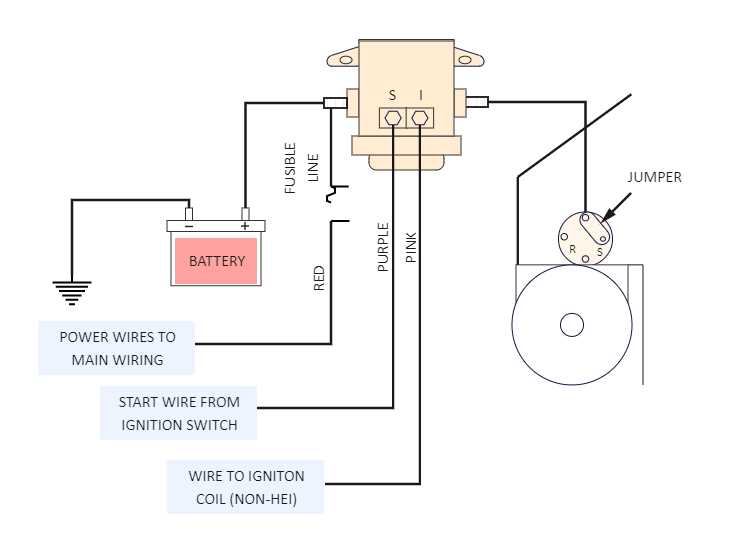

Solenoid Wiring Diagram
To connect the actuator properly, ensure the power supply terminals are correctly aligned with the control unit. The positive lead should be connected to the power source’s positive terminal, while the negative lead connects to the negative terminal. Make sure that the wires used are rated for the correct voltage and current, following the manufacturer’s recommendations for safety and performance.
For optimal performance, always check the polarity before connecting. Reversing the leads could prevent proper operation or cause damage. Use a multimeter to verify voltage at the terminals to ensure the connection is live. Once everything is securely connected, test the system by energizing the circuit briefly to verify the correct functionality of the device.
Step-by-Step Guide to Wiring a Solenoid for Basic Applications
Start by identifying the correct polarity of your power source. The positive lead should be connected to the positive terminal of the device, while the negative lead connects to the negative terminal. Always double-check the terminal markings before proceeding to avoid incorrect connections that could cause malfunctions.
After preparing the wires, strip the insulation back by approximately 1 inch to expose the copper. This will ensure a solid contact with the terminals when attaching them. Make sure to avoid any exposed wire that could cause a short or electrical interference with nearby components.
Next, insert the prepared wires into the corresponding slots of the connector. Use a crimping tool to secure the wires firmly into place. Ensure the wire is fully inserted and that the connector properly grips the conductor. This ensures a reliable connection that won’t easily come loose over time.
Finally, test the system by briefly energizing the circuit. Check for any unusual sounds or behaviors, indicating that the device is functioning correctly. If the setup is not operating as expected, recheck the connections and troubleshoot for any loose or incorrectly connected wires.
