Connect the main power lead directly to the battery positive post to ensure consistent voltage delivery to all control circuits. Use a ring terminal secured with a nut for stable contact and minimal resistance.
Identify the grounding point on the chassis closest to the control unit. A clean, paint-free metal surface will provide the lowest resistance path, reducing voltage drops and preventing intermittent operation.
Label each accessory and start output wire before routing to downstream components. Maintaining clear identification prevents misconnection and simplifies troubleshooting in case of operational issues.
Route the harness away from heat sources and moving parts such as the engine manifold or steering column. Securing wires with clamps or zip ties prevents abrasion and shorts, extending system reliability.

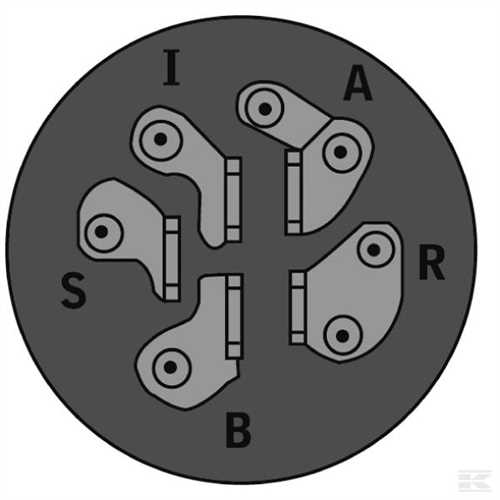

5 Terminal Vehicle Start Control Connections and Setup Guide
Connect the main battery lead directly to the primary input terminal using a secure ring connector and torque the fastener to manufacturer specifications. Ensure the auxiliary terminals for ignition and accessory circuits are properly seated to maintain stable current flow during engine startup and accessory operation.
Ground the control unit to a clean metal surface near the mounting point to minimize electrical resistance. Route each output terminal individually, avoiding contact with sharp edges or heat sources, and use protective sleeves to prevent short circuits and maintain long-term reliability.
Locating Power and Ground Points on the Start Control Unit
Identify the primary voltage input terminal at the top of the control module and verify it is free of corrosion. Use a multimeter to confirm 12 volts are present before connecting the main lead.
Locate the main grounding point on the chassis close to the module. Clean the metal surface to bare metal to ensure low resistance and stable current flow.
- Check for factory-marked terminals labeled B+ or BAT
- Inspect accessory outputs labeled ACC or IGN
- Mark each point with tape for easier connection
Ensure each output terminal is isolated from other conductive surfaces to prevent shorts. Use insulating sleeves on exposed ends and secure fasteners to prevent loosening from vibration.
Verify continuity between the ground terminal and vehicle body using a multimeter. Any resistance over 0.2 ohms should be corrected by cleaning or relocating the connection.
Route auxiliary leads individually from the control unit to accessories, avoiding sharp edges, heat sources, and moving parts. Secure them with clips or ties to maintain consistent contact.
Inspect terminal screws and bolts for tightness after installation. Loose connections can cause erratic operation, voltage drops, or permanent damage to the module.
Double-check all connections with a test light or voltmeter before operating the engine. Confirm that power reaches all designated terminals and that the ground provides a stable return path.
