Connect the main battery terminals to the distribution panel using appropriately rated cables to handle peak current without voltage drop. Ensure the positive lead is fused near the battery to protect against short circuits.
Verify all branch lines to appliances and outlets with a multimeter before full operation. Check that polarity is correct and that no path exceeds the current rating of the connected devices.
Secure all leads along the frame using insulated clamps and maintain separation from fuel lines, water pipes, and heat sources. Loose or exposed cables can lead to shorts or system instability.
Test each load individually after installation by activating lights, pumps, and outlets. Confirm stable voltage and observe for flickering or unusual heating in connectors, which indicates a need for adjustment or additional protection.

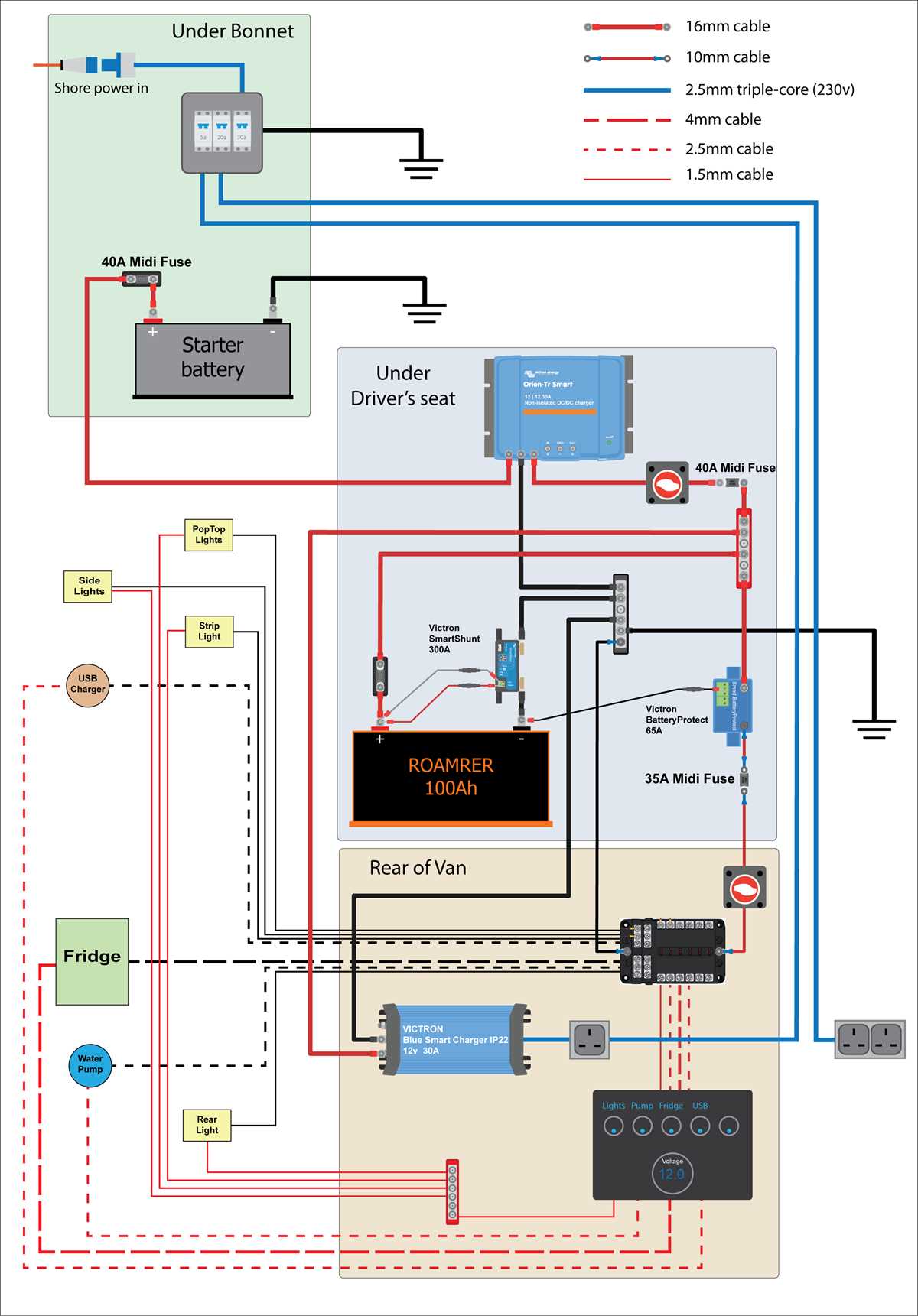

RV Power System Layout
Connect the main battery bank to the distribution panel using appropriately sized conductors rated for the peak load. Include inline fuses on each positive lead to protect against accidental shorts and overloads.
Organize branch lines to appliances and outlets so that each path is accessible for inspection and maintenance. Label each lead with voltage and current ratings to prevent accidental overloading during modifications.
Fuse Placement and Safety
Install fuses at the origin of every branch, nearest the power source. Select fuse ratings 10-15% above the expected device load to prevent nuisance trips while still providing protection against overcurrent events.
Routing and Securing Conductors
Secure all cables along structural members using insulated clamps, keeping a minimum 5 mm separation from plumbing, fuel lines, and heat sources. Ensure that no leads are stretched or pinched, as this can cause voltage drops or shorts under vibration.
Connecting Batteries and Main Power Distribution
Link the battery bank to the main distribution panel using thick, insulated cables rated for peak load currents. Always place fuses on the positive terminals close to the battery to prevent short circuits from damaging the system.
Check each battery terminal for corrosion and tightness before making connections. Clean any buildup with a wire brush and apply protective grease to ensure low resistance and stable voltage under load.
Balancing Multiple Batteries
When connecting multiple batteries in series or parallel, ensure that voltage and capacity ratings match across all units. Unequal batteries can cause rapid discharge of weaker cells and reduce overall runtime of the system.
Securing and Routing Main Lines
Route positive and negative conductors along the frame using insulated clamps, keeping them clear of heat sources, moving parts, and fuel lines. Avoid sharp bends and pinches to maintain current flow and prevent insulation damage over time.
