Install branch circuits for lighting and outlets based on load distribution, spacing outlets every 12 feet in living areas and placing dedicated lines for high-draw appliances like ovens and washers.
Use color-coded conductors to differentiate hot, neutral, and ground connections, and label all junction boxes clearly to reduce errors during maintenance or future expansions.
Select proper circuit breakers rated slightly above the expected current for each line, ensuring that protection devices match conductor sizes and load requirements.
Plan pathways for major appliances such as HVAC units and water heaters, keeping cables accessible but protected from mechanical damage and heat sources, with appropriate separation from low-voltage systems.
Home Electrical Layouts and Connection Plans
Plan circuits for each room by calculating total expected load and grouping outlets, lighting, and switches logically to avoid overloading any single line.
Use separate lines for high-draw appliances like ovens, water heaters, and laundry machines, connecting them to breakers rated 20-30% above their peak current to allow safe operation.
Organize cable runs through walls and ceilings using conduit or staples, maintaining at least 1 inch from heat sources and keeping conductors away from sharp edges to prevent insulation damage.
- Label all junction boxes and connections to simplify future maintenance.
- Mark circuits on the main panel to indicate which line feeds each room or appliance.
- Use color-coded conductors for hot, neutral, and ground to prevent cross-connections.
Select proper protection devices by matching breaker ratings to cable sizes and expected loads. Include GFCI units in wet areas and AFCI devices in bedrooms for safety compliance.
Install switches strategically for convenience, placing them near entrances and aligning multi-way switches for hallways or staircases to control lighting from multiple points.
Plan for future expansions by adding extra conduits or spare circuits in the main panel, allowing additional outlets, lighting, or appliances without extensive remodeling.
Regularly inspect all connections for loose terminals, discoloration, or signs of heat damage. Replace damaged conductors immediately to maintain safe and reliable performance.

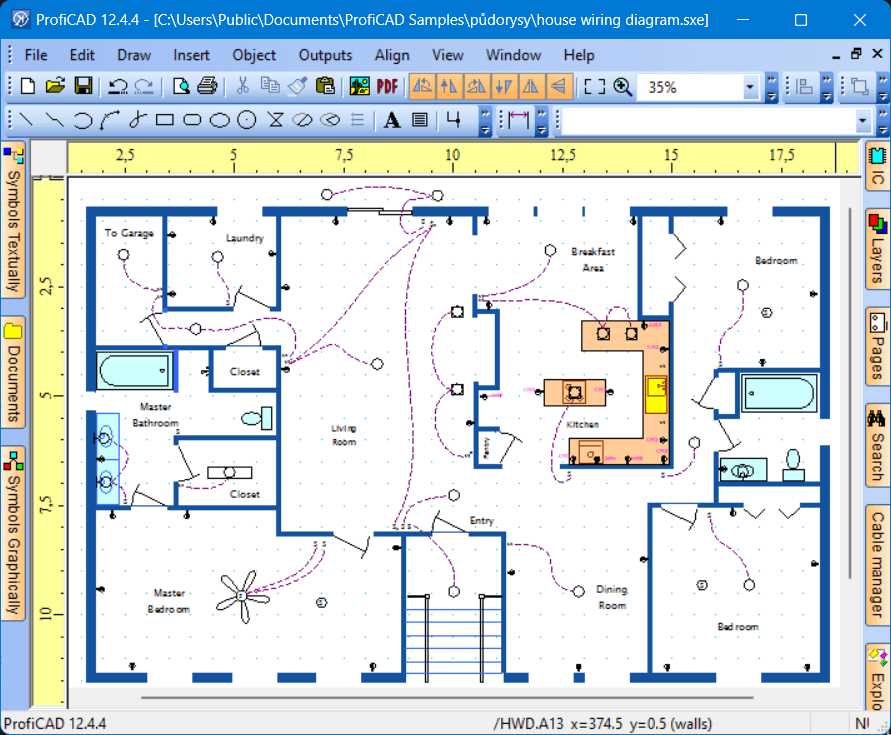

Document the layout using clear sketches or digital records, including circuit paths, breaker assignments, and outlet locations, providing a reference for repairs, upgrades, or troubleshooting.
Planning Circuit Layouts for Lighting and Outlets
Place outlets every 12 feet along walls in living areas and hallways to ensure convenient access for electronics and avoid overloading extension cords.
Group lighting circuits by function, separating ceiling fixtures, task lighting, and decorative lights. Use breakers rated for 15-20 amperes per circuit depending on the total load.
Dedicated Circuits for High-Draw Devices
Assign separate lines to heavy appliances such as ovens, washers, and dryers. Include properly sized breakers and ensure conductors meet the current requirements of each device.
Plan switch locations near entrances and at convenient points for multi-way control in hallways and staircases. Position switches at standard height of 48 inches from the floor for accessibility.
Consider future needs by adding extra outlets in kitchens, home offices, and entertainment areas. Leave space in junction boxes and main panels to accommodate additional circuits without remodeling.
Balancing Load Across Circuits
Distribute outlets and lights to avoid overloading a single line. Check total amperage per breaker and balance heavy loads between circuits to maintain stable performance.

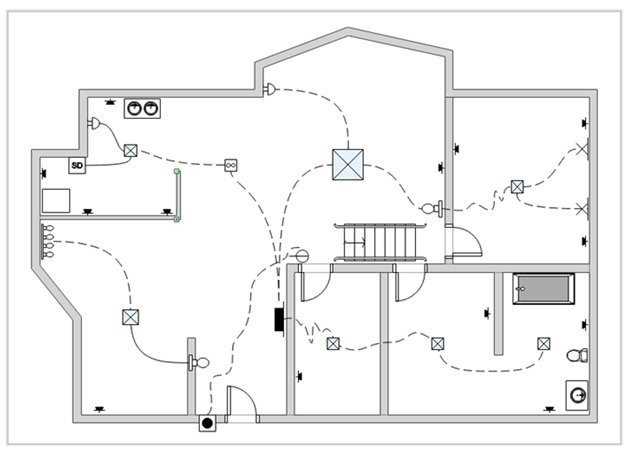

Document layout clearly with sketches showing outlet positions, switch locations, and circuit paths. Include breaker assignments to simplify troubleshooting, upgrades, or maintenance tasks.
