Ensure each unit has matching impedance ratings to prevent overload and maintain uniform sound pressure. Using mismatched components can lead to distortion or damage to the amplifier.
Distribute positive and negative terminals consistently across all modules, avoiding cross connections. This preserves phase alignment and avoids cancellation or phase-related audio dropouts.
Use short, high-gauge conductors for links between modules to minimize resistance and signal loss. Longer cables reduce amplitude and can introduce unwanted frequency attenuation.
Label each connection point clearly and verify continuity before powering the system. A misconnection at this stage can result in uneven load and potential failure of individual modules.

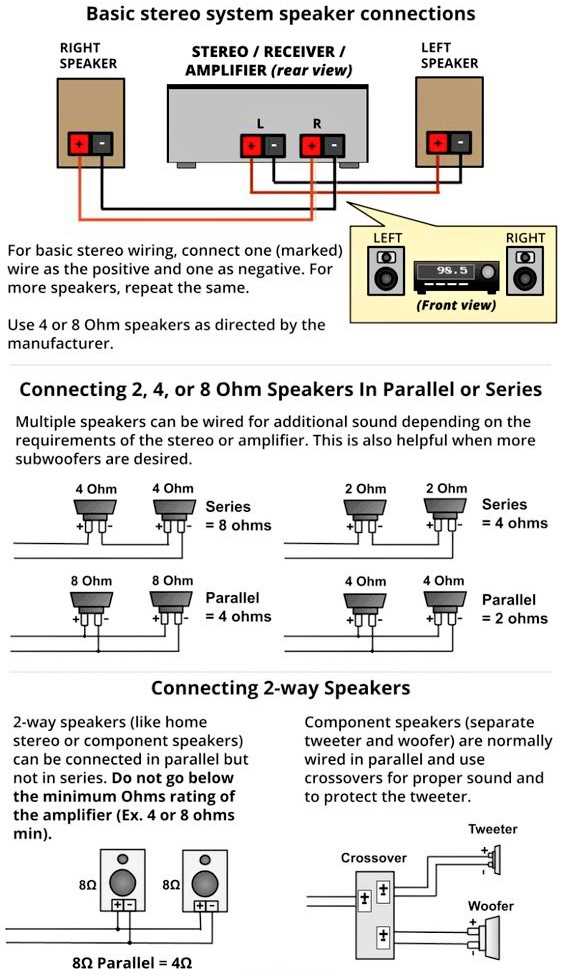

Parallel Speaker Connection Techniques for Stable Sound Performance
Connect each module with identical impedance ratings to prevent overloading the amplifier and maintain a uniform output across all units. Using inconsistent ratings can lead to imbalance and possible damage.
Keep all positive and negative leads aligned to preserve phase consistency. Any reversal or mismatch in polarity will cause sound cancellations and weak output in certain frequencies.
Limit cable lengths and use sufficient gauge to reduce resistance and minimize signal attenuation. Longer, thinner cables introduce unwanted drops in volume and high-frequency clarity.
Secure all terminals firmly and avoid loose connections. Intermittent contact can create popping noises, reduce system reliability, and shorten the lifespan of each module.
Test each unit individually before linking to confirm proper response and amplitude. Gradually integrate multiple modules while monitoring impedance to ensure stable overall performance.
Selecting Compatible Speaker Impedances for Parallel Setup
Choose units with matching impedance ratings to prevent amplifier overload and uneven load distribution. Mixing high and low impedance modules can create voltage drops and inconsistent output levels.
Calculate total impedance before connecting multiple units using the formula 1/Rtotal = 1/R1 + 1/R2 + 1/R3 for three or more modules. This ensures the final load remains within amplifier specifications.
Consider the amplifier’s minimum load capacity and ensure the combined impedance does not fall below it. Operating below this limit can trigger overheating and reduce reliability over time.
Test new combinations gradually by connecting one unit at a time and measuring output voltage. Monitor for unexpected drops or distortion that may indicate incompatible ratings.
Account for frequency response variations when combining modules of slightly different impedances. Lower impedance units tend to draw more current, which may affect tonal balance if not carefully matched.
Label and document each module with its impedance and location in the setup. This allows for quick adjustments or replacements without recalculating the total load each time a component is added or removed.
