Install an infrared detector module paired with a 12V relay to automate illumination in hallways or garages. Using a PIR module rated for 5–12V ensures reliable activation within 6–8 meters and a 120-degree detection angle. Combine it with a standard SPDT relay to handle 60W bulbs without overloading the system.
Select resistors and capacitors carefully to stabilize the trigger mechanism. A 10kΩ pull-up resistor on the input pin and a 100µF capacitor across the power supply can reduce false activations from electrical noise, extending the lifespan of connected lamps.
Position the unit at 2–2.5 meters above floor level to maximize coverage while avoiding direct sunlight or heat sources. Ensure wiring uses 18–20 AWG cables for low-voltage connections and secure connections with screw terminals to prevent intermittent failures.
Test the system using adjustable delay settings from 5 seconds to 2 minutes. This allows lights to remain on only as long as necessary, saving energy while providing consistent illumination for entryways, staircases, or storage areas.

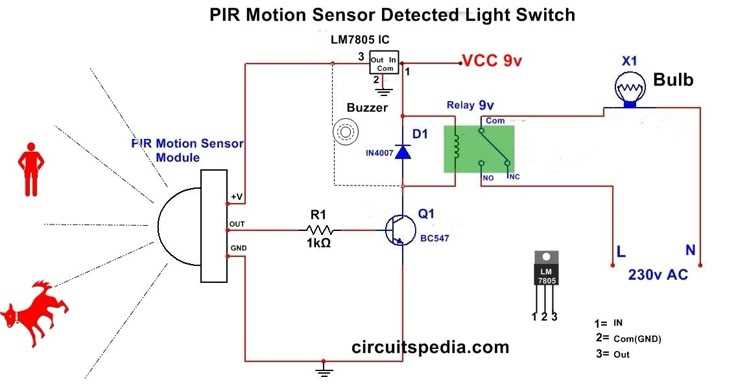

Complete Motion Sensor Circuit Diagram for Lighting with Wiring and Components
Use a 5V to 12V PIR module paired with a 12V SPDT relay to control standard LED or incandescent lamps up to 60W. Connect the module output directly to the relay coil, ensuring a flyback diode is installed to prevent voltage spikes.
Incorporate a 10kΩ pull-up resistor and a 100µF electrolytic capacitor across the power lines to stabilize the trigger input. This combination reduces false activations caused by electrical interference and improves response reliability.
Mount the detection unit at a height of 2.2 meters in a location free from direct sunlight or heat sources. Position the detector to cover a 120-degree angle and a 6–8 meter range, targeting high-traffic zones such as entryways or corridors.
Use 18–20 AWG wires with secure screw terminals for all low-voltage connections. Ensure that the relay connections are insulated and the bulbs are connected to a properly rated fuse to prevent overloads and accidental short circuits.
Adjust the delay time on the module between 5 seconds and 2 minutes to match the required duration of illumination. Testing with varying intervals helps optimize energy usage while keeping areas consistently lit during occupancy.
Choosing Components for a Motion Sensor Light Circuit
Select a detection module rated 5–12V with adjustable delay and sensitivity. Opt for a 120-degree field of view and a range of 6–8 meters. Pair it with an SPDT relay rated to handle at least 60W to control standard lamps safely.
Ensure supporting components stabilize performance:
- 10kΩ pull-up resistor on the input pin to prevent floating signals
- 100µF capacitor across the power lines to filter voltage spikes
- Flyback diode across the relay coil to avoid back EMF
- Fuse rated slightly above the maximum load to protect bulbs
Use proper wiring and connectors. 18–20 AWG insulated wires with screw terminals minimize connection failures. Test all components together before final mounting to confirm consistent activation and proper response time in targeted areas.
