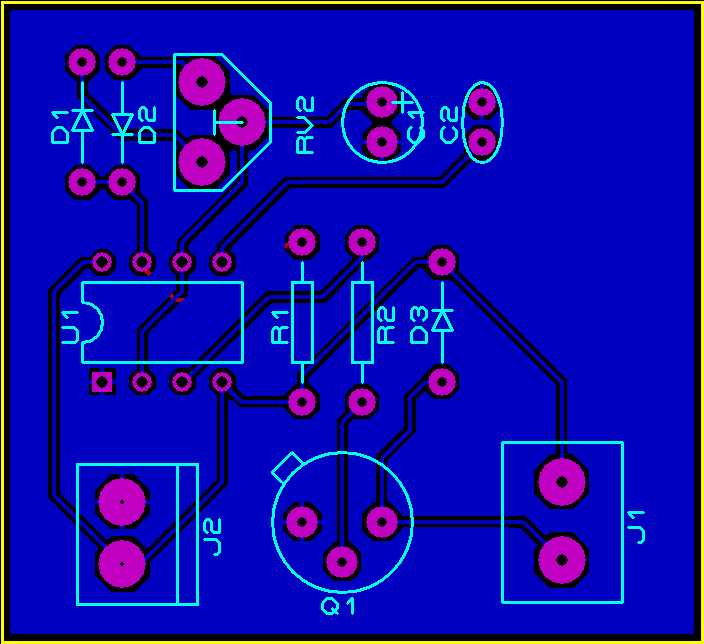

220V DC Motor Speed Control Circuit Design
Start by selecting a suitable variable resistor to control the output power. A potentiometer with the right resistance range will allow for precise adjustments. Ensure the potentiometer’s power rating matches the voltage and current requirements of the system.
Choose the right transistors or MOSFETs for switching the power. These components regulate the flow of electricity to the load. Ensure that the transistor’s voltage and current ratings exceed the system’s requirements for reliable performance.
Incorporate a diode for back EMF protection. When the load is disconnected or when switching happens, a diode helps to prevent voltage spikes that could damage the rest of the circuit. Choose a diode with a voltage rating higher than the maximum voltage in your setup.
Ensure proper grounding of the system to prevent electrical shocks and ensure the safety of the setup. The ground wire should be connected to a proper earth ground to avoid potential hazards in the event of a fault.
Test your design by powering it up and gradually adjusting the control mechanism. Check the output voltage and ensure it responds smoothly to changes. If there’s any erratic behavior, check the connections for loose wires or incorrect component placement.
Finally, troubleshoot any issues by using a multimeter to verify that the correct voltage is being supplied to the load. Inspect all components for overheating or abnormal behavior and replace faulty parts as necessary.
Components Required for Motor Speed Control Circuit
Start with a potentiometer that will allow you to vary the voltage supplied to the load. Choose one with an appropriate resistance range for your system. A 10k ohm potentiometer is often a good starting point for most applications, but ensure it matches your specific needs.
Key Components
- Transistors or MOSFETs: These act as switches to regulate current flow. Choose a component with a voltage rating higher than the system’s voltage and ensure it can handle the required current.
- Diodes: Use a diode to protect against back-EMF that could damage your components. Ensure the diode is rated for a higher voltage than the maximum in your setup.
- Resistors: Use resistors to limit the current where necessary, especially in the gate or base of the MOSFET or transistor. Ensure the resistor values suit the design of the circuit.
Don’t forget to include a proper heat sink for the transistors or MOSFETs. These components can generate a significant amount of heat, and a heat sink helps prevent them from overheating. Choose a heat sink that matches the power rating of your transistors.
