Connect the coil leads to the control voltage source matching the voltage rating printed on the relay body. Use color-coded conductors, typically red for hot and blue or white for neutral, to prevent misrouting and reduce inspection time.
Verify all load terminals before applying power. Each contact should align with the labeled output, ensuring that fan motors, compressors, or auxiliary devices receive uninterrupted current. Tighten screws to 14–16 inch-pounds to maintain a secure mechanical and electrical connection.
Run supply lines through grounded metallic conduits or approved flexible tubing. Maintain at least 1-inch spacing between high and low voltage conductors to reduce interference and heat buildup. Inspect insulation for nicks or abrasions, replacing any damaged segments before final assembly.
Test operation incrementally by energizing the coil and confirming load activation. Cycle the relay multiple times to check for consistent engagement without arcing or hesitation. Document conductor placement and terminal labels to simplify future troubleshooting and compliance checks.
HVAC Contactor Connection Guide
Connect the coil terminals to the control voltage source matching the rating printed on the relay. Use insulated conductors sized for the circuit load, typically 14 AWG for 15-amp circuits and 12 AWG for 20-amp circuits. Tighten screws to 14–16 inch-pounds to prevent arcing and overheating.
Inspect all load terminals before energizing. Ensure that each output aligns with the labeled device such as a fan motor, compressor, or auxiliary heater. Incorrect placement can lead to device malfunction or unsafe operation.
Route incoming and outgoing lines through metallic or approved flexible conduit. Maintain at least 1-inch spacing between high and low voltage conductors inside the panel. Examine insulation for cuts or abrasions and replace any damaged sections before final connection.
Label each conductor at both ends using heat-shrink markers or printed tags. Consistent color-coding for travelers, line, and load leads simplifies troubleshooting and prevents cross-connections during maintenance.
Test the relay incrementally by applying control voltage and observing device response. Cycle several times to verify full engagement without hesitation, arcing, or heating. Record anomalies and correct issues before full operation.
Loop grounding conductors through panel mounting screws and terminate under approved clamps. A continuous protective path reduces shock risk and protects the enclosure in case of short circuits or faults.
Document the complete setup with a labeled sketch or photograph. Include coil voltage, line input, and load connections. Proper records streamline inspections, troubleshooting, and verification that all connections follow safety standards.
Identifying Coil and Load Terminals for Proper Connection

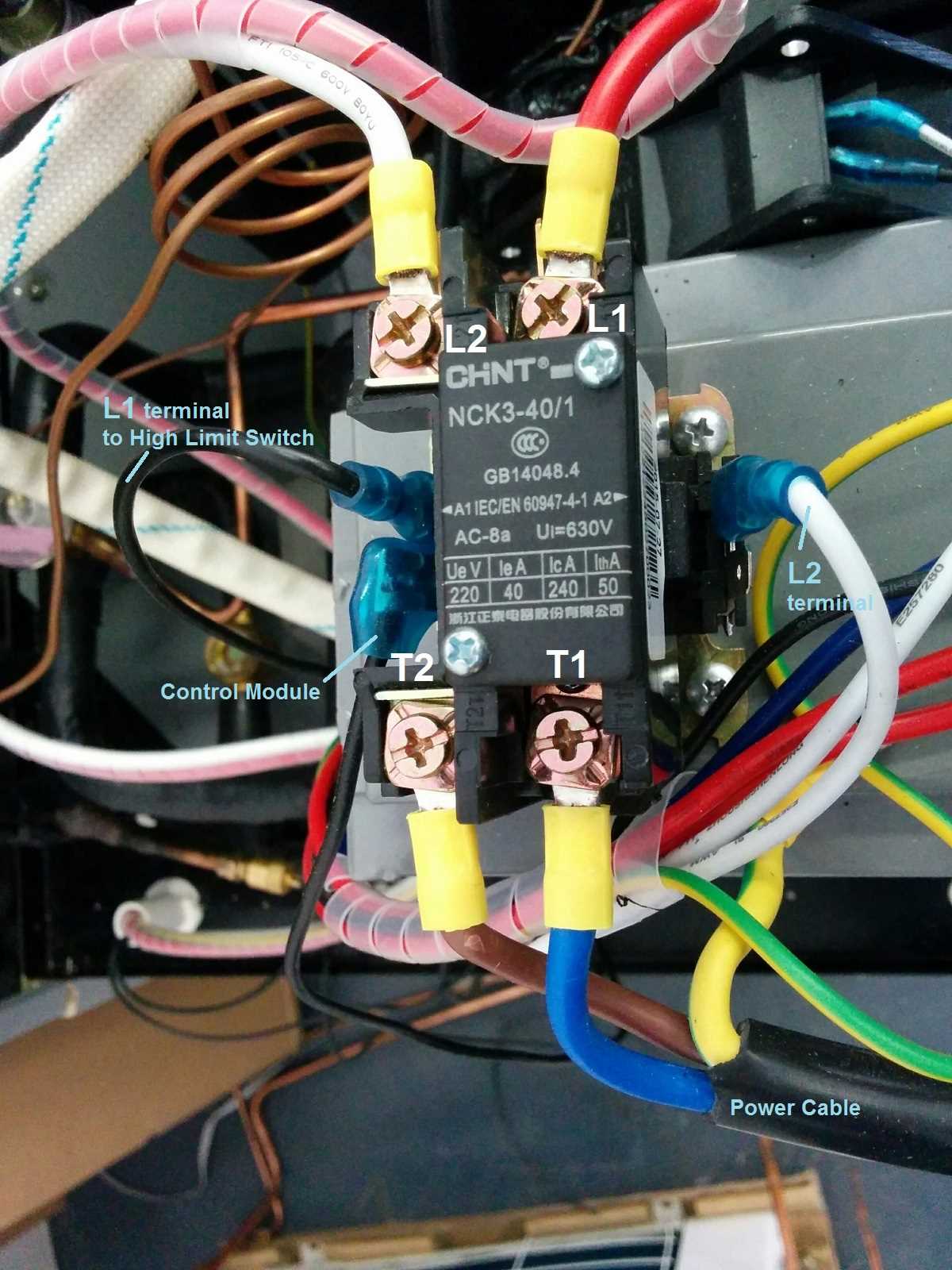

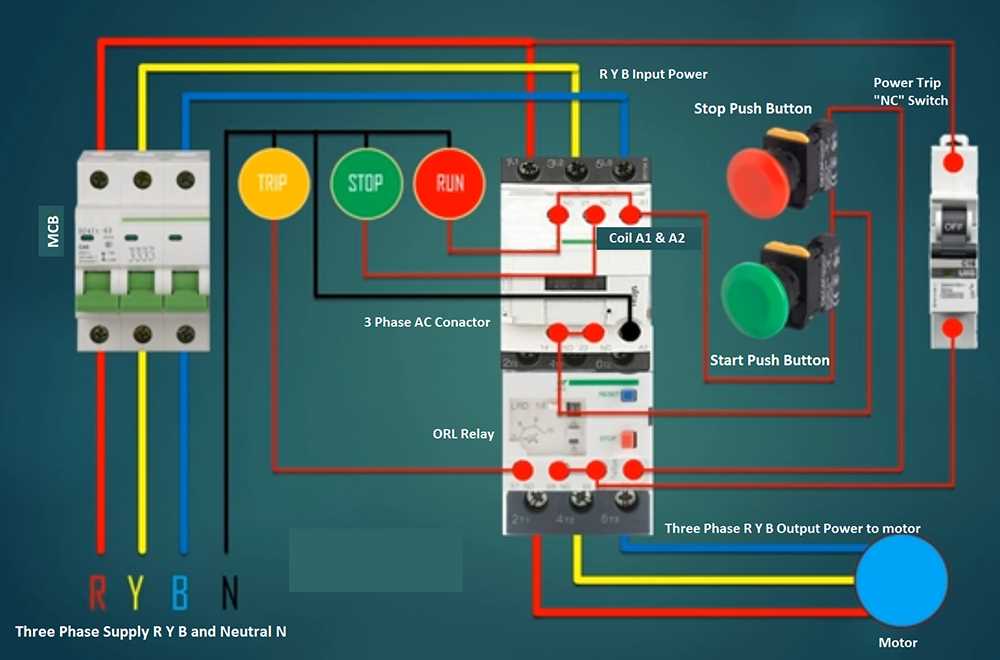

Start by locating the control coil terminals marked on the relay body. Typically, these are smaller screws labeled A1 and A2 or similar. Use a multimeter to confirm that these points match the intended control voltage before connecting any conductors.
Inspect the load terminals which handle the main current to the devices. These are usually larger screws or studs labeled L1, L2, T1, T2, or similar. Ensure the rating matches the connected motor, fan, or heating element to prevent overcurrent conditions.
Follow a consistent color-coding scheme for all conductors:
- Red or black for line inputs
- Blue or white for neutral return
- Green or bare for ground
This reduces the chance of cross-connections and simplifies troubleshooting later.
Test continuity between coil and load terminals using a multimeter set to ohms. Confirm that no shorts exist between control and power paths. Any reading above a few ohms on the coil terminals indicates a loose connection or damaged coil that must be replaced before operation.
Document terminal identification with a labeled photo or sketch. Note which terminal connects to control voltage and which to the load device. Clear records prevent errors during maintenance or future modifications and ensure safe operation under full load.
