To create a reliable electrical setup, start by carefully planning how power will be distributed throughout your living space. Identify the main panel location, which connects to the power grid, and ensure that it’s placed in a safe, accessible area. This is where the breaker system is installed to manage and control the flow of electricity.
Next, plan the routing for the wiring. Each room or area will require specific outlets, switches, and fixtures. Focus on the power needs of each space, considering high-demand areas like the kitchen or home office. Properly labeling each wire during installation helps prevent mistakes and makes future upgrades easier.
Pay attention to safety by including circuit breakers and fuses that protect the system from overloads. These components cut off power to circuits that draw too much current, preventing potential damage to appliances or the wiring itself. Double-check that grounding systems are correctly set up to protect against electrical shocks.
Wiring Overview for Residential Systems
To ensure safety and functionality, a well-organized setup for electrical lines is a must. It’s crucial to plan where outlets, switches, and lights will be placed. This includes selecting the appropriate wire sizes based on the expected load. Proper grounding is also a top priority to protect against potential faults or surges in the system.
Power Supply and Breakers
The main power source for any building is typically fed through a meter, with a main breaker to control the supply. A breaker panel then distributes power to various zones. It is important to place each breaker according to the sections it serves, such as lighting, kitchen appliances, or HVAC units. This ensures that in case of an issue, the correct section can be easily isolated.
Make sure that all devices are rated for the correct amperage, as using under-rated devices can result in overheating or fire hazards. For high-power appliances, such as stoves or water heaters, a dedicated line is often necessary to prevent overloading the common circuits.
Distribution of Electrical Lines
Each section of the premises, such as bedrooms, bathrooms, and kitchen, needs to be connected via separate lines. By doing this, the risk of overloading and power failure is reduced. Typically, the kitchen requires more outlets and higher amperage lines because of the power-hungry appliances, such as microwaves and refrigerators.

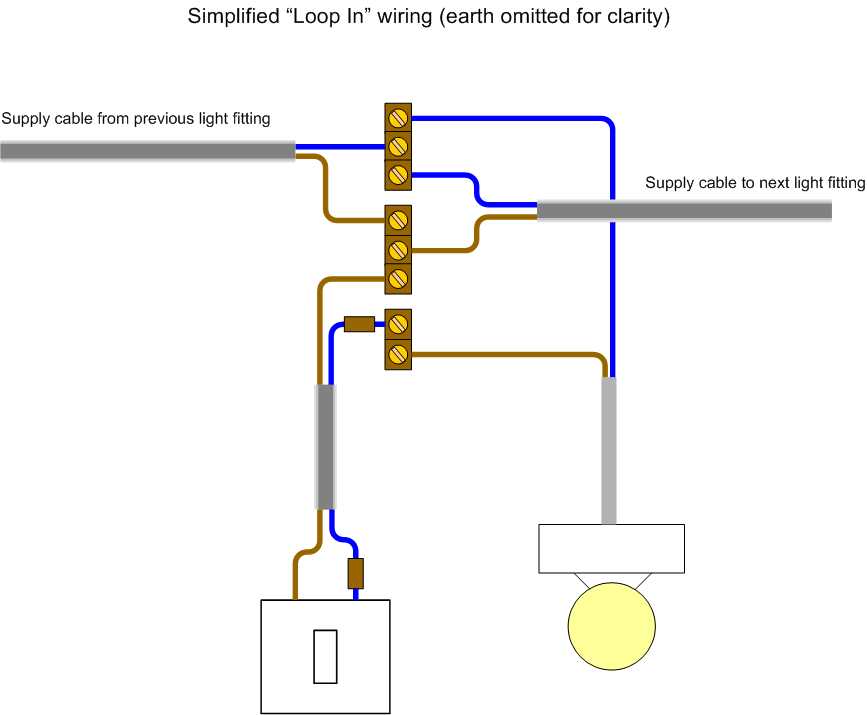

When wiring for lighting, it’s essential to consider the type of lighting being used. LED lights use much less power than incandescent, so this will affect the number of fixtures you can safely wire into a single line. Avoid overloading any single line by balancing the electrical load across multiple circuits.
Lastly, all installations must follow local electrical codes and regulations to prevent both legal issues and safety risks. It’s advisable to have a certified electrician verify or handle the final installations, especially when working with high voltage systems.
How to Plan and Design a Home Electrical Layout
Begin by assessing the power needs for each room. For example, kitchens and living rooms typically require more outlets and power compared to bedrooms. Understanding the specific requirements of appliances and fixtures will guide you in determining the right type of wiring and the number of outlets necessary in each area. This helps prevent overloading any single line and ensures smooth operation of devices.
Choose the Right Wire Size
Proper wire sizing is critical for safety. For most standard household applications, 12 AWG wire is used for general-purpose outlets, while 10 AWG may be necessary for heavy-duty appliances. Using a larger gauge wire for high-power devices such as air conditioning units or water heaters ensures that these devices get the appropriate amount of current without overheating the wire.
Each wire must be connected to the proper breaker size in the main panel to ensure that any overload will trip the breaker rather than cause a fire hazard. Avoid using undersized wires, as they increase the risk of overheating and electrical fires. Always match the wire size to the appliance’s power requirements.
Planning Lighting and Fixtures
When planning for lighting, consider the energy consumption of each fixture. LED lights are more energy-efficient and should be used wherever possible. Plan the layout to distribute the load evenly across circuits, particularly if there are multiple light fixtures in a single room. It’s also wise to install dedicated lines for large fixtures like chandeliers or ceiling fans to ensure that they do not overload any shared circuits.
Lastly, include appropriate safety measures, such as GFCI outlets in kitchens and bathrooms, where moisture may cause electrical hazards. Ensure that all installations meet local electrical code requirements, as improper wiring can result in penalties or unsafe conditions.
